Overview

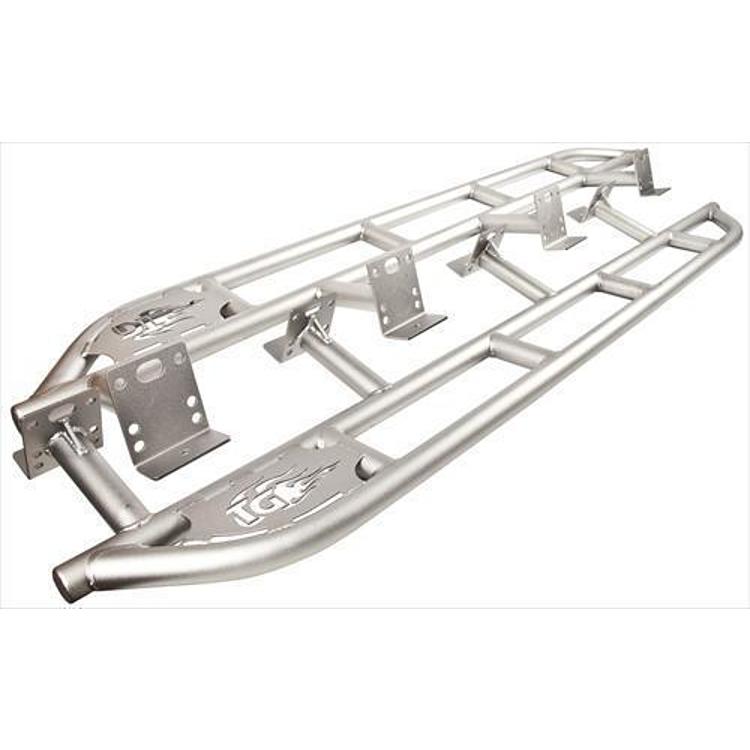

The Trail Gear Rock Slider Kit, part number 300145-KIT, is a pair of bare steel rock sliders for protecting the rocker panels of a Toyota. The kit is sold in pairs and lets a vehicle slide over or between rocks on hard trails with less body damage.
The sliders are built from 1 3/4 in OD x .120 wall 1035 DOM tubing. The tube’s wall thickness and steel grade are the main strength factors. The sliders can hold the vehicle’s weight, and a high-lift jack can be placed anywhere along them to reposition the rig or lift it for repairs.
Key features
- 1 3/4 in OD x .120 wall 1035 DOM tubing
- Bolt-on, direct fit installation
- No cutting or drilling required
- Mounting legs ship loose and can be placed in different positions
- Legs are pre-notched on one side and can be trimmed on the other
- Mounting legs are 11 1/4 in long and can serve as a step
- Sold in pairs
Rocker protection on hard trails
Rock sliders take the impact when a vehicle moves over rocks or ledges, so the rocker panels and body stay protected. Bare steel gives a strong, repairable barrier that can be dressed or welded if it is damaged. The legs anchor the slider to the frame, so their mounting points matter as much as the tube itself.
Bare steel needs care to resist rust. After trail use, wipe off mud and water, then keep a light coat of oil or a suitable rust inhibitor on the tubing. Check the legs and fasteners for loosening, and inspect the tube for dents that could pinch a rocker.
- Check mounting leg bolts after hard trail runs
- Touch up bare steel scratches promptly
- Inspect the slider tube for dents or bends
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 300145-KIT |
| UPC | 70000639685 |
| Product type | Rock slider kit, sold in pairs |
| Slider length | 78 in |
| Tubing | 1 3/4 in OD x .120 wall, 1035 DOM |
| Mounting legs | 11 1/4 in long, pre-notched on one side |
| Finish | Bare steel, shipped raw with no finish and lightly oiled |
| Installation type | Bolt-on, direct fit, no cutting or drilling required |
Vehicle fitment
Fitment for these sliders is not confirmed by model year. The kit is a direct-fit Toyota application with no cutting or drilling required.
Models, generations and body styles are unconfirmed for this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The mounting legs ship loose, so you attach them in the mounting positions that suit your frame. Each leg is pre-notched on one side and can be trimmed on the other if needed. Trail Gear says no cutting or drilling is required, but check each leg position before tightening fasteners.
What’s included
The kit includes the sliders and their mounting legs: six legs (three per side) with the 58 in and 67 in sliders, and eight legs (four per side) with the 78 in sliders. The kit is sold in pairs.
