Overview

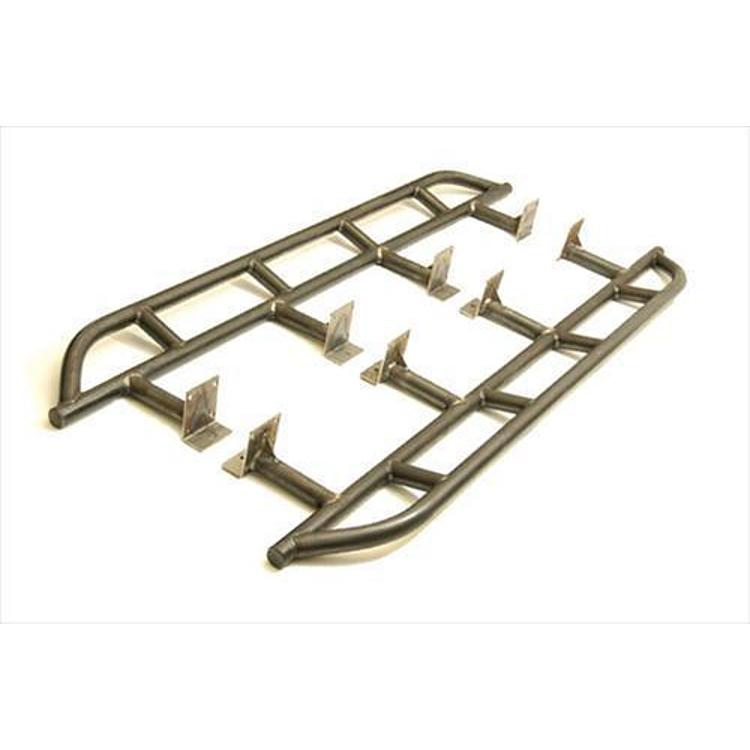

The Trail Gear 120022-1-KIT is a 78 in fully welded bare steel rock slider kit for 2005–2007 Tacoma Extra Cab and Double Cab pickups. It is not built for Access Cab models.
The sliders use 1 3/4 in x .120 in wall DOM tubing with four legs and gussets on each slider. They arrive as bare steel. Frame welding is required to mount the bars.
Key features
- 78 in long
- Bare steel, supplied raw
- 1 3/4 in x .120 in wall DOM tubing
- Four legs with gussets on each slider
- Fits 2005–2007 Tacoma Extra Cab and Double Cab models only.
Choosing a welded slider
A welded rock slider becomes a structural part of the vehicle, so it carries load from the frame rather than from bolts alone. That is useful for hard trail impacts but means the mounting points must be solid. Check the frame in the areas where the bars will attach and make sure there is no existing cracking or heavy corrosion before cutting or welding.
Many owners pair sliders with skid plates or a rear bumper when they add protection, since the rockers are not the only exposed area. Because bare steel rusts, plan to prime and paint the bars after fabrication, and recheck the welds after rough use. Look for hairline cracks at the leg joints and any movement at the frame connection.
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 120022-1-KIT |
| UPC | 70000621807 |
| Material | DOM steel tubing |
| Tubing size | 1 3/4 in x .120 in wall |
| Length | 78 in |
| Legs | 4 per slider, with gussets |
| Finish | Bare steel |
| Type | Tubular guard with tubular standoff |
| Installation type | Welding required |
| Fitment type | Direct fit |
Vehicle fitment
The kit is built for 2005–2007 Tacoma Extra Cab and Double Cab models and is not meant for Access Cab.
Verify fit against your Tacoma’s year, model and body style before buying.
Installation notes
Installation requires welding, so these sliders are not a simple bolt-on job. Have a qualified fabricator weld the frame connections and set the mounting position.
What’s included
Four legs with gussets on each slider come with the kit. Check the package contents against your installation before starting.
