Trail Gear Rock Assault Ram Steering Assist Kit – 130266-1-KIT

Trail Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear Rock Assault steering ram assist kit, part 130266-1-KIT
  • Fits 1984–1995 Toyota 4Runner and 1979–1995 Toyota Pickup
  • Includes ram with seals, rod ends, ram bracket, hoses and steering box fittings
  • Brackets formed from heavy-duty 1/4-inch plate steel

Description

Overview

The Trail Gear 130266-1-KIT is a Rock Assault steering ram assist kit for Toyota trucks. It is a hydraulic steering assist built around a steering ram, its mounting brackets and the fittings that connect it. It fits the 1984–1995 Toyota 4Runner and the 1979–1995 Toyota Pickup.

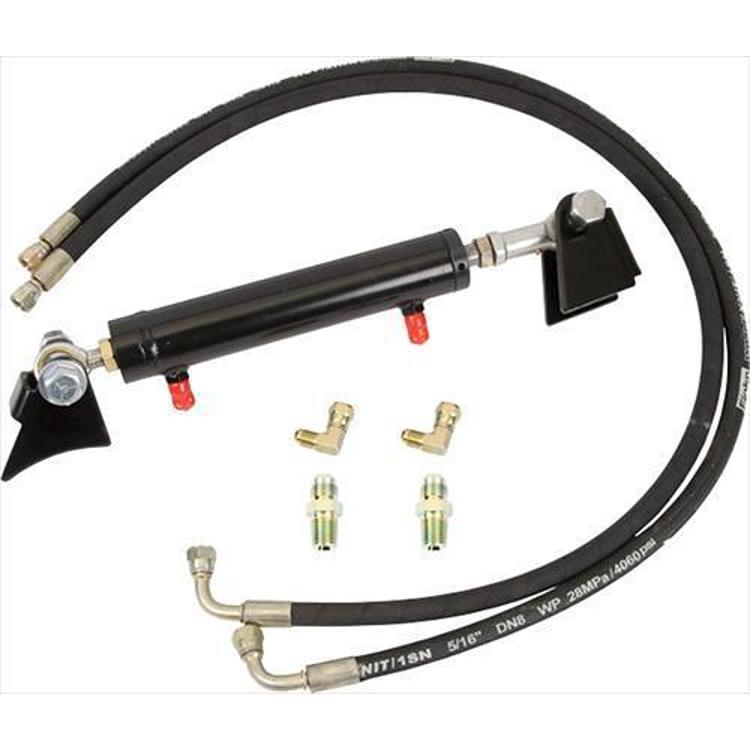

The kit includes the ram with seals, rod ends, a ram bracket, hydraulic hoses, JIC 90 degree elbows, steering box fittings and mounting hardware. The brackets are specially formed for installation, and the ram takes about one hour to install once the steering box has been tapped.

Key features

  • Ram with seals and rod ends included
  • Brackets formed from heavy-duty 1/4-inch plate steel
  • Ram bracket and mounting hardware included
  • Hoses and JIC 90 degree elbows for the hydraulic connections
  • Steering box fittings included
  • Installation takes about one hour once the steering box is tapped

Hydraulic supply and fluid

A steering ram only works as well as the hydraulic supply feeding it. The ram needs pressure from a working pump, a reservoir with the correct fluid level, and hoses free of kinks. Because this kit does not include a pump, reservoir or fluid, confirm those parts are already in place and in good condition before starting the installation.

Hydraulic assist systems are sensitive to air and contamination. After fitting the hoses and elbows, bleed air from the lines as the system’s procedure requires and watch the reservoir for foaming. Keep dirt out of open fittings during installation, and check every connection for seepage once the engine has run and the steering has been turned lock to lock.

  • Check pump output and reservoir level before fitting
  • Use the fluid type your steering system requires
  • Cap open lines and fittings during installation

Specifications

Brand Trail Gear
Part number 130266-1-KIT
UPC 70000621820
Category Hydraulic Steering Assist
Bracket material Heavy-duty 1/4-inch plate steel
Installation time About one hour after the steering box is tapped
Included hardware Ram with seals, rod ends, ram bracket, hoses, JIC 90 degree elbows, steering box fittings, mounting hardware

Vehicle fitment

The manufacturer fitment list names the 1984–1995 Toyota 4Runner (DLX, SR5) and the 1979–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo).

Model years after 1995 and other Toyota models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The steering box has to be tapped before the ram goes on, and Trail Gear puts the ram installation at about one hour after that step. Support the front end securely while working underneath the vehicle.

What’s included

Ram with seals, rod ends, ram bracket, hoses, JIC 90 degree elbows, steering box fittings and mounting hardware.

Not included: the kit lists no hydraulic pump, reservoir or fluid.

SKU: TGI130266-1-KIT Category:

Specification

Shipping weight 18.00 lbs
Package dimensions 19.00 × 13.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1984–1995DLX, SR5
Toyota Pickup1979–1995Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Trail Gear 130266-1-KIT fit a 1990 Toyota 4Runner?

Yes. It fits the 1984–1995 Toyota 4Runner, which includes 1990 models, in the DLX and SR5 trims. Confirm your vehicle's year, model and trim before ordering.

What does part number 130266-1-KIT include?

It includes the ram with seals, rod ends, a ram bracket, hoses, JIC 90 degree elbows, steering box fittings and mounting hardware. The brackets are formed from heavy-duty 1/4-inch plate steel.

Is a hydraulic pump included with this ram kit?

No. The contents do not include a hydraulic pump, reservoir or fluid, so those parts would need to be obtained separately if your system does not already have them.

How long does installation take?

It takes about one hour to install the ram once the steering box has been tapped. The brackets are formed for easier installation.

What should be checked in the hydraulic system before installing a ram?

Check that the pump, reservoir and fluid are in good condition and that the existing steering system is free of leaks. Because this kit does not include those parts, confirm they are already installed or obtain them before starting. Replace worn hoses while the system is open.
