Overview

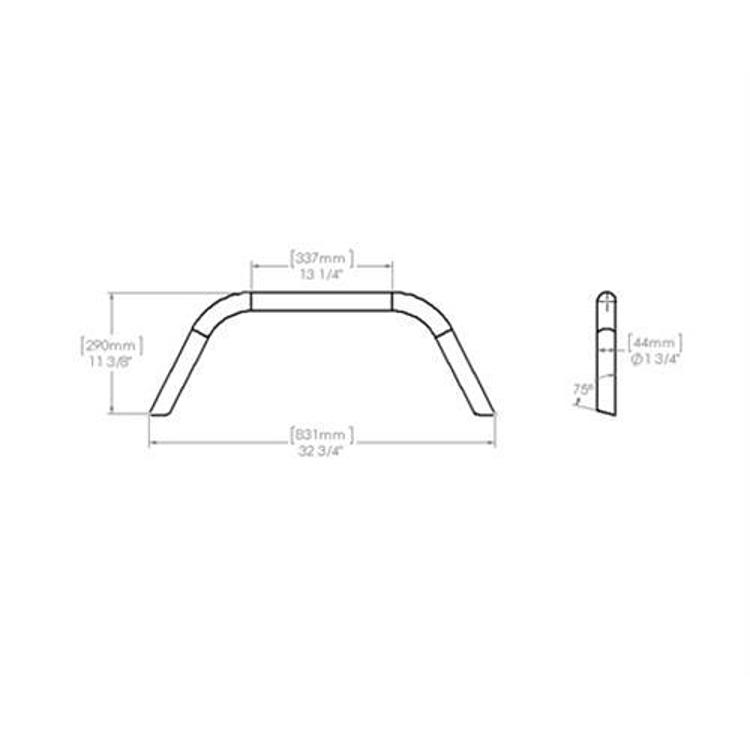

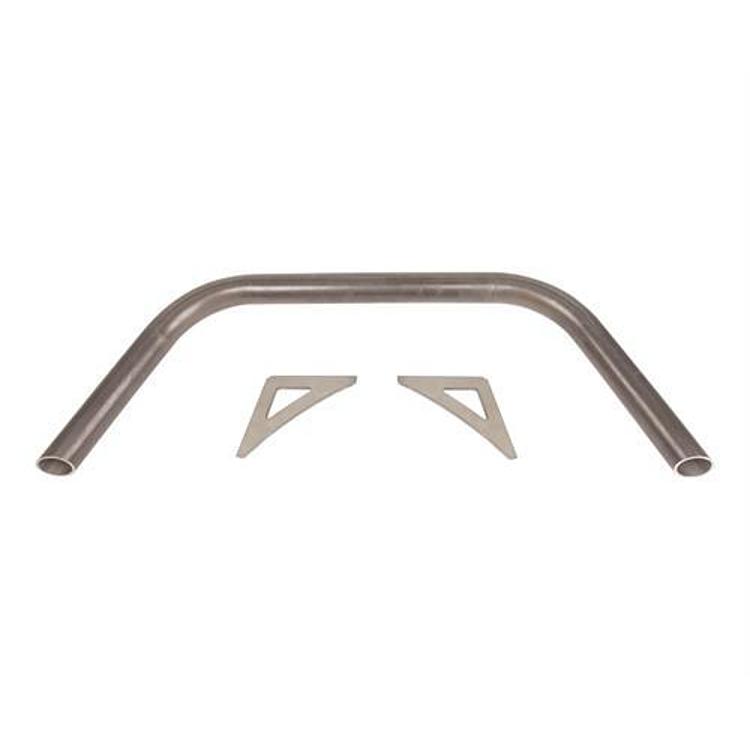

The Trail Gear Flat Top Weld-On Stinger, part number 303413-KIT, is a bare steel stinger made from 1.75-inch DOM tubing that is CNC bent. It is coped to fit and weld onto a flat surface.
Two 2.25-inch steel gussets are included for extra support. The stinger is for weld-on applications only, and no vehicle is named. Welding is required, so confirm the mounting surface before starting.
Key features
- 1.75-inch DOM CNC bent tubing
- Coped to weld onto a flat surface

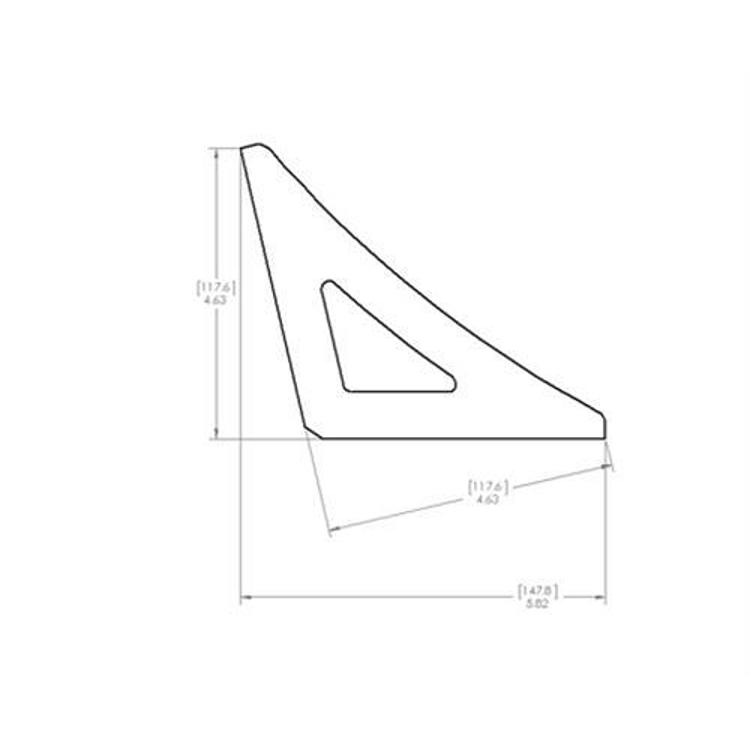

- Two 2.25-inch steel gussets included
- Weld-on application
- Bare steel finish
Welding and mounting prep
A weld-on stinger is only as good as its joint. Clean the mounting surface to bare metal before fitting, and cope the tube so it sits tight against the flat surface. Tack the stinger in place and check alignment before running a full bead, and use the gussets to brace the joint.
Welds on a bumper take shock loads from recovery and trail strikes, so inspect them after each hard session. Look for cracks at the weld toes and along the gusset edges. Repair cracks promptly, and do not rely on a cracked joint for recovery work.
- Grind the mounting surface to bare metal before welding
- Tack and check alignment before full welds
- Inspect weld toes and gusset edges after trail use
- Have a qualified welder handle repairs
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 303413-KIT |
| UPC | 700007372601 |
| Tubing | 1.75-inch DOM, CNC bent |
| Gussets | Two, 2.25-inch steel |
| Material | Steel |
| Finish | Bare |
| Installation method | Weld-on |
| Winch mount | Not included |
| Light mounts | Not included |
| D-ring mount | Not included |
Vehicle fitment
Trail Gear describes universal fit, but no vehicle year or model is named. Confirm the mounting surface and vehicle before ordering.
Installation notes
The stinger is made to be coped and welded onto a flat surface, so welding is required.
