Overview

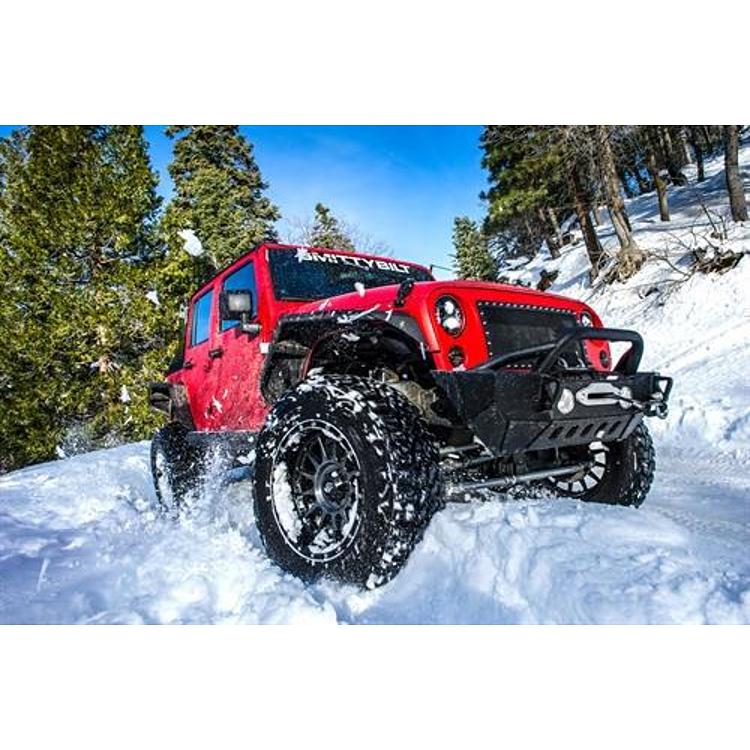

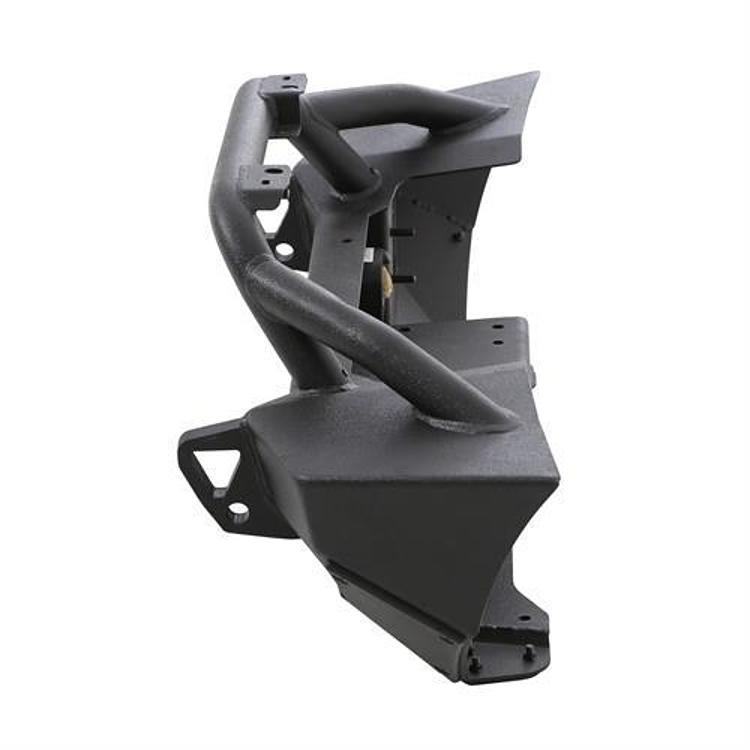

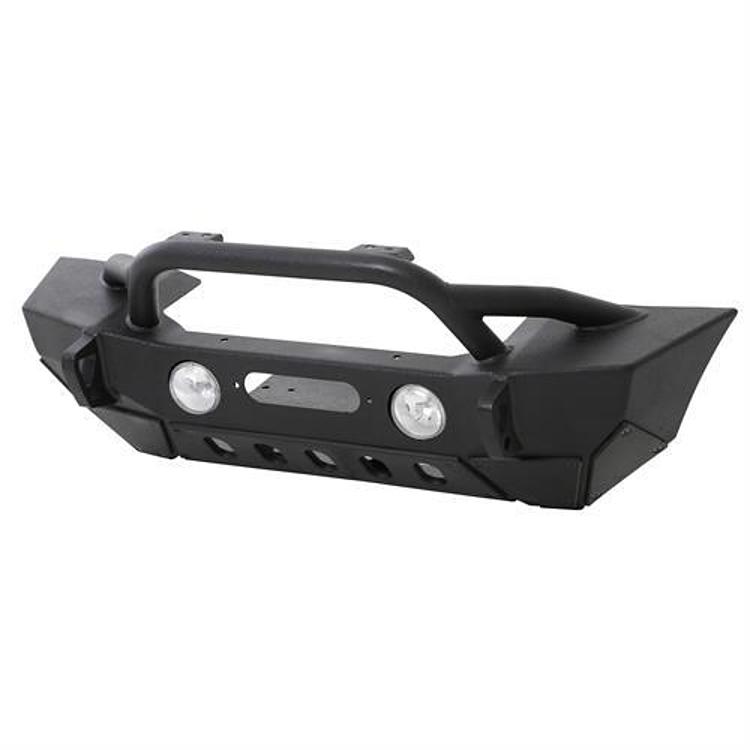

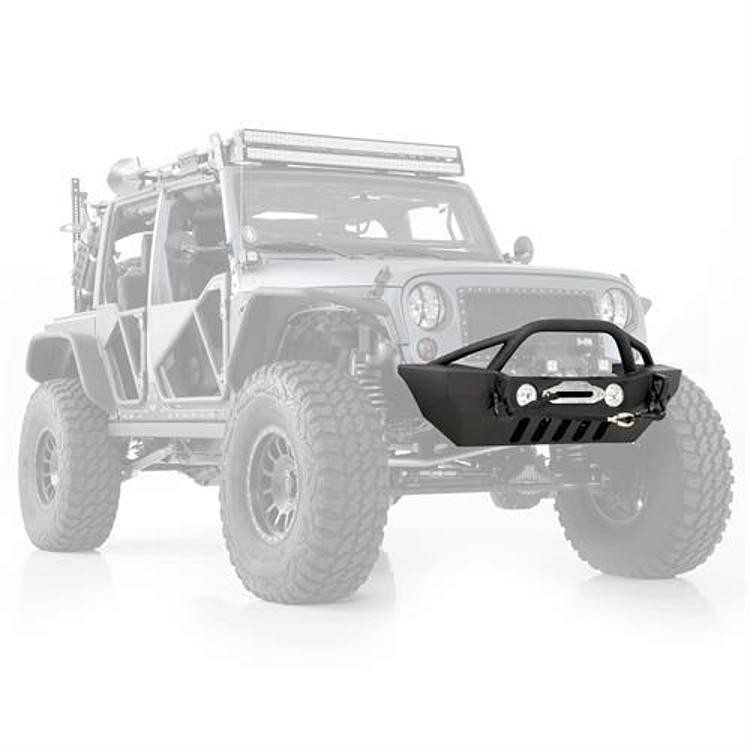

The Smittybilt XRC Gen2 front bumper with winch plate in textured black, part number 76807, is a steel Jeep Wrangler JK bumper for the 2007-2018 model years (the manufacturer list shows 2007-2016 and 2018). It is made from 3/16 inch cold rolled steel, robotically welded and finished in a two-stage textured matte black powder coat.

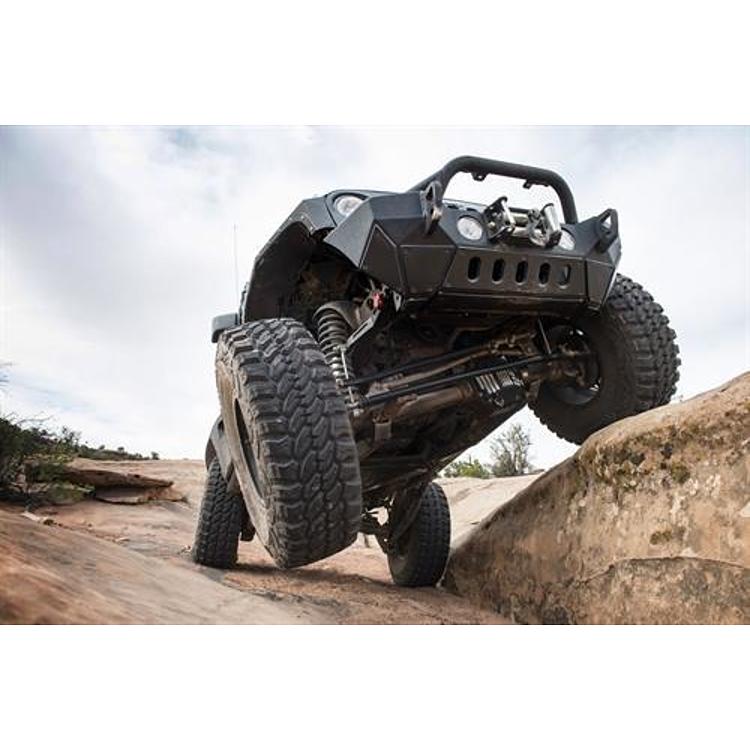

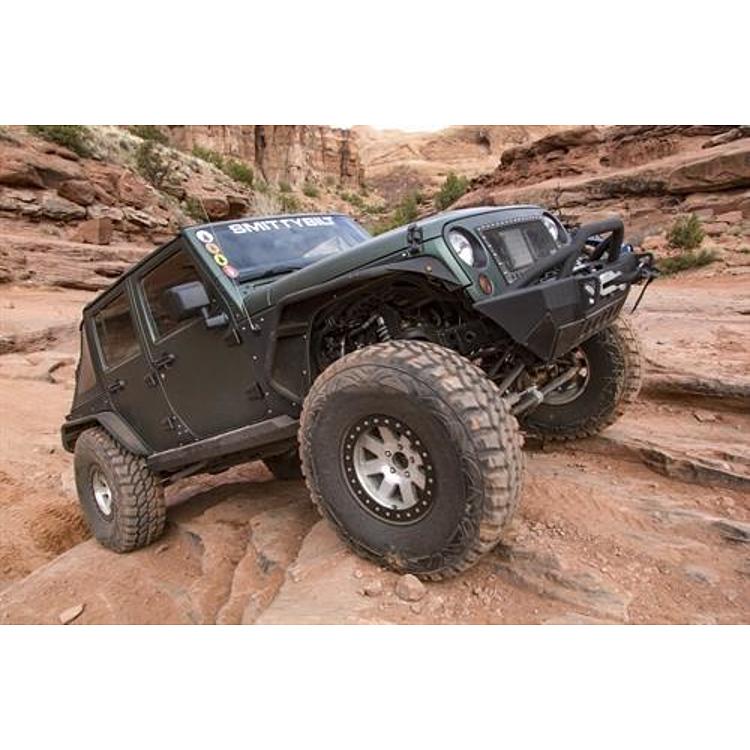

Smittybilt’s XRC Gen 2 Max design has a high approach angle and raised corners to maximize ground clearance, plus 1.75 inch kickers with a .120 wall that give fender-to-fender coverage. PP+TPO slip strips add 5/16 inch of damage protection for rock crawling. The bumper is winch ready for winches up to a 10,000 lb rating, has OE fog light ports and comes with fog light cutouts.
Key features
- Fits 2-door and 4-door Wrangler JK

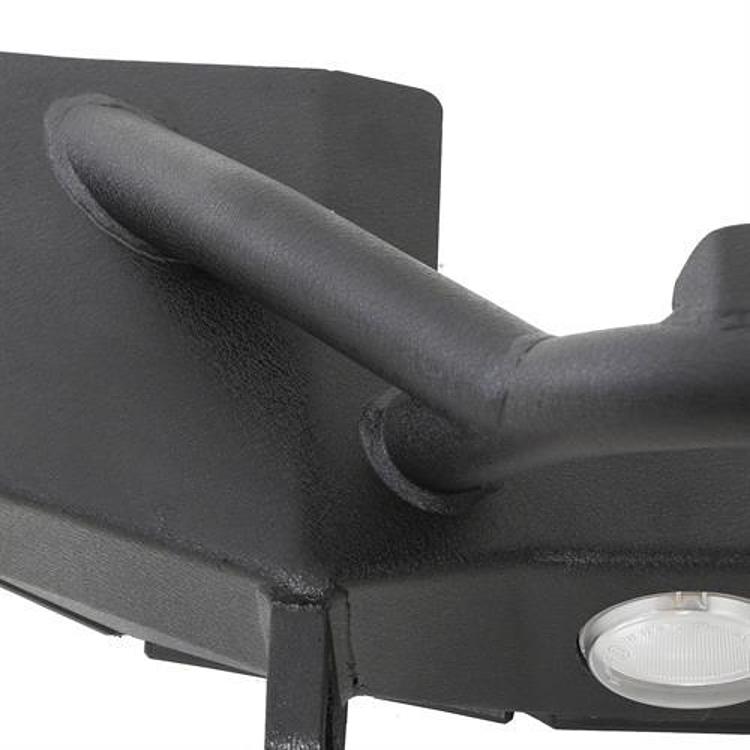

- 3/16 inch cold rolled steel, robotically welded
- Two-stage textured matte black powder coat
- 1.75 inch kickers for fender-to-fender coverage

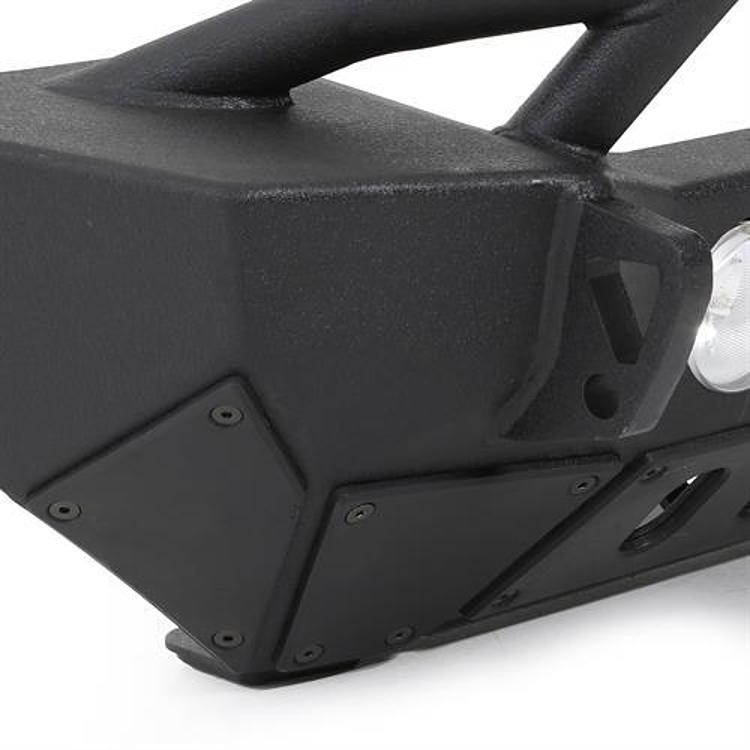

- PP+TPO slip strips for 5/16 inch of additional damage protection

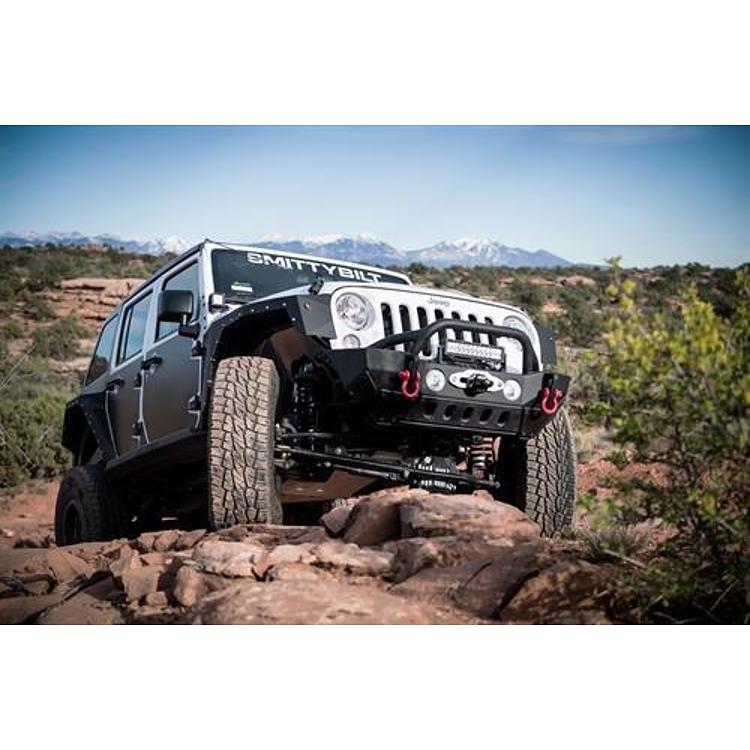

- Max solid D-ring and jack point mounts, welded inside and out

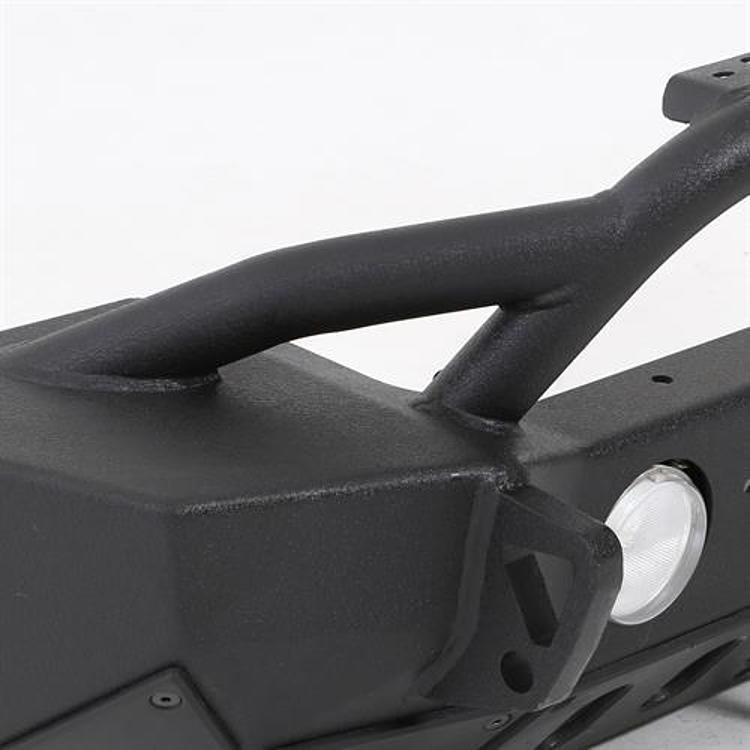

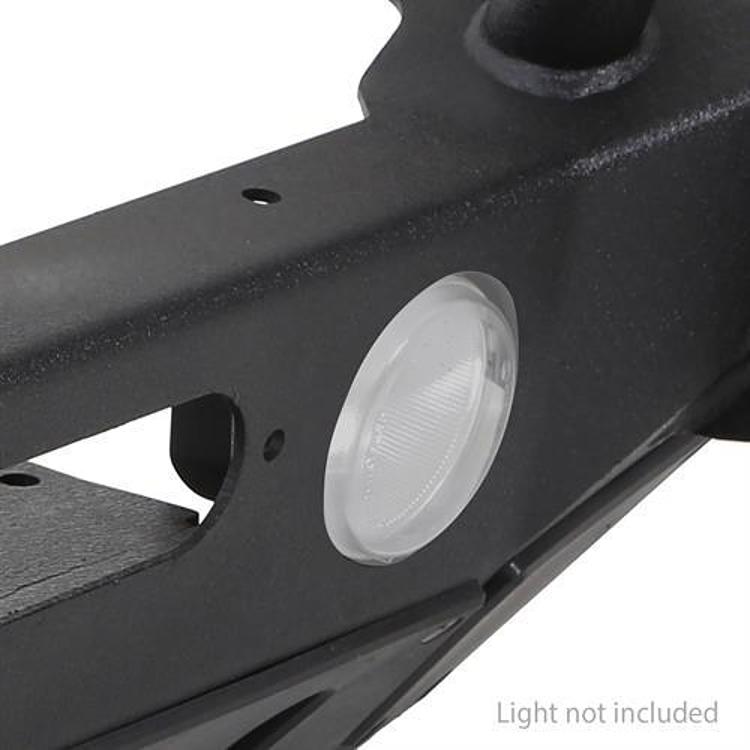

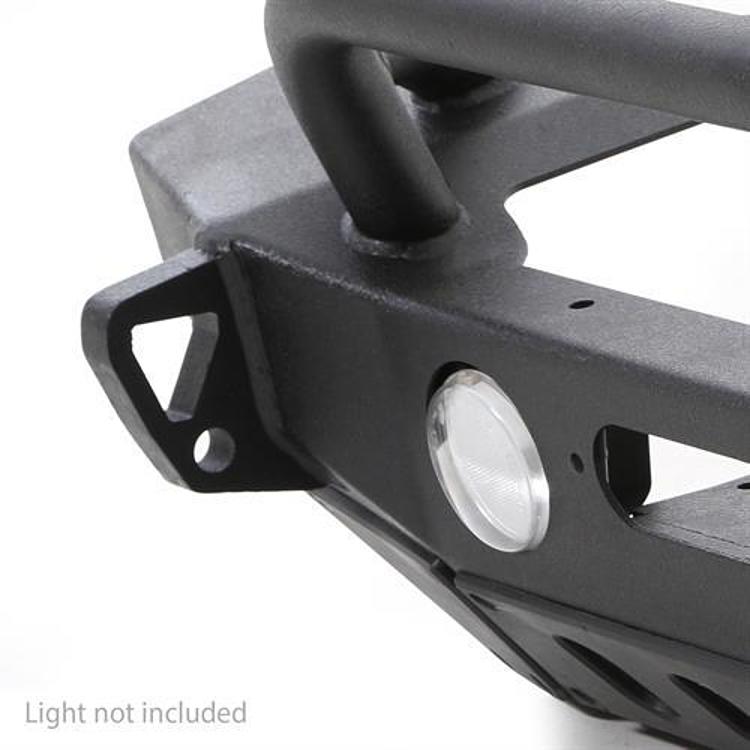

- OE fog light ports (lights not included)
- Winch ready, up to a 10,000 lb winch

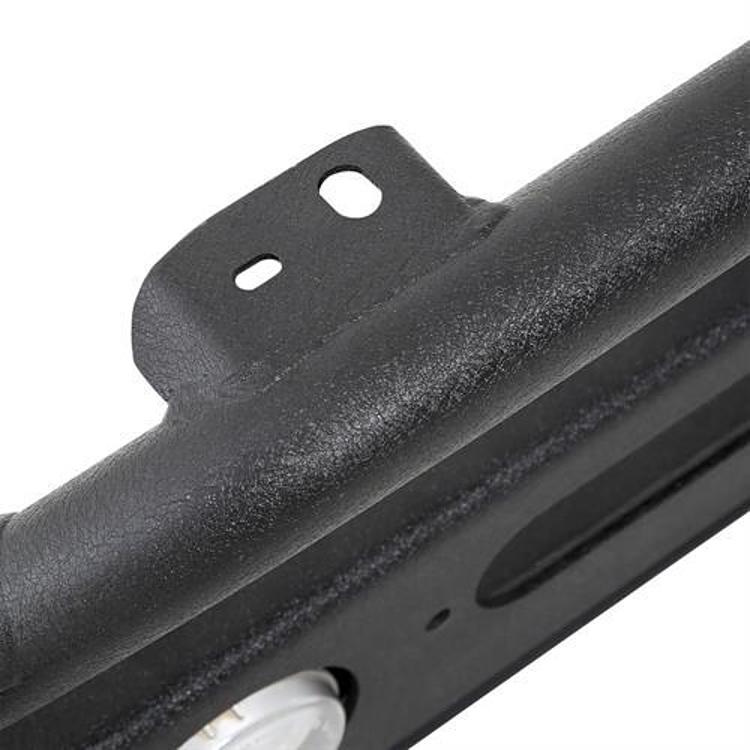

- Light tabs hold up to two 9 inch lights
Choosing a winch setup
A winch on a front bumper adds pulling power, but the bumper and the vehicle’s frame share the load when a winch is used. Matching the winch to the vehicle matters: a winch rated for the loads a Wrangler JK will see keeps stress on the mounts within reasonable limits. Consider the weight of the winch itself, since a heavy unit adds to the front axle load and can change steering feel at speed. A winch cable should be rated above the winch’s maximum pull, and a synthetic rope needs a fairlead that will not wear it through.
Before the first recovery, check that the winch mounting bolts are torqued to the specification in the installation instructions and inspect the bumper welds for cracks. After each use, look over the cable for fraying and the solenoid connections for corrosion. Keep the winch clear of the radiator and cooling fan when mounting, and make sure the electrical load is supported by a battery and wiring in good condition.
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 76807 |
| UPC | 631410124125 |
| Product type | Front bumper with winch plate, XRC Gen2 |
| Position | Front |
| Material | Cold rolled steel, 3/16 inch |
| Finish | Two-stage textured matte black powder coat |
| Winch capacity | Up to 10,000 lb |
| Winch mount | Included |
| D-ring mounts | Solid mounts welded inside and out; D-rings not included |
| Light mounts | Included, up to two 9 inch lights (lights not included) |
| Fog light ports | OE fog light ports and cutouts |
| Slip strips | PP+TPO, 5/16 inch additional protection |
| Warranty | Smittybilt Advantage Lifetime Warranty |
| Fit type | Direct fit |
Vehicle fitment

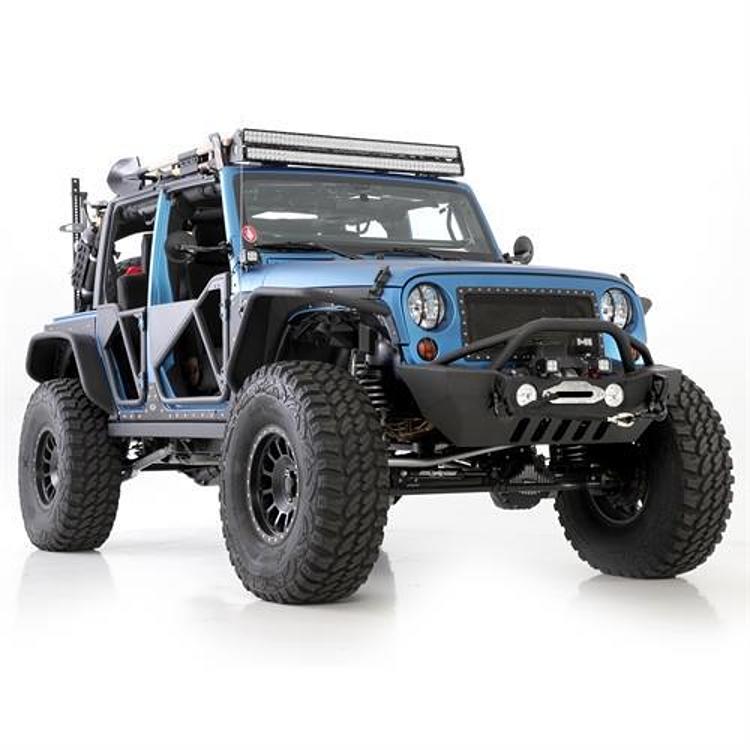

The manufacturer fitment list for 76807 covers the 2007-2016 and 2018 Jeep Wrangler (JK), and Smittybilt’s notes say 07-Current Wrangler JK, 2 and 4 Door.
It is built for the Jeep Wrangler JK, not the TJ, LJ or YJ, and not the 2019 and later JL. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes

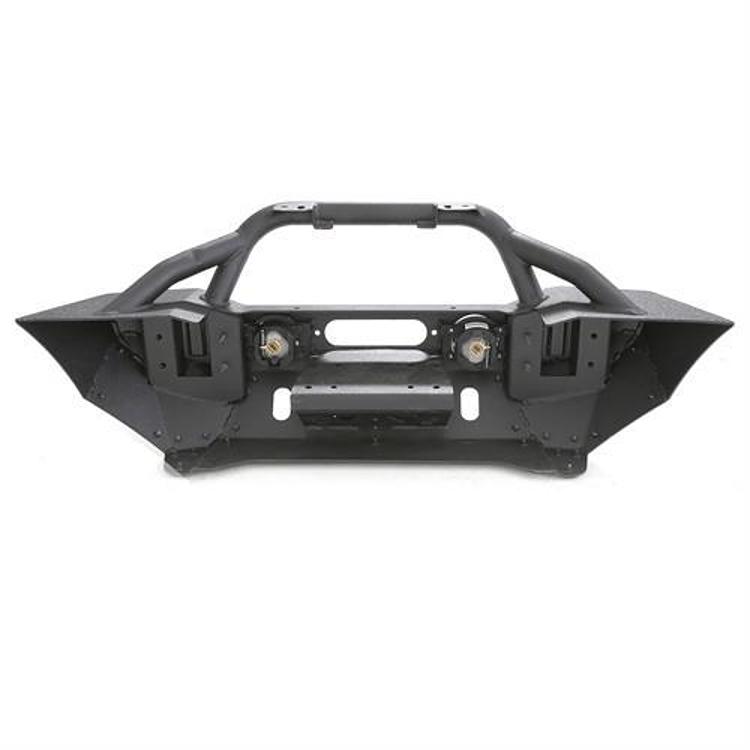

The bumper is winch ready, with a winch plate that supports winches up to a 10,000 lb rating. The OE fog light ports mean the factory fog lights have a place to go, but the lights themselves are not included. The D-rings that attach to the mounts are not included either.
What’s included
- XRC Gen2 front bumper with winch plate
- Solid D-ring and jack point mounts
- Light tabs
- PP+TPO slip strips
Not included: the winch, the D-rings, lights and fog lights.
