Overview

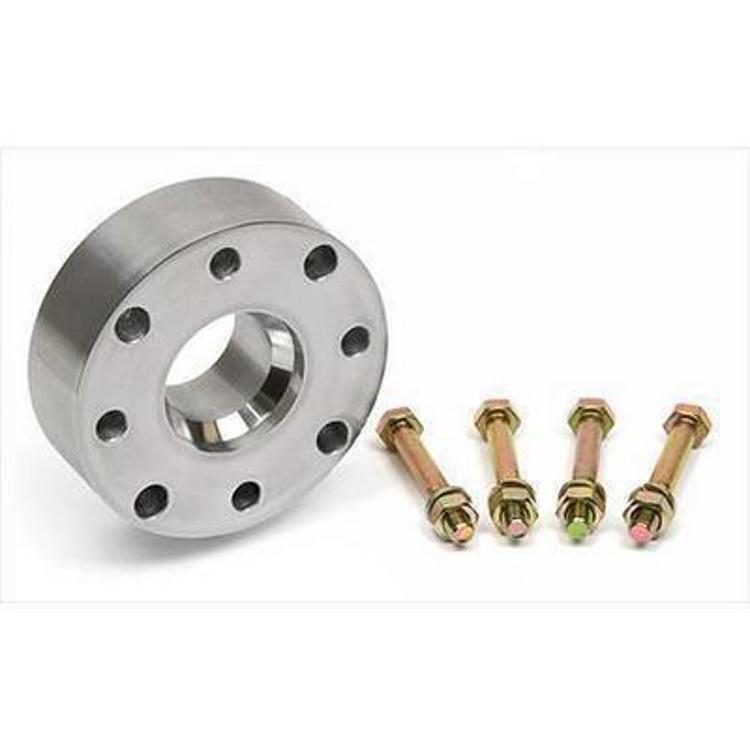

The Trail Gear 105081-3-KIT is a 1.5 in. aluminum driveline spacer kit with mounting hardware. The spacer is made from 6061 T6 aluminum and fits a front or rear shaft.
Each kit contains one spacer and mounting hardware. Match the spacer to your driveshaft setup before installing, and check fit against your vehicle’s year, model and trim.
Key features
- 1.5 in. length
- 6061 T6 aluminum construction
- Fits a front or rear shaft
- Includes one spacer and mounting hardware
Checking driveline angle after a spacer
A driveline spacer moves the driveshaft to a new position, which changes the angle at each joint. Angle changes affect how smoothly the joints rotate, so the angle should be measured once the spacer is in place and rechecked after the first few drives on rough ground. Spacers are usually fitted where a driveshaft’s mounting points have shifted or the shaft has been lengthened, and the right fix depends on the joint angles you measure.
Installation works best with the vehicle safely supported and the driveshaft fully free to move. Check that the spacer sits square, that the hardware is tightened evenly, and that the shaft clears surrounding parts through its full travel. Vibration at highway speed, a clunk when shifting, or grease at the joints can point to an angle problem or a loose fitting. Keep notes on the measured angles so later service work can be compared against them.
- Measure joint angles before and after fitting
- Tighten hardware evenly
- Recheck after the first few drives on rough ground
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 105081-3-KIT |
| UPC | 70000621224 |
| Length | 1.5 in. |
| Material | 6061 T6 aluminum |
| Included | Spacer (1) and mounting hardware |
| Shaft location | Front or rear |
Vehicle fitment
It fits a front or rear shaft. Match the kit to your driveshaft position before buying.
Measure your driveshaft length, then match your vehicle’s year, model and trim before ordering.
Installation notes
Driveline angles should be checked after fitting a spacer, since spacers change the driveshaft angle. Mount it with the hardware included in the kit.
What’s included
The kit includes one spacer and mounting hardware.
