Trail Gear Crossmember Kit – 120004-1-KIT

Trail Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear crossmember kit, part number 120004-1-KIT
  • Precision laser cut steel crossmember with slotted mounting holes
  • Made from 3/8 inch thick plate steel with tapered bolts included
  • Built for dual transfer case setups in Toyota Pickup and 4Runner models

Description

Overview

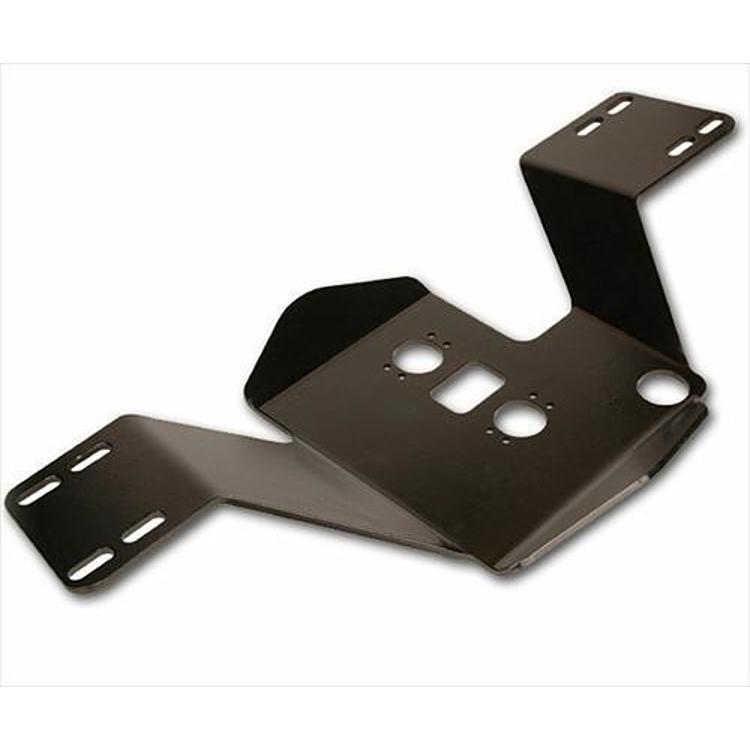

The Trail Gear crossmember kit, part number 120004-1-KIT, is a steel crossmember for running dual transfer cases in a Toyota Pickup or 4Runner. The crossmember moves the transfer case mounts, which is why a custom crossmember is needed for a dual transfer case setup.

The crossmember is built to handle heavy trail use and protect the transfer case mounts from trail damage. It is not made for automatic transmission applications.

Key features

  • Precision laser cut with slotted mounting holes for bolt-on installation
  • Made from 3/8 inch thick plate steel
  • Includes tapered bolts for a smooth bottom
  • Built to take serious trail punishment and protect the transfer case mounts

Dual transfer case clearance

A dual transfer case setup moves the rear output and changes where the driveline sits, so the crossmember does more than hold the case. Its position sets the angle of each driveshaft, and angle errors show up as vibration, wear on u-joints and driveline noise. Before you finalize the install, measure the gap between the case and the floor pan and check how the transfer case sits in the crossmember opening.

After the first few trail runs, re-check the crossmember bolts and the mount holes for movement. Look for cracked welds, bent brackets or rubbing on the skid and exhaust. Shift linkage and transfer case shift levers may need adjustment when the case position changes, so test every range before heavy use. Keep the driveline balanced if you add a lift or larger tires later.

Specifications

Brand Trail Gear
Part number 120004-1-KIT
UPC 70000621338
Material Plate steel, 3/8 inch thick
Construction Precision laser cut, slotted mounting holes
Hardware Tapered bolts included
Transmission 4 or 5 speed manual only
Application Dual transfer case

Vehicle fitment

It fits 1979-1995 Toyota Pickup and 4Runner models with 4 or 5 speed manual transmissions and dual transfer cases. Automatic transmission applications are not intended for this kit.

Other Toyota generations are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

It is a bolt-on part, and its slotted mounting holes let you position the crossmember before final tightening. Check transfer case and driveline clearance, including driveline angles, once both cases are mounted.

What’s included

Tapered bolts are included with the crossmember. Confirm the other mounting hardware you need before starting.

Not included: The transfer cases and transmission components the crossmember supports.

SKU: TGI120004-1-KIT Category:

Specification

Shipping weight 52.00 lbs
Package dimensions 44.50 × 20.50 × 4.50 in
brands

Questions & Answers

Does this crossmember fit a 1979-1995 Toyota Pickup or 4Runner?

It fits 1979-1995 Toyota Pickup and 4Runner models with 4 or 5 speed manual transmissions and dual transfer cases. Confirm your year, model and trim before ordering.

Will it work with an automatic transmission?

No. It is for 4 or 5 speed manual transmissions only and is not intended for automatic transmission applications. Check your transmission type before ordering.

Are the bolts included?

Yes. It includes tapered bolts for a smooth bottom. Other mounting hardware is not included, and the dual transfer cases must be sourced separately.

How do I know the driveline angles are right?

Measure the angle at each driveshaft with the vehicle at ride height and compare the readings after installation. Vibration at highway speed, rapid u-joint wear or a clicking sound on turns can point to a problem. Adjust the crossmember or driveline before extended driving.
