Trail Gear U-Bolt Flip Plate – 110023-1

Trail Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear part number 110023-1, a single U-bolt flip plate
  • Designed to raise ground clearance under the rig
  • Points the spring bolt up and out of the way of debris
  • Direct fit part; confirm spring and axle size

Description

Overview

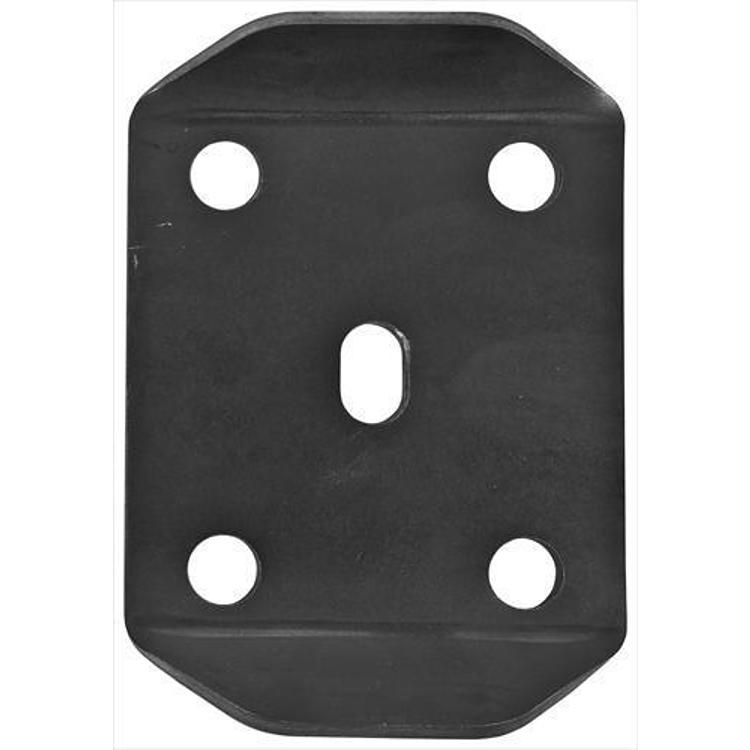

The Trail Gear 110023-1 is a single U-bolt flip plate for leaf springs. U-bolt flip plates raise ground clearance under the vehicle: the stock U-bolts face down and can catch rock and trail debris, while the flip plate points the spring bolt up and out of harm’s way. It also reduces exposure of the threaded section of the bolt. It is a direct fit part.

Key features

  • Single flip plate
  • Turns the spring bolt upward to clear rock and trail debris
  • Intended to increase ground clearance under the vehicle
  • Reduces exposure of the threaded section of the bolt

Choosing a flip plate

A flip plate changes how the U-bolts sit on the spring, so the main consideration is clearance around the axle and spring hardware. Measure the existing spring, axle tube and U-bolt diameter before ordering, and make sure the new position will not rub the tire or brake lines at full travel. Flip plates are often installed with a fresh set of U-bolts and nuts.

After installation, check the U-bolts and nuts for tightness after the first few drives, since the new position can settle the clamp. Inspect the threads for damage and replace any U-bolt that shows stretching or thread wear. Pairing the flip plate with fresh nuts keeps the clamp tight and helps the new setup hold up through rough trail use.

  • Measure the axle tube before ordering
  • Check tire and brake line clearance
  • Retighten after the first drives

Specifications

Brand Trail Gear
Part number 110023-1
UPC 70000621392
Type Single U-bolt flip plate
Fitment Direct fit (no vehicle named)

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering, and check spring, axle and U-bolt sizes against your current setup.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A flip plate changes where the U-bolt ends sit on the spring, so check bolt clearance to the axle and spring hardware after installing it.

What’s included

This is a single flip plate. Gather U-bolts, nuts or other hardware your installation requires before starting.

SKU: TGI110023-1 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 7.50 × 7.50 × 3.50 in
brands

Questions & Answers

What does the Trail Gear 110023-1 do?

It is a single U-bolt flip plate that points the spring bolt up and away from rocks and trail debris. It raises ground clearance under the vehicle and reduces exposure of the threaded section of the bolt.

Does the 110023-1 fit my truck or Jeep?

Confirm fit for your year, make, model and trim before ordering. Check your spring, axle and U-bolt sizes against your current setup.

Does the Trail Gear 110023-1 include U-bolts?

The kit is a single flip plate. Gather U-bolts, nuts and any other hardware your installation needs before you start, and confirm they match your axle.

How do I know if the U-bolts need replacing?

Look for stretched threads, flattened bends and rust that has pitted the metal. Any U-bolt that shows these signs should be replaced rather than reused. Fresh U-bolts and nuts help the clamp hold the spring securely.
