Throttle Down Kustoms Transmission and Transfer Case Crossmember – TDK-8795-0

Throttle Down Kustoms

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Throttle Down Kustoms TDK-8795-0 skid plate crossmember for the transmission and transfer case
  • Fits 1987–1995 Jeep Wrangler (YJ) and 1997 Jeep Wrangler (TJ)
  • Removable skid plate skin for oil changes without a jack or jack stand
  • Bolt-on shock mounts and pinion snubber bracket are not included

Description

Overview

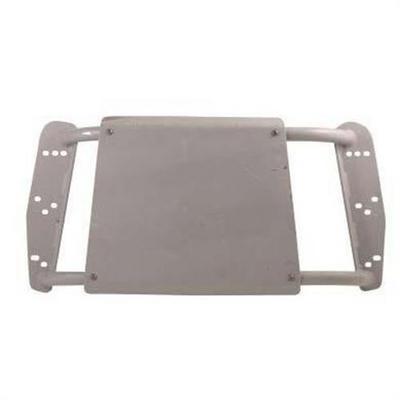

The Throttle Down Kustoms TDK-8795-0 is a transmission and transfer case crossmember with a skid plate for the 1987–1995 Jeep Wrangler (YJ) and the 1997 Jeep Wrangler (TJ). The skid plate guards the underside of the transmission and transfer case, and the crossmember is included with the kit.

The plates are laser cut to fit either the factory mounting locations or the Throttle Down Kustoms frame locations, which the company describes as having the same specifications. The skid plate skin can be removed, which gives access to the transmission and transfer case for oil changes and other service without a jack or jack stand holding the transmission up.

Key features

  • Skid plates built from 1-1/2 inch round tubing
  • 3/16 inch mounting plates and 3/16 inch skid plate skin
  • Laser cut to fit factory mounting locations or Throttle Down Kustoms frame locations
  • Removable skid plate skin for access to the transmission and transfer case
  • Direct fit designation for the listed Wrangler years

Skid plates and trail damage

A transmission and transfer case skid plate sits low under the drivetrain, so it takes the hits from rocks, stumps and ruts that would otherwise reach the oil pans and cases. Its job is to deflect those impacts, which means the mounting points carry the load every time something strikes it. After a hard hit, the welds, mounting plates and skin should be looked at before the next trip.

A crossmember also sets the position of the transmission and transfer case, which affects driveline angles. If a lift or different mounts are added later, the driveshaft angles should be checked again. Aftermarket crossmembers are a common upgrade on older Wrangler frames, so compare mounting holes carefully before fitting.

  • Check frame mount holes for cracks
  • Look for skin dents that press toward the transmission or case
  • Re-torque mounting hardware after the first trail runs
  • Keep the skin seal intact to keep mud out

Specifications

Brand Throttle Down Kustoms
Part number TDK-8795-0
Tubing 1-1/2 inch round, .120 wall
Mounting plate thickness 3/16 inch
Skid plate skin thickness 3/16 inch
Included Crossmember
Fitment type Direct fit

Vehicle fitment

It fits the 1987–1995 Jeep Wrangler (YJ) and the 1997 Jeep Wrangler (TJ).

Confirm fit for your vehicle’s year, model and trim before ordering, especially for Wrangler years and models outside the YJ and TJ listed above.

What’s included

The kit includes the crossmember with its skid plates.

Not included: bolt-on shock mounts and the pinion snubber bracket.

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997SE, Sahara, Sport
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Throttle Down Kustoms TDK-8795-0 fit a Jeep Wrangler YJ?

Yes. It fits the 1987 through 1995 Jeep Wrangler (YJ). The plates are laser cut to fit either the factory mounting locations or the Throttle Down Kustoms frame locations, which share the same specifications. Confirm your vehicle's year, model and trim before ordering.

Are the shock mounts and pinion snubber bracket included?

No. The crossmember is included, but the bolt-on shock mounts and the pinion snubber bracket are not part of the kit, so get them separately if your build uses them.

Can the skid plate skin be removed for service?

Yes. The skin is removable from the skid plate. With it off, the transmission and transfer case are accessible for oil changes and other maintenance, and no jack or jack stand is needed to hold the transmission up.

What material size is used for the skid plates?

The skid plates are built from 1-1/2 inch round tubing, with 3/16 inch mounting plates and a 3/16 inch skid plate skin. The mounting plates and skin are laser cut so the plates line up with the vehicle's mounting locations.

Do skid plates need inspection after trail use?

Yes. Check the crossmember welds, mounting plates and skid skin after hard impacts. Dents that bend the skin toward the transmission or transfer case should be straightened, or the plate replaced.

Will a crossmember change the driveline angles?

It can. Moving the transmission or transfer case mounts changes driveline angles, so check the driveshaft angles after any crossmember install and recheck if you add a lift.
