Overview
The Trail Gear 110037-1-KIT is a rear leaf spring lift that uses 56-inch long travel springs and 12-inch Bilstein shocks. It is a rear kit only, with a lift height range of 3 to 4.99 inches. The long springs and shocks are designed to add flexibility on the trail.
Key features
- 56-inch long travel rear leaf springs
- 12-inch Bilstein shocks
- Greasable rear shackles
- Greasable spring bolts and bushings
- Extended brake line
Rear leaf spring upgrades
Leaf springs control the rear axle’s position, so a longer spring changes axle wrap, pinion angle and brake hose slack. A lift like this one also changes how the rear sits under load, which is why the rear end should be checked after the first drive. Long springs often flex more on uneven ground, which is the reason many off-road setups use them.
Greasable shackles and spring bolts make it easier to keep the suspension moving freely. Grease them at regular intervals, especially after washing the truck or running in mud, since dry bushings wear quickly. Check the U-bolts for tightness after the first few trail outings.
- Inspect the extended brake line for kinks after installation
- Check spring bushings and shackles for play
- Re-torque U-bolts after the first trail runs
- Watch for wheel hop under hard acceleration
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 110037-1-KIT |
| UPC | 70000621706 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Rear kit only |
| Rear lift method | Leaf springs |
| Leaf spring length | 56 inches |
| Shocks | 12-inch Bilstein, included |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit kit for rear leaf spring applications. Check the vehicle year, model and trim before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit includes a U-bolt flip kit and an extended brake line, so the brake line should be checked when the rear springs are changed. Driveline angles should be measured after installation.

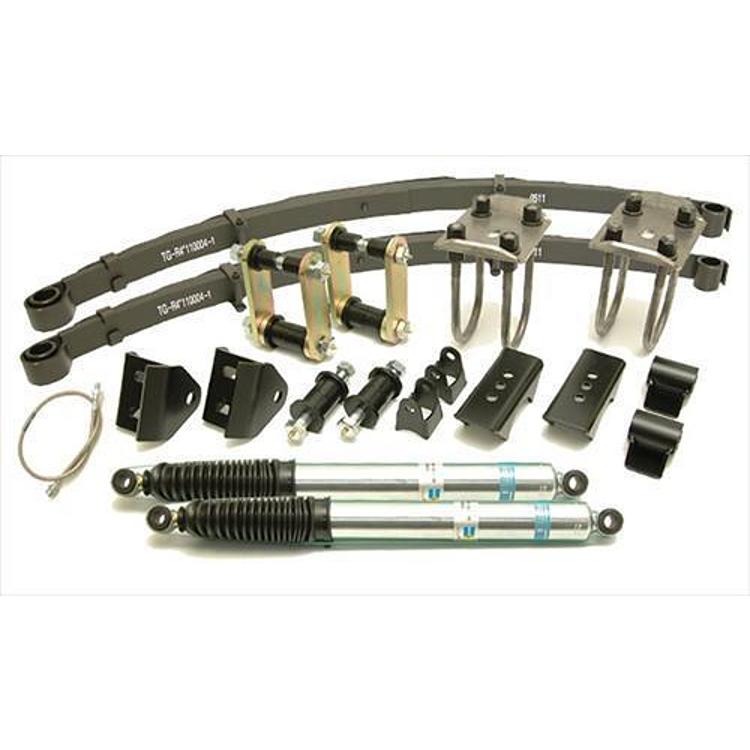

What’s included
- 56-inch long travel rear leaf springs
- Welded rear spring hangers
- Greasable 5-inch rear shackles
- 12-inch Bilstein shocks and shock mounts
- U-bolt flip kit and extended brake line
- Spring perches and greasable spring bolts and bushings
- Instructions
