Overview
The Trail Gear 110034-1-KIT is a rear leaf spring lift kit for 1979–1988 Toyota pickups and 1984–1988 Toyota 4Runner models in the DLX and SR5 trims. It raises the rear of the truck 3 to 4.99 inches with 56-inch long travel leaf springs, and it adds 12-inch Bilstein shocks for more suspension travel on rough trails. Trail Gear designs this rear kit to match its front IFS Eliminator and classic lift kits.
Key features
- 56-inch long rear leaf springs for extra flex and travel
- Welded rear spring hangers and rear shackle mounts
- Greasable 5-inch rear shackles with greasable spring bolts and bushings
- 12-inch Bilstein shocks with shock mounts
- U-bolt flip kit, extended brake line and spring perches
Rear suspension on rough trails
Leaf springs with longer travel let the rear axle articulate over uneven ground, which helps tires stay in contact on ruts and washouts. The shocks control how quickly that movement settles, so a shock with more travel can keep the rear end from bouncing on washboard roads. Because the rear is the part of the truck that carries the load, the springs and mounts take most of the strain on a trail.
Greasable shackles and spring bolts make routine service simpler, but they need regular attention to keep the joints moving freely. Dust and water work into the bushings, so greasing after water crossings or dusty days helps. Check the spring hangers and shackle mounts for cracks around the welds, and look for uneven sag between the left and right springs.
- Grease shackles and spring bolts on a regular schedule
- Look for cracks at spring hangers and mounts
- Recheck U-bolt torque after the first trail runs
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 110034-1-KIT |
| UPC | 70000621703 |
| Suspension type | Rear kit only |
| Rear lift method | Leaf springs |
| Lift height range | 3 to 4.99 inches |
| Leaf spring length | 56 inches |
| Shackles | Greasable, 5 inches |
| Shocks | 12-inch Bilstein, included |
| Position | Rear |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1984–1988 Toyota 4Runner in DLX and SR5 trims and the 1979–1988 Toyota Pickup, including Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo versions. These are the vehicles this rear kit is confirmed for.
The kit does not cover the front of the truck or later Toyota generations outside the years above. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear spring hangers come pre-welded and the kit ships with instructions, so no custom fabrication is needed for the spring mounts. Because the new springs change rear axle position and driveline angle, have the driveline angles checked after installation.

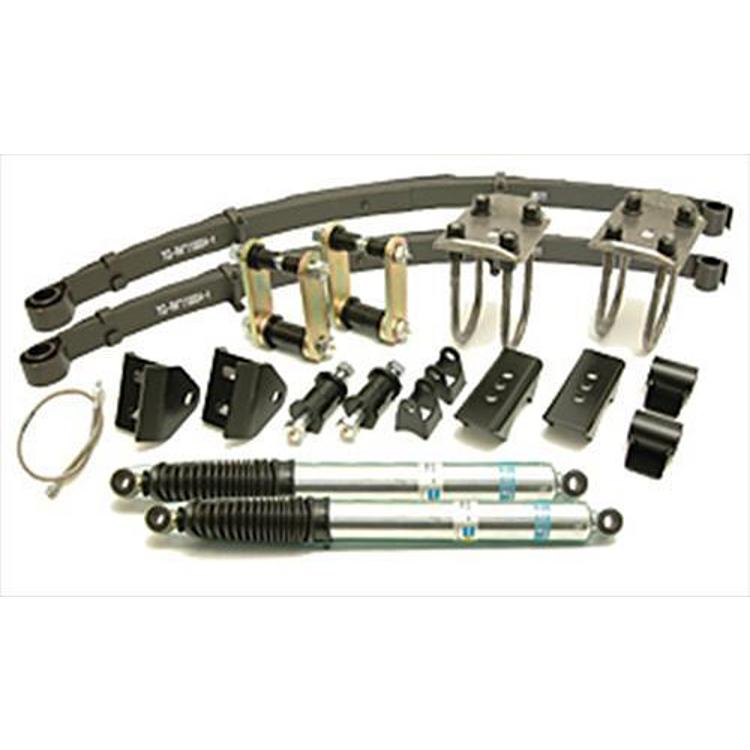

What’s included
- 56-inch long rear leaf springs
- Welded rear spring hangers and rear shackle mounts
- Greasable 5-inch rear shackles
- 12-inch Bilstein shocks and shock mounts
- U-bolt flip kit and extended brake line
- Spring perches, greasable spring bolts and bushings
- Instructions
