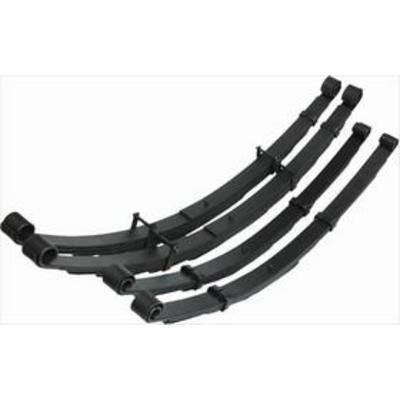

Trail Gear 3″ Rear Lift Super Flex Leaf Springs – 110016-1-KIT

Trail Gear

Shop Toyota Pickup Leaf Springs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear 3 inch lift leaf springs as a pair with polyurethane bushings
  • Fits 1979–1995 Toyota Pickup and 1985–1995 4Runner
  • Fits 1995–2004 Toyota Tacoma
  • Spring rate 235 lbs per inch, seven leaves plus a torque leaf

Description

Overview

The Trail Gear 3 inch rear lift Super Flex leaf spring kit (part number TGI110016-1-KIT) is a pair of rear springs with polyurethane bushings. It fits the 1979–1995 Toyota Pickup, the 1985–1995 Toyota 4Runner and the 1995–2004 Toyota Tacoma, with a lift height range of 0 to 4.99 inches.

The springs use a full military wrap on the front and a 1/4 wrap on the rear. Each spring has a rate of 235 lbs per inch and a leaf pack of seven leaves plus a special torque leaf to reduce axle wrap. The springs are 56 5/8 inches long along the top leaf.

Key features

  • 3 inch rear lift
  • Pair of springs
  • Polyurethane bushings included
  • Full military wrap front, 1/4 wrap rear
  • Spring rate 235 lbs per inch
  • Seven leaves plus a special torque leaf

Before fitting longer springs

Leaf springs locate the axle and carry the load, so a longer pack changes how the rear sits and how the axle moves. Military wrap at the front eye and a shorter wrap at the rear help the springs flex in a controlled way, while the torque leaf limits axle wrap under hard acceleration and braking. Polyurethane bushings resist wear better than rubber in the eyes and shackles, but they still need periodic checks for cracks, flattening and squeaks.

Before installation, inspect the shackles, U-bolts and mounting hardware, and replace anything worn or bent. Longer springs can change the angle of the driveshaft and the length of the brake lines, so measure both after the install. Plan on re-checking the rear alignment and the tire rub at full articulation once the new springs have settled.

  • Inspect shackles and spring eyes for play
  • Check brake lines and driveshaft angle after install
  • Re-torque U-bolts after the first few drives

Specifications

Brand Trail Gear
Part number TGI110016-1-KIT
Position Rear
Quantity Pair
Lift height range 0 to 4.99 in
Spring rate 235 lbs per inch
Leaves 7 plus a special torque leaf
Spring length 56 5/8 in along the top leaf
Pin to front mount 27 1/2 in
Pin to rear mount 29 5/8 in
Bushings Polyurethane included
Fitment Direct fit

Vehicle fitment

Trail Gear lists these springs for the 1985–1995 Toyota 4Runner in the DLX and SR5 trims, the 1979–1995 Toyota Pickup in the Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo trims, and the 1995–2004 Toyota Tacoma in the Base, DLX, Limited, Pre Runner, S-Runner and SR5 trims.

The list does not include the 2005 and later Tacoma or any Toyota model outside those names. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

These springs are longer than stock and will require hanger relocation. Check the front and rear mounting points against your vehicle before the install, since the pin-to-mount measurements are 27 1/2 inches and 29 5/8 inches.

What’s included

A pair of rear leaf springs with new polyurethane bushings.

Fitment

VehicleYearsTrims
Toyota 4Runner1985–1995DLX, SR5
Toyota Pickup1979–1995Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo
Toyota Tacoma1995–2004Base, DLX, Limited, Pre Runner, S-Runner, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Do these springs need hanger relocation?

Yes. The springs are longer than stock, so hanger relocation is needed before the install. Check the front and rear mounting points against your vehicle first.

What is the spring rate?

Trail Gear lists 235 lbs per inch for these rear springs, and the pin-to-mount measurements are 27 1/2 inches to the front mount and 29 5/8 inches to the rear mount.

Are the bushings included?

Yes. New polyurethane bushings come with the pair of springs. The springs are also longer than stock, so hanger relocation is needed before fitting.

Do longer springs need new shocks?

Often, yes. Longer springs can extend the shock's travel and change its angle, so check shock length and mounting after installation. Replacing shocks at the same time keeps the rear ride and damping matched to the new height.

How often should leaf spring bushings be inspected?

Inspect them at every oil change or tire rotation. Look for cracks, flattening, or squeaks at the eyes and shackles. Worn bushings let the axle shift and can make steering feel loose.
