Overview
The Rubicon Express Extreme-Duty 4-Link Long Arm Coilover Kit with Airbumps, part number JK444CC, is a coilover suspension for the 4-door 2007-2018 Jeep Wrangler Unlimited (JK). It builds on Rubicon Express Extreme Duty long arm suspension systems, so the long arms provide the suspension geometry and the coilovers add speed and ride comfort on the trail.
The coilover shocks give increased wheel travel and optimized shock damping, and the spring rate can be tuned. Dual coil springs make the ride progressive, and the remote reservoirs add fluid capacity for cool, consistent damping. The threaded FOX shock bodies allow the ride height to be fine tuned.
A 4-link arrangement uses four links to locate the axle, which controls wheel movement while letting the suspension travel up and down. Long arms are the control arms that carry the suspension geometry, and a coilover places the shock and spring on the same mount for a more tunable setup.
Key features
- 4-link long arm coilover design
- Airbumps included
- Increased wheel travel
- Optimized shock damping
- Adjustable spring rates
- Threaded shock bodies for ride height adjustment
- Remote reservoirs
- Plate steel mounts made in the USA
Coilover tuning and ride height
A coilover places the spring and shock on the same mount, which makes the ride easier to tune than a separate shock and spring. Threaded bodies let the ride height be adjusted, and dual coil springs help the ride feel progressive as the suspension compresses. Remote reservoirs keep damping fluid cooler during hard use on the trail.
Changing ride height on a coilover affects the angle of the links, so alignment and driveline angles should be checked once the height is set. Airbumps act as an additional stop at the end of travel, so they can influence the feel on hard compression. Set the height in small steps and recheck tire clearance at full lock.
- Set ride height in small steps
- Recheck alignment after height changes
- Inspect reservoir hoses for rubbing
- Check airbump position at full compression
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JK444CC |
| UPC | 700007573691 |
| Lift height range | Any height |
| Shocks | Included, with remote reservoirs |
| Airbumps | Included |
| Mount material | Plate steel, made in the USA |
Vehicle fitment
It is written for the 4-door 2007-2018 Jeep Wrangler Unlimited (JK), covering the Unlimited 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions. It is a direct fit kit.
Confirm fit for your vehicle’s year, model and trim before ordering, since the 2-door JK needs its own coilover kit.
Installation notes
A full 4-link coilover system changes the ride height and the alignment, so both should be checked after installation. The airbumps are part of this kit, and the coilover upgrade is meant to be installed on top of the Extreme Duty long arm base.
What’s included

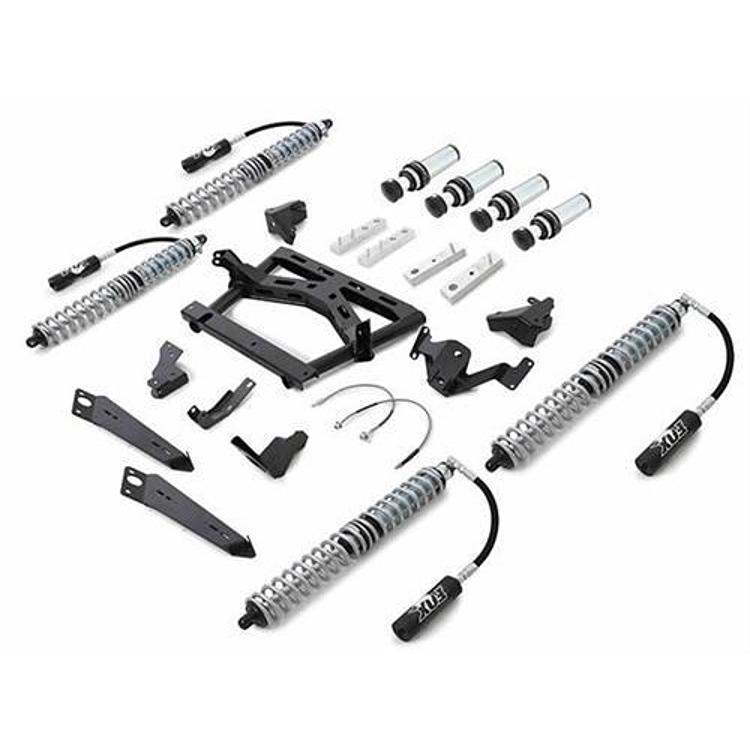

Coilover shocks with remote reservoirs, dual coil springs, threaded shock bodies, plate steel mounts and airbumps.
