Overview

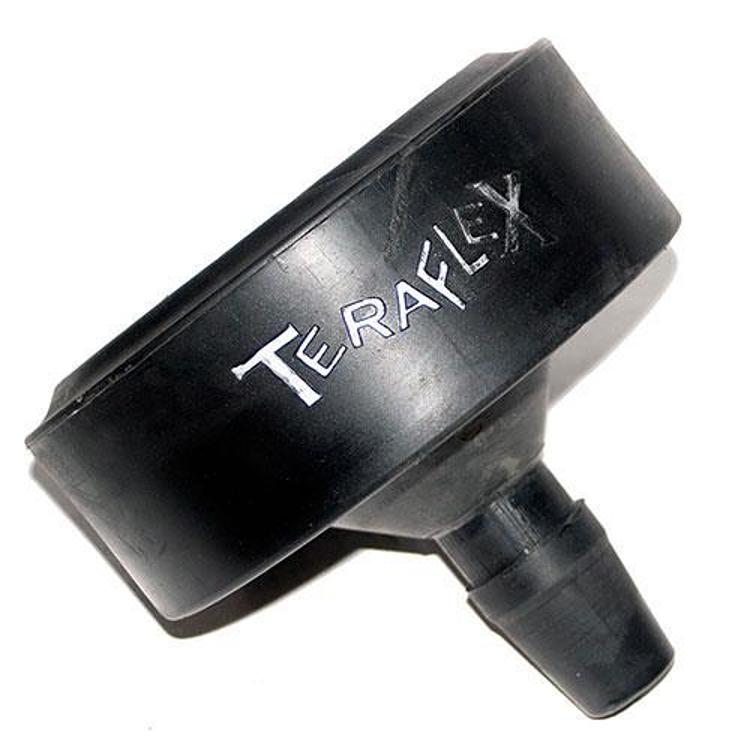

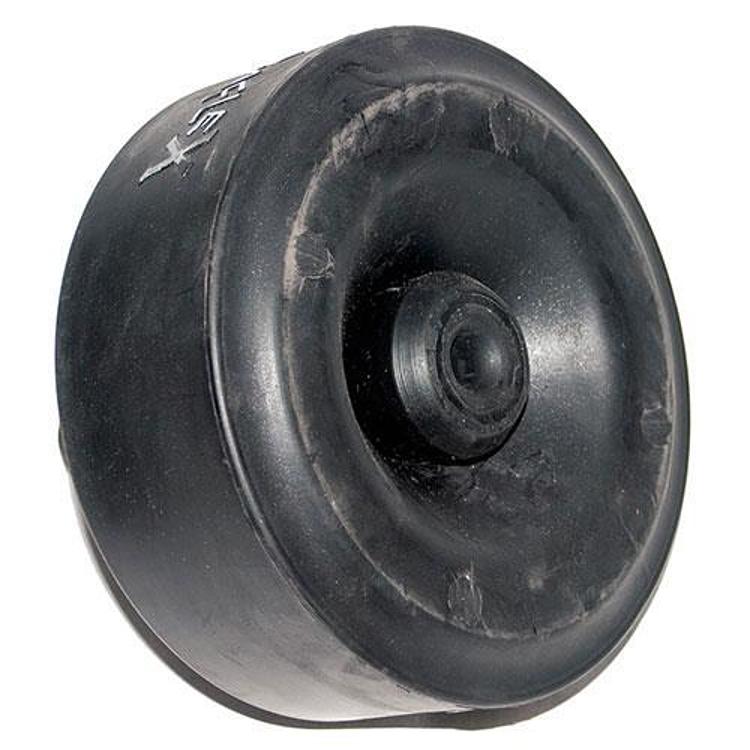

The TeraFlex 1954200 is a 2.5-inch rear leveling spacer for the 2007–2015 Jeep Wrangler JK. It levels a JK that dips in the front from the weight of a winch or bumper, or sags under a loaded vehicle. The spacer works in a stock configuration or on a lifted vehicle.
The rear spacer includes a TeraFlex spring retainer and guide, which keeps the spring in position during extreme articulation. The spacer is 2.0 inches thick. Longer shocks or shock extensions are required.
The spacer is made of black polyurethane and is sold individually. It installs at the rear coil springs, so a pair is needed for both rear springs.
Key features
- Rear coil spring spacer
- Spring retainer and guide built into the spacer
- Polyurethane construction
- Covers 2-door and 4-door JK Wranglers and all JK Rubicon models
- Maximum tire size of 35 inches
Articulation and shock length
A rear coil spring spacer raises the back of the vehicle, which changes how the rear suspension compresses and extends. When the spring sits higher, the shock may need more travel, so longer shocks or shock extensions are often used. Plan for that change early in the install.
The retainer and guide help keep the spring centered during heavy articulation, which matters on rough trails. Inspect the spring seats, shock mounts and rear track bar after installation, and recheck fasteners after the first few outings. Rear height changes can also shift the rear axle angle, so a check of the driveline is worth doing.
- Budget for longer shocks before ordering the spacers
- Inspect polyurethane spacers for cracks or flattening
- Recheck fasteners after the first few trail outings
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1954200 |
| UPC | 843885024927 |
| Spacer thickness | 2.0 inches |
| Lift location | Rear |
| Rear lift method | Coil spring spacers |
| Spacer material | Polyurethane |
| Finish color | Black |
| Max tire size | 35 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007-2015 Jeep Wrangler JK, including the 2-door and 4-door models.
Wrangler model years 2006 and earlier and 2018 and later fall outside this fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Longer shocks or shock extensions are required with this rear spacer. Check the alignment after installation.
What’s included
The spacer is sold individually. Longer shocks or shock extensions are not included.
