Overview

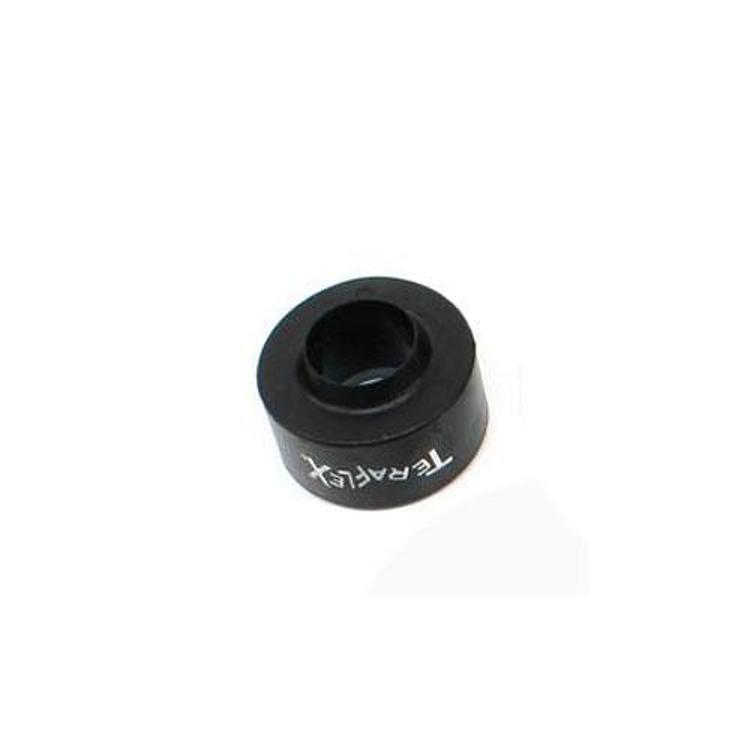

The TeraFlex 1953200 is a 2.5 inch leveling lift made of front coil spring spacers for the 2007–2015 Jeep Wrangler (JK), in 2-door and 4-door models. It is meant for a JK that dips in front from the weight of a winch, sags, or carries a loaded vehicle, and it is designed to work on a stock or lifted vehicle.
TeraFlex offers the same spacers in 1/2 inch, 1 inch and 2.5 inch lift increments; this part is the 2.5 inch version. The rear spacer carries TeraFlex’s spring retainer and guide, which helps realign the spring to its proper location during extreme articulation.
Key features
- Front coil spring spacers that level the front end
- Suits a stock or lifted Wrangler JK
- Helps level a JK that dips from a winch or heavy bumper
- Rear spacer includes a spring retainer and guide for extreme articulation
- Polyurethane spacer material in black
- Requires longer shocks or shock extensions
Setting up a JK front lift
Front coil spring spacers lift the front end by sitting between the coil and its upper seat. On a Jeep Wrangler JK, that can help a front end that dips under a winch, a heavy bumper or a loaded cargo area. The height change alone is not the full picture, since the front driveline and steering angles change too.
Plan the install around the shocks and the driveline. Shock length must be checked first to keep proper travel, and a higher front end increases the angle of the front driveshaft. Check the u-joints and axle angle at full droop before taking the Jeep off road.
Recheck the front alignment after installation and inspect the sway bar links and track bar mounts for wear. Articulation changes with the new height, so test the Jeep slowly on a safe surface before a longer trip.
- Check the front driveshaft angle
- Inspect sway bar links and track bar mounts
- Recheck alignment after installation
- Test articulation slowly before a longer trip
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1953200 |
| UPC | 843885024842 |
| Lift height | 2.5 inch |
| Lift increments offered | 1/2 inch, 1 inch, 2.5 inch |
| Front lift method | Coil spring spacers |
| Rear lift method | Front lift only |
| Spacer material | Polyurethane |
| Finish | Black |
| Fitment | Direct fit |
Vehicle fitment
The fitment covers the 2007–2015 Jeep Wrangler (JK) in these trims: 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X.
The list does not cover the TJ, LJ or JL Wrangler generations, or the 2016–2018 JK model years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Plan on longer shocks or shock extensions before installing the spacers, since they are required for this lift.
What’s included
Check the package contents against your installation plan before starting the job.
