Overview
The TeraFlex 1155200 is a front and rear coil spring spacer leveling kit for the 2007–2015 Jeep Wrangler JK, in 2-door and 4-door form. It levels a JK that sits nose-down from the factory rake, so the front and rear sit at a closer height.
The kit adds front and rear coil spring spacers. It provides a 1.5-inch front lift and a 1-inch rear lift, and it comes with longer front sway bar links. The maximum tire size is 33 x 12.50 inches.
Key features
- Front lift of 1.5 inches and rear lift of 1 inch
- Front and rear coil spring spacers
- Longer front sway bar links included
- Polyurethane spacers with a black finish
- Maximum tire size of 33 x 12.50 inches
Setting the right height
Leveling springs are a practical way to correct a nose-down stance, but they change more than the front and rear height. Raising both ends alters the angles of the driveshafts, the steering geometry and the load on the shocks. Coil spring spacers keep the factory springs in place, so the ride stays close to stock while the vehicle sits more evenly. Polyurethane spacers do not absorb road shock the way a new spring would, so some firmness can be expected over bumps.
Before you buy, consider the tires you plan to run, since the maximum tire size sets the limit for this setup. Larger tires add rotating weight and can rub at full steering lock if the setup is pushed beyond what the kit allows. Once installed, look for uneven tire wear, a steering wheel that sits off center, and bump stops that bottom out. Those are signs the alignment or the rear height needs another look.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1155200 |
| UPC | 843885020066 |
| Front lift height | 1.5 inches |
| Rear lift height | 1 inch |
| Front lift method | Coil spring spacers |
| Rear lift method | Coil spring spacers |
| Spacer material | Polyurethane |
| Finish color | Black |
| Max tire size | 33 x 12.50 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2015 Jeep Wrangler (JK), in both 2-door and 4-door form.
Confirm fit for your vehicle’s year, model and trim before ordering. Wrangler model years 2006 and earlier and 2018 and later fall outside this kit’s range.
Installation notes
The kit changes both front and rear ride height, so have the alignment and the driveline angles checked after installation.

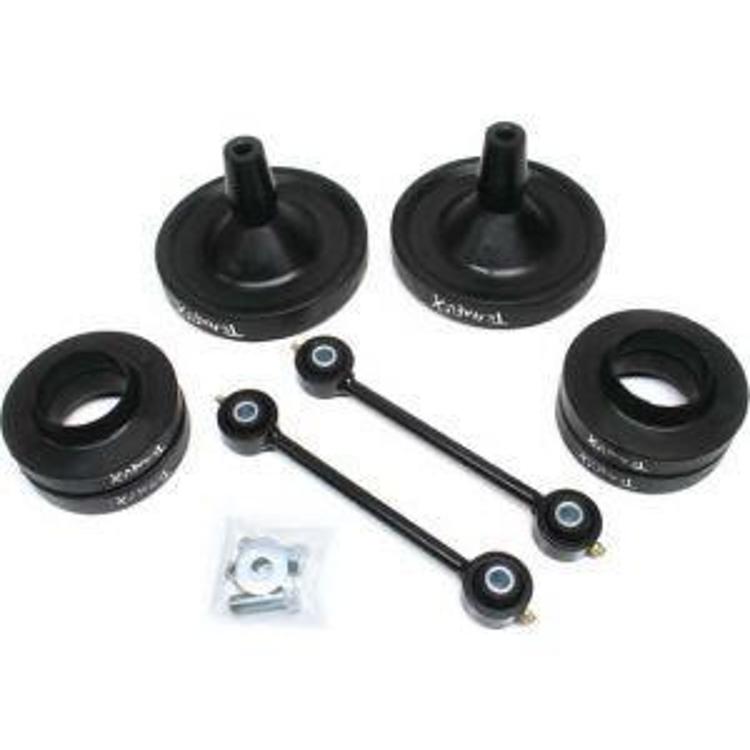

What’s included
The kit includes front and rear coil spring spacers and longer front sway bar links.
