Overview

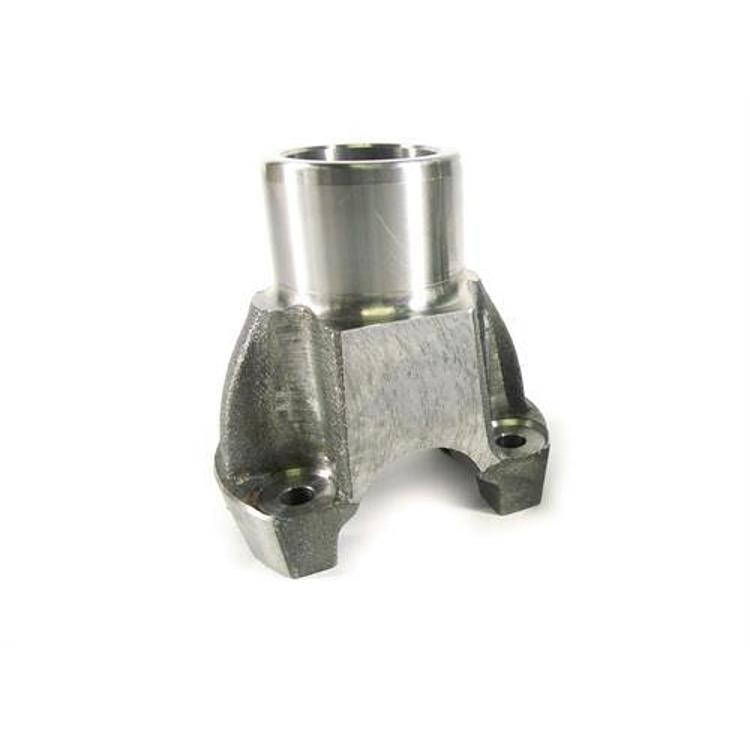

The TeraFlex 3244404 is a replacement output yoke for the TeraFlex 231 short shaft kit tailshaft. It is built to fit that tailshaft.
Working with a short shaft setup
A short shaft driveline runs a small distance between the transfer case and the front or rear axle, so the output yoke carries torque through a short, stiff path. Wear at the yoke shows up as clunking when the drivetrain loads and changes direction. Because the yoke, u-joint and pinion angle all share the load, a worn yoke can make a fresh u-joint wear out early.
When replacing the yoke, inspect the splines, the seal surface and the u-joint bearing caps for scoring or looseness. Check the pinion angle with the new yoke installed, since angle errors in a short driveline increase vibration quickly. Keep the old yoke for comparison if the new part arrives with different machining.
- Inspect the yoke splines for wear or rust
- Check u-joint caps for looseness
- Confirm pinion angle after installation
- Replace the seal when the yoke is out
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 3244404 |
| UPC | 843885001430 |
| Compatible with | TeraFlex 231 short shaft kit tailshaft |
Vehicle fitment
This is a driveline component. Its fit is tied to the TeraFlex 231 short shaft kit tailshaft, and no vehicle years, models or chassis codes are listed.
Check your transfer case and short shaft kit before ordering. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The output yoke is the only item in this package. The TeraFlex 231 short shaft kit is not part of this item.
