Overview

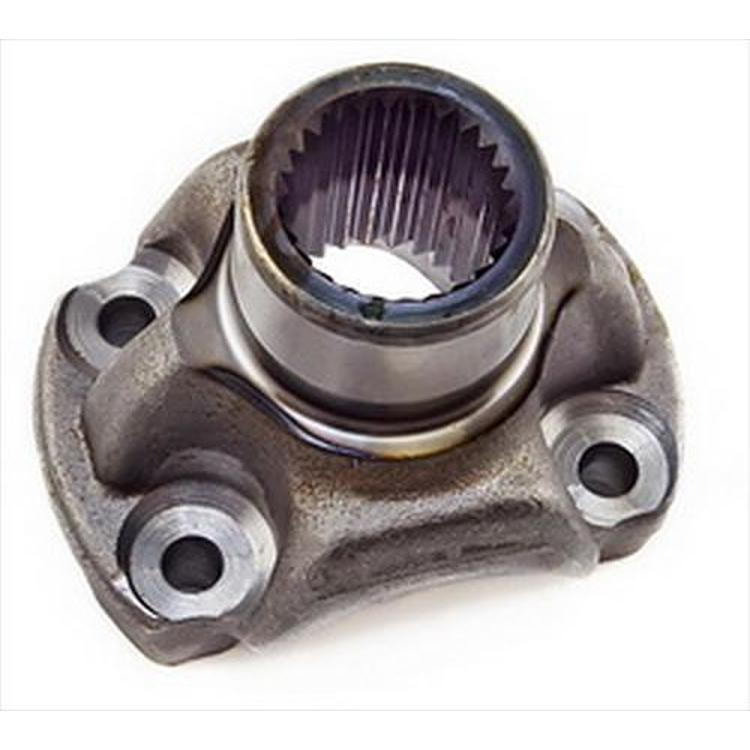

The Omix-Ada 18678.05 is a Quadratrac front output yoke with a 26 spline, made for the Model 300 transfer case and CJ drive shafts. The same yoke can be used as a front or rear yoke on that case, and it also works on Atlas transfer cases that have a 26 spline front output shaft. It fits the 1976–1979 Jeep CJ7 in Base, Golden Eagle and Renegade trims.
A yoke joins the driveshaft to the transfer case output, so the spline count and output shaft type are the first details to match before fitting a replacement.
Key features
- 26 spline output for CJ drive shafts
- Usable as a front or rear yoke on the Model 300 transfer case
- Also fits Atlas transfer cases with a 26 spline front output shaft
- Omix-Ada part number 18678.05 with UPC 804314044978
Spline matching and output shafts
The spline count and output shaft type decide whether a yoke will engage the transfer case correctly. A 26 spline yoke should be checked against the shaft before assembly, and the splines should slide on without forcing. Shafts with burrs or wear can be cleaned lightly, but a damaged spline usually means the yoke or shaft needs replacing.
When a Model 300 is paired with an Atlas case, check the output shaft type first, since front and rear yoke use can differ by setup. Inspect the seal surface on the yoke and replace the transfer case seal if it shows leakage. Tighten the yoke nut to the value in your service manual and recheck it after initial driving.
- Confirm spline count on both yoke and output shaft
- Clean burrs lightly from splines before fitting
- Inspect the seal surface for grooves
- Recheck the yoke nut after the first few drives
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 18678.05 |
| UPC | 804314044978 |
| Spline count | 26 spline |
| Application | CJ drive shafts; Model 300 transfer case front or rear yoke |
| Also fits | Atlas transfer cases with 26 spline front output shaft |
| Fit type | Direct fit |
Vehicle fitment
The manufacturer fitment list covers the 1976–1979 Jeep CJ7 in Base, Golden Eagle and Renegade trims.
Match your year, model and trim to the CJ7 details above before buying, since CJ5 and other CJ generations need to be checked separately.
What’s included
The front output yoke, part number 18678.05. Hardware and the transfer case itself are not included.
