Overview

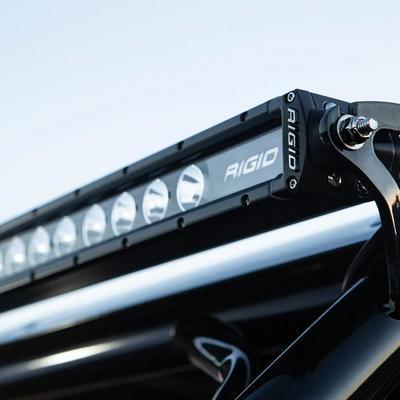

The Rigid Industries Radiance Plus SR-Series RGBW Blacklight 50 Inch LED Light Bar (part 250603) is a 50 inch single row bar with RGB back-lighting. The eight back-light options are toggled with a switch: red, green, blue, light blue, purple, amber, white or rotating. The forward optics are broad spot.
The bar uses the low-profile, high-grade aluminum alloy housing of the SR-Series, with a black exposed circuit board and optimized forward projecting optics. Prominent RIGID branding plates appear on the bar. The RGB back-lighting sets the Radiance Plus apart from the standard SR-Series. The 50 inch length is the longest size in the Radiance Plus range, which also includes 20 and 40 inch bars.
Key features

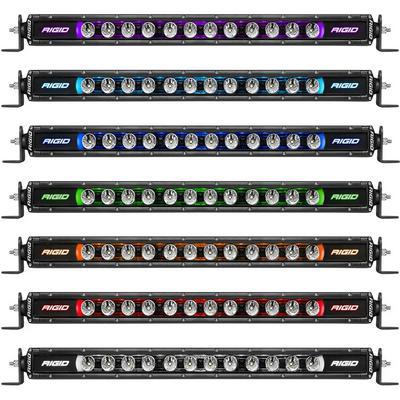

- Eight switchable back-light options
- RGB LEDs
- Broad spot forward optics
- Single row LED layout
- Black exposed circuit board
- Low-profile aluminum alloy housing
- RIGID branding plates
Planning the switch and wiring
Back-lighting is set from a switch, so the switch location decides how easy the colors are to use. Place it where the driver can reach it without looking away from the road, and keep the wire run short and protected. A rotating or white setting is handy for camp, while a clear forward beam is the main use on the trail.
Aluminum housings shed heat well, but a sealed connection still needs care. Use weatherproof connectors, check the feed for chafing after rough trips, and keep the circuit board area clear of mud. Wipe the lens and branding plates with mild soap so the back-light stays easy to see.
- Mount the switch in a fixed spot
- Use a fused feed matched to the bar
- Inspect the wire loom after each trip
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 250603 |
| Light series | Radiance Plus SR-Series |
| Light type | RGBW LED light bar, single row |
| Size | 50 inch |
| Beam pattern | Broad spot |
| Back-light options | Red, green, blue, light blue, purple, amber, white, rotating |
| Housing | High-grade aluminum alloy, low profile |
| Circuit board | Black, exposed |
Vehicle fitment
This 50 inch bar is a universal light bar and is not built for one vehicle. It is a universal fit. Because the bar is 50 inches long, confirm there is room for its full length and the wire route before mounting.
Installation notes
Choose the switch location before running the wiring, because the back-light color is set from the switch. Fuse the feed for the bar’s load, and check local rules for accent and auxiliary lights on public roads before use.
What’s included
One 50 inch Radiance Plus SR-Series light bar, sold as a single unit. Confirm the harness and mounting hardware you need before ordering.
