Overview

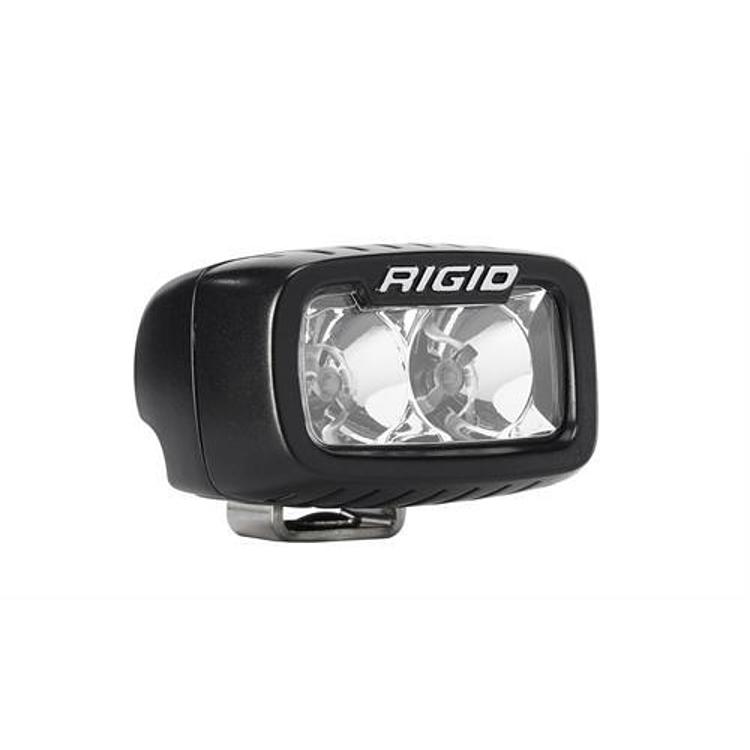

The Rigid Industries SR-Series SR-M Single Row Mini 20 Deg. Flood LED Light is a surface mount, universal LED light with 2 white LEDs and a 20 degree flood beam.
The M-Series light has a 7 to 36 VDC input, a 50000 hour life, an IP68 rating and a plug and play wiring harness with switch and cast bracket. It has a square, clear lens and mounts with a bracket as a single light.
Key features
- 20 degree flood beam, hybrid optics
- 2 white LEDs in a single row, surface mount
- Clear lens, square shape
- Plug and play wiring harness, switch and cast bracket
- 7 to 36 VDC input
- IP68 rating
- 50000 hour life
- Durable polyester powdercoat finish and unbreakable polycarbonate bracket
- Instant on and off with no warm up
Wiring and switch basics
Auxiliary lights draw current whenever the switch is on, so the circuit needs a fuse rated for the load and a clean ground at the frame. Run the wiring away from exhaust, sharp edges and suspension movement, and use grommets wherever it passes through sheet metal. A tidy harness is easier to inspect and less likely to chafe through on rough trails.
Mounting position matters as much as wiring. A surface mount bracket works best on a solid, flat area with room for the beam to spread across the trail ahead. Check the light’s aim after the first drive, since vibration can shift the bracket. Keep the lens clean, because dirt and road film reduce light output.
- Use a fuse close to the power source
- Ground to clean bare metal
- Aim low to keep glare off other drivers
Specifications
| Brand | Rigid Industries |
|---|---|
| Product | SR-Series SR-M Single Row Mini 20 Deg. Flood |
| UPC | 849774027765 |
| Light source | LED, 2 white LEDs |
| Beam | Flood, 20 degree |
| Optics | Hybrid |
| Lens color | Clear |
| Shape | Square |
| Mounting | Surface mount, bracket |
| Sold as | Single |
| Size | 0 inch to 10 inch |
| Input | 7 to 36 VDC |
| Rating | IP68 |
| Life | 50000 hours (M-Series copy) |
| Wiring | Plug and play harness, switch and cast bracket |
Vehicle fitment
This is a universal LED light and is not vehicle-specific. Choose a mounting location with enough room for the bracket and a clear view of the beam, and confirm that your vehicle’s electrical system matches the 7 to 36 VDC input range.
It is not limited to specific vehicles. Check local rules on auxiliary lights before using them on public roads.
Installation notes
Wire the light with the supplied harness and switch, protect the circuit with a correctly rated fuse, and route and secure wiring away from heat and moving parts. Check local regulations before using auxiliary lighting on public roads. Aim the light so it does not dazzle other drivers.
What’s included
The light comes with a plug and play wiring harness, a switch and a cast bracket. Confirm the package contents against your installation before starting.
