Overview

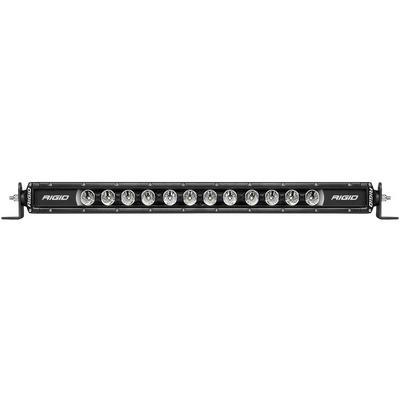

The Rigid Industries Radiance Plus SR-Series RGBW Blacklight 20 Inch LED Light Bar (part 220603) is a single row light bar with RGB back-lighting. Rigid’s RGB LEDs let the owner switch between eight back-light options with a flip of a switch: red, green, blue, light blue, purple, amber, white or rotating. The bar is listed with a broad spot beam pattern and a 6.2 amp draw, with a maximum input of 15 volts.
The Radiance Plus SR-Series uses the same low-profile, high-grade aluminum alloy housing as the SR-Series. It has a black exposed circuit board, optimized forward projecting broad spot optics and prominent RIGID branding plates. The RGB LEDs make the back-light adjustable from the switch, and the build quality matches the rest of the lighting line.
Key features

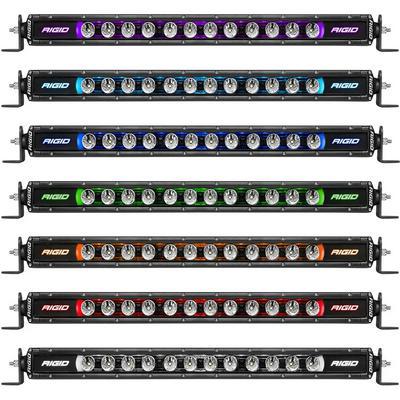

- Eight back-light options: red, green, blue, light blue, purple, amber, white and rotating
- Toggled with a switch
- RGB LEDs for the back-lighting
- Broad spot forward optics
- Black exposed circuit board
- High-grade aluminum alloy housing

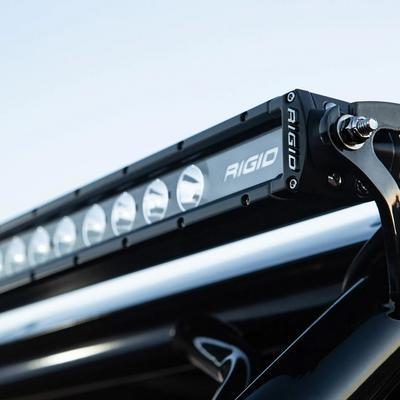

- Prominent RIGID branding plates
Switching and powering RGB back-light
Back-lighting that changes color adds a second use to the bar, such as an accent glow, but the feature only works well when the circuit is set up with care. The color is chosen at the switch, so place it within easy reach and route its wire away from the bar’s power feed. Keep the switch in a dry spot where cargo or feet will not hit it.
The bar draws a fused load, so use wire sized for the current and a fuse close to the power source. A relay helps keep the switch circuit light while the bar carries the full draw. Related parts often replaced with a light bar include the switch, the fuse holder and the connectors. Inspect the connectors after rough use, since moisture at a plug can cause flicker or dead segments.
- Mount the switch where it can be reached without looking
- Use a relay so the switch carries a small load
- Check connectors for moisture after wet trails
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 220603 |
| Light series | Radiance Plus SR-Series |
| Light type | RGBW LED light bar, single row |

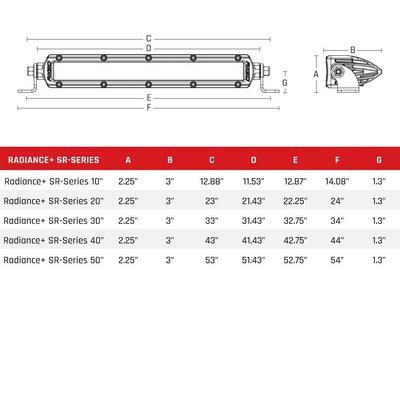

| Size | 20 inch |
| Beam pattern | Broad spot |
| Amp draw | 6.2 amps |
| Voltage max | 15 volts |
| Back-light options | Red, green, blue, light blue, purple, amber, white, rotating |
| Housing | High-grade aluminum alloy, low profile |
| Circuit board | Black, exposed |
Vehicle fitment
This bar suits any vehicle as a universal fit, so it is not sized for one model. The 20 inch length and the 15 volt maximum input are the main fitting points, so check the mounting location and the power source before installation.
Installation notes
Use the voltage and current figures in the specifications to size the power feed. The 6.2 amp draw calls for a fused circuit, and the back-light color is chosen with the switch. Check local rules for accent and auxiliary lighting on public roads.
What’s included
One 20 inch Radiance Plus SR-Series light bar. Confirm what is supplied, including any harness or mounting hardware, before ordering.
