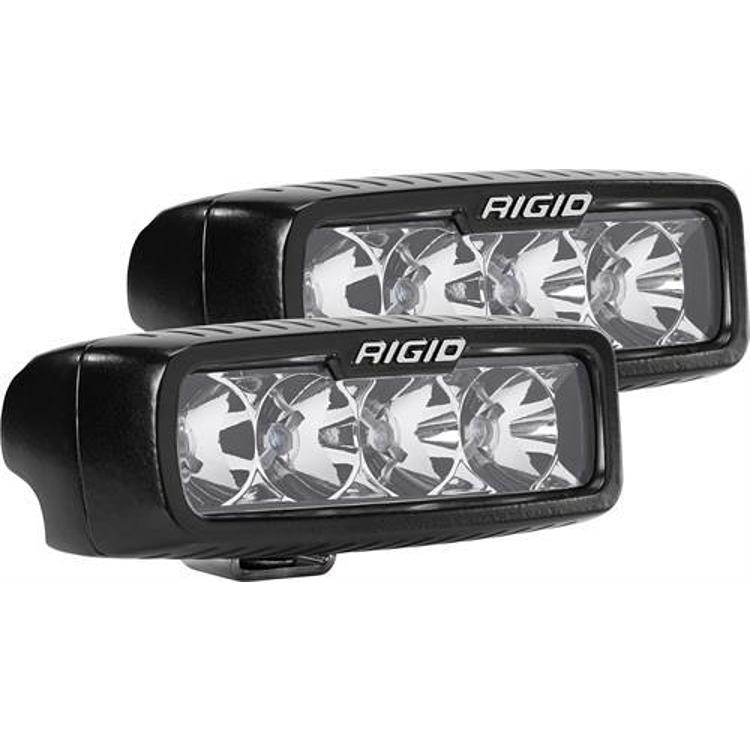

SR-Q-Series Single Row 20 Deg. Flood LED Light

Rigid Industries

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Single row 20 degree flood LED light with a hybrid optic
  • 1568 raw lumens from 20 watts
  • Cast aluminum housing and unbreakable polycarbonate lens
  • Plug and play wire harness with switch and mounting hardware
  • Over 93% efficiency.

Description

Overview

The SR-Q Single Row 20 Deg. Flood LED Light, UPC 849774027994, is a 5 inch flood light with a 20 degree beam. It produces 1568 raw lumens from 20 watts and uses a patented Hybrid optic system that combines reflector and lens technology. The optic is over 93% efficient.

The light is compact, so it fits where a larger light will not. It suits a wide range of lighting applications. The cast aluminum housing has a custom heat sink and powder-coated finish, and the polycarbonate lens is unbreakable and scratch resistant. The design makes it a universal flood light, not a vehicle-specific part.

Key features

  • Flood pattern with a 20 degree spread
  • 1568 raw lumens at 20 watts
  • Hybrid optic reflector and lens technology
  • Over 93% efficiency
  • Custom designed heat sink
  • Powder-coated cast aluminum housing
  • Unbreakable, scratch resistant polycarbonate lens

Heat and lens care

Output depends on the optic staying clear and the housing staying cool. The cast aluminum housing carries heat away from the LEDs, so dirt packed into the heat sink fins can raise operating temperature over time. Clean the fins with a soft brush during routine checks and keep them free of mud and grass clippings.

The unbreakable polycarbonate lens resists impact, but it still scratches. Use a soft cloth and mild soap, not abrasive pads or harsh solvents. Plastic cleaners that contain strong alcohols can cloud the lens, so test any product on a small area first.

A flood light used on a vehicle also sees vibration. Recheck the bracket fasteners and the harness plug after the first few drives, then again every season.

Specifications

Brand Rigid Industries
UPC 849774027994
Light type LED, clear lens
Length 5 in.
LEDs 4 white LEDs
Beam pattern Flood, 20 degree
Output 1568 raw lumens
Power 20 watts
Housing Cast aluminum, powder-coated
Lens Unbreakable polycarbonate
Mounting Bracket, single
Included Mounting hardware, plug and play wire harness with switch

Vehicle fitment

The SR-Q is a universal flood light, so it is not sized for one vehicle. It fits wherever the bracket and a 5 inch housing can be mounted. Check the mounting spot and the wire route before drilling.

Installation notes

The plug and play wire harness and switch are included. Protect the power feed with a fuse, and check local rules before using auxiliary flood lights on a road vehicle.

What’s included

One SR-Q flood light, mounting hardware and a plug and play wire harness with switch.

SKU: RIG905113 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 8.00 × 6.00 × 6.00 in
brands

Questions & Answers

Is the SR-Q Single Row flood light a spot or flood?

It is a flood light with a 20 degree pattern. Rigid designed it for wide, near-field coverage, not long-distance spot throw.

How much light does the SR-Q produce?

Rigid rates the SR-Q at 1568 raw lumens from 20 watts. Its Hybrid optic is rated at over 93% efficiency.

Is a harness included?

Yes. A plug and play wire harness with switch and mounting hardware are included with the light, so it is ready to wire once it is mounted.

How much light does a flood light lose over time?

Output drops as lenses cloud and the heat sink collects dirt. Wipe the lens and clean the fins of the heat sink each season. If the light is much dimmer after cleaning, check the connections and the power supply voltage before assuming the LED needs replacing.
