Overview

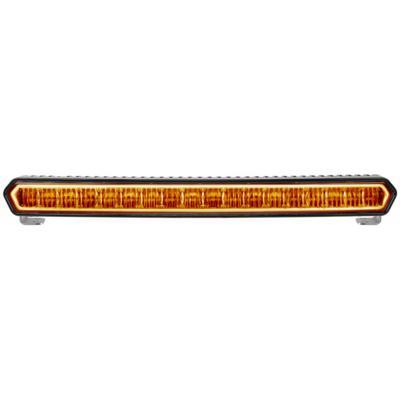

The Rigid Industries SR-L Series 20 Inch LED Light Bar with amber halo (part 63003) is a straight light bar built for accent lighting and forward light. It is rated at 13068 lumens and 126 watts, with a 9 amp draw and a 36 volt maximum input. The optics form an ultra-wide 70 degree beam pattern for lighting up the trail ahead.
The halo back-lighting is available in four colors: red, blue, amber or white. This version has the amber halo. A three-position switch moves between the halo accent and the forward projecting light. Hidden mounting hardware and a glossy outer trim give the bar a clean look. The housing is high-grade aluminum with an impact resistant polycarbonate lens.
Key features
- Ultra-wide 70 degree beam pattern
- Amber halo back-lighting
- Halo available in red, blue, amber or white
- Three-position switch for halo and forward light
- Hidden mounting hardware
- Glossy outer trim
- High-grade aluminum housing and impact resistant polycarbonate lens
Using a three-position switch
A three-position switch lets one light bar serve two jobs: a halo accent for camp or parking, and a forward light for driving. Place the switch where it can be reached without looking, and label each position so passengers know what it does. Keep the switch wiring short and clean, and avoid routing it near sharp edges or moving linkages.
Accent lighting draws power even when the vehicle is parked, so the feed should be fused and switched through a dedicated circuit when possible. Where the halo is used on a trail, a dim setting reduces glare for the driver. Check the connections at the start of each season, since loose terminals are a common cause of flicker in accent lights.
- Label each switch position
- Fuse the feed at the battery
- Inspect the harness connectors periodically
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 63003 |
| Light series | SR-L Series |
| Size | 20 inch |
| Straight or curved | Straight |
| Beam pattern | Wide, 70 degree |
| Horizontal beam angle | 73.50 degrees |
| Output | 13068 lumens |
| Power | 126 watts; 9 amp draw |
| Voltage max | 36 |
| Lux at 10 meters | 258.32 |
| Beam distance | 321.40 at 0.25 lux; 160.70 at 1 lux |
| Back-lighting color | Amber |
Vehicle fitment
This is a universal-fit bar, so it is not built for one vehicle. The hidden mounting hardware keeps the mount clean, but the bar still needs room for its 20 inch length. Confirm the mounting location and clearance before drilling.
Installation notes
Use the 3-position switch to choose between the halo accent and the forward light, and wire the switch before mounting the bar. The 9 amp draw calls for a fused feed, and the bar’s 36 volt maximum sets the input range. Check local rules for accent and auxiliary lighting on public roads.
What’s included
One 20 inch SR-L Series light bar with a 3-position switch. Check the package contents against your installation before starting.
