Overview

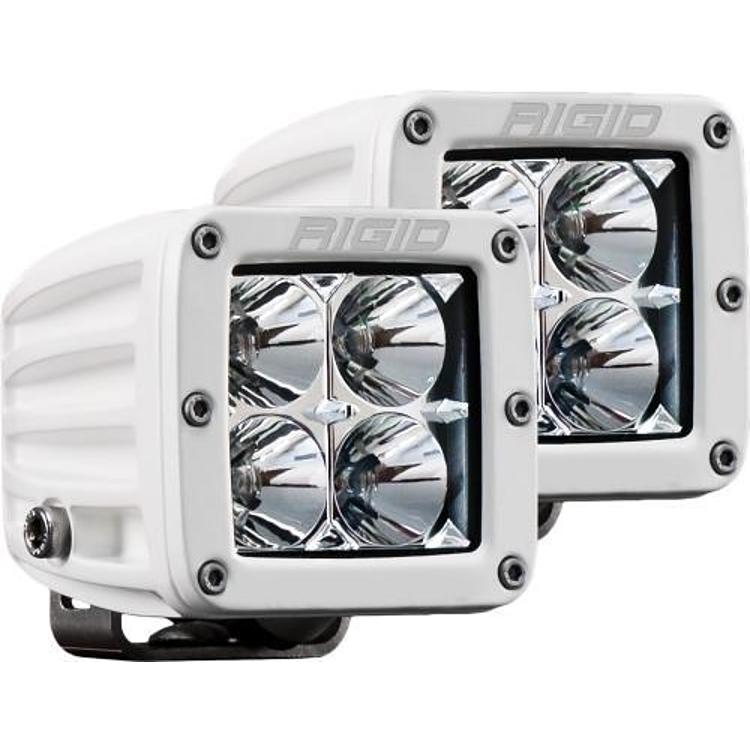

The Rigid Industries M-Series Dually 20 Deg. Flood LED Light is a set of two square lights with a 20-degree flood pattern for surface mounting on a bracket. Each light has four white LEDs and a hybrid lens, giving a clear-lens flood beam in a compact package.
The M-Series is designed for ultra low power use and suits boating and other close-range work. It is a small area light for jobs where lighting extreme distances is not needed. The lights run on 9 to 36 VDC and have a 50,000-hour rated life, compared with about 1,000 hours for halogen and 5,000 hours for xenon.
Key features
- 20-degree flood pattern from a hybrid lens
- Four white LEDs per light
- Unbreakable polycarbonate lens
- 6063 aluminum extrusion housing
- Durable UV polyester powder-coat finish
- Sold as a set of two
Choosing mounting spots
Flood lights like this one are used where a wide, close pattern helps more than distance. Around a camp, a trailer hitch or the rear of a truck bed, a 20-degree pattern lights up the work area without glare reaching far beyond it. Placement matters more than brightness, so test the pattern at night before fixing the brackets permanently.
Because the lights mount on a bracket, the surface and angle decide how well they perform. Choose a panel or frame section that will not flex at speed, and keep the lens clear of mud and spray. Wiring through a fused circuit protects the harness if a cable is pinched or shorted.
Surface-mounted lights are often replaced with the bracket and harness together when the mounting points wear. Check the seals and lens for cracks after rough trips.
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774027253 |
| Series | M-Series Dually |
| Light type | LED flood light, sold as a set of two |
| Light shape | Square |
| Mounting | Surface, bracket |
| Lens color | Clear |
| Beam pattern | 20-degree flood |
| LED count | 4 white LEDs per light |
| Input voltage | 9 to 36 VDC |
| Rated life | 50,000 hours |
| Housing | 6063 aluminum extrusion |
| Lens | Unbreakable polycarbonate |
| Finish | Durable UV polyester powder coat |
Vehicle fitment
It is a universal fit, so it is not built for one vehicle. Surface mounting on a bracket means the owner chooses a solid mounting spot on each vehicle or boat.
Installation notes
Fasten both brackets to a solid surface, then wire the pair through one fused circuit sized for the 9 to 36 VDC input. Keep the cables clear of moving parts, and check local rules on driving lights before using them on a road vehicle.
What’s included
The set includes two flood lights. Check the package contents against your installation before starting.
