Rigid Industries 360-Series 6″ Spot LED Lights (Blue) – 36202

Rigid Industries

Shop Rigid Industries Driving Lights on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid 360-Series 6 inch spot light with blue backlight
  • 8670 raw lumens and 72 watts per light
  • 18.7 degree horizontal beam angle, sold as a set of two
  • Aluminum housing with blacked-out circuit board
  • Limited lifetime warranty

Description

Overview

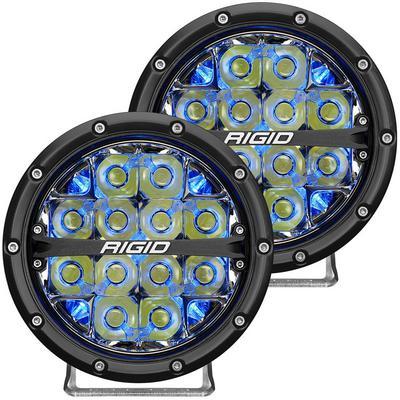

The Rigid Industries 360-Series 6 Inch Spot LED Light with a blue backlight (part 36202) is a larger round spot light sold as a set of two. Each light is rated at 8670 raw lumens and 72 watts, and the spot has an 18.7 degree horizontal beam angle. The 360-Series spot is built for long throw and is housed in an aluminum body.

Rigid lists 1511.14 lux at 10 meters for this spot, with beam distances of 777.5 at 0.25 lux and 388.7 at 1 lux. The circuit board is blacked out, and the light carries a limited lifetime warranty. The blue backlight is one of four colors the family offers, and the harness is sold separately. The 360-Series comes in 4 inch and 6 inch sizes, and its beam patterns run from 17 degrees to 60 degrees, so this 6 inch spot is the narrow, long-range option in the 6 inch line. It is sold as a set of two, with the wiring harness sold separately, so budget for that part.

Key features

  • Spot beam pattern for long throw
  • Blue backlight color
  • 8670 raw lumens per light
  • 72 watts per light
  • 18.7 degree horizontal beam angle
  • Aluminum housing with a blacked-out circuit board
  • Limited lifetime warranty

Long throw aiming

A long throw spot rewards careful aiming. Because the beam is narrow, a small change in angle moves the hot spot a long distance down the trail. Set the aim on level ground with the vehicle loaded as it normally is, since the added weight changes the angle of the bar. Mark the final position so you can return to it after removing the lights.

Vibration and bumps are the most common causes of a drifting beam. Check the bracket, bolts and any adjustment points after the first few trail runs, and recheck the aim after any hard impact. Keeping the lens clean also helps, since dirt scatters the beam and reduces the reach a long throw is meant to provide.

  • Aim with the vehicle loaded normally
  • Mark the final aim position
  • Clean the lens before each trip

Specifications

Brand Rigid Industries
Part number 36202
Series 360-Series
Light type LED, round, surface mount
Size 6 inch
Beam pattern Spot
Output 8670 raw lumens
Power 72 watts
Horizontal beam angle 18.7 degrees
Lux at 10 meters 1511.14
Beam distance 777.5 at 0.25 lux; 388.7 at 1 lux
Backlight Blue
Sold as Set of 2
Warranty Limited lifetime

Vehicle fitment

The 6 inch 360-Series spot light is universal and is not built for one vehicle. The family fits multiple OEM applications, so the mounting location decides the fit. Set the aim after mounting, and check the clearance for the housing first.

Installation notes

The wiring harness is sold separately. Fuse the 72 watt feed and check local rules before using spot lights on public roads.

What’s included

A set of two 6 inch 360-Series spot lights with a blue backlight.

Not included: the wiring harness, which is sold separately.

Questions & Answers

Is the 6 inch 360-Series spot light sold as a pair?

Yes. Part 36202 is sold as a set of two lights. Each light is rated 8670 raw lumens and 72 watts, and the wiring harness is sold separately.

What is the lux rating of the 6 inch spot?

Rigid lists 1511.14 lux at 10 meters for this spot light. Its beam distances are 777.5 at 0.25 lux and 388.7 at 1 lux, with an 18.7 degree horizontal beam angle.

Does this spot light come with a warranty?

Yes. The 360-Series carries a limited lifetime warranty. This blue backlight spot has an aluminum housing, a blacked-out circuit board and a 72 watt rating.

How often should a long throw spot be re-aimed?

Check the aim after the first few trail runs, since vibration can shift the bracket. Recheck it after any hard impact or any change to the mounting hardware.
