Spidertrax Offroad Wheel Spacers (Black) – WHS010K

Spidertrax Offroad

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pair of 1.5 in thick, 5 on 5 wheel spacers in anodized black 6061T6 aluminum
  • Named for Wrangler JK, Commander XK and Grand Cherokee WK and WJ axles
  • 10 standard wheel studs pre-installed, with 10 lug nuts and thread locker
  • Part number WHS010K from Spidertrax Offroad

Description

Overview

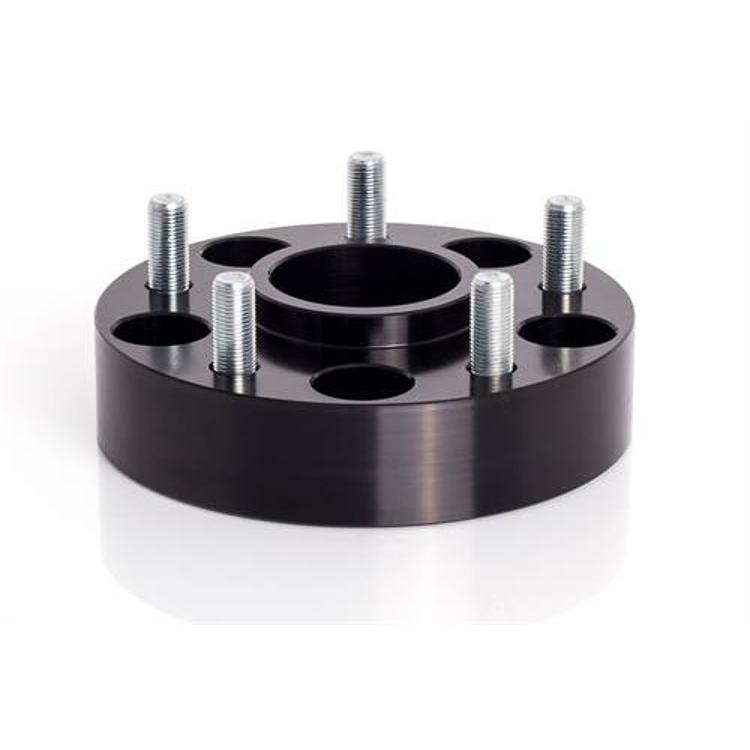

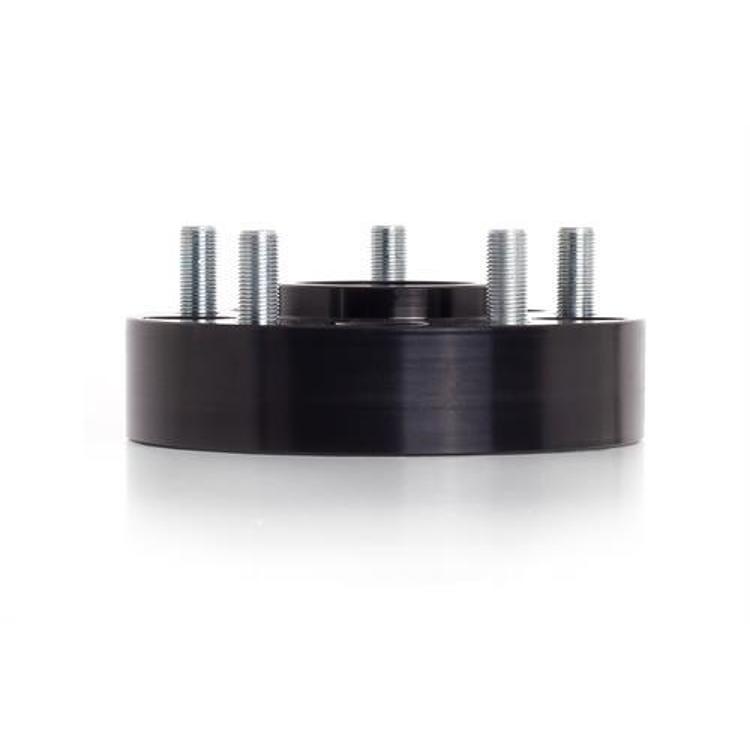

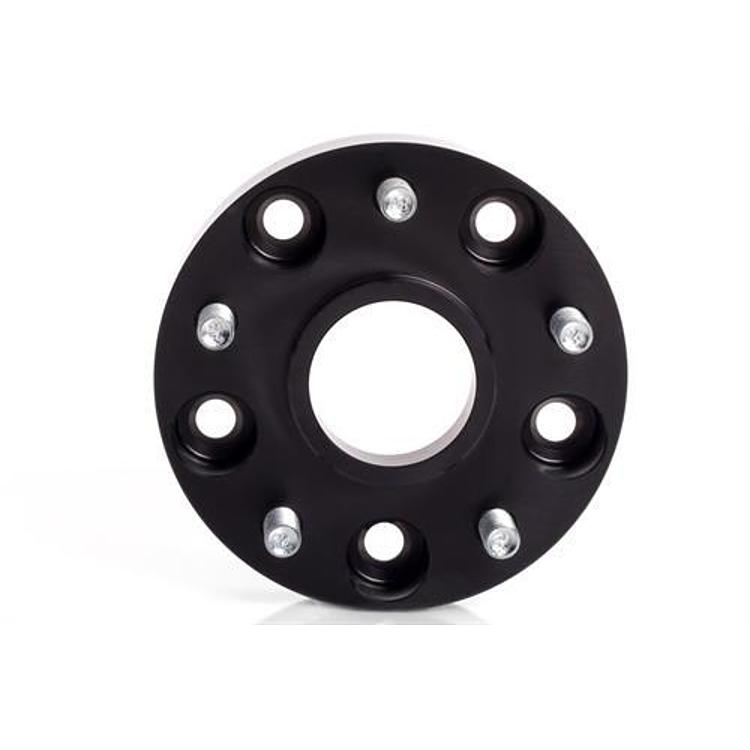

The Spidertrax Offroad WHS010K is a pair of anodized black wheel spacers made from 6061T6 aluminum, 1.5 in thick, with a 5 on 5 bolt circle. They fit front and rear axles for the 2007-Present Jeep Wrangler JK, 2006-Present Commander XK, 2005-2010 Jeep Grand Cherokee WK and 1999-2004 Grand Cherokee WJ.

Each kit comes with 2 wheel spacers, 10 standard wheel studs pre-installed, 10 lug nuts and a package of thread locker. The spacers are anodized in black using a double anodizing process for added corrosion resistance, and they are wheel and hub centric. They are made in the USA.

Key features

  • 6061T6 aluminum construction
  • Double anodized black finish
  • 1.5 in thickness
  • 5 on 5 bolt circle
  • Wheel and hub centric design
  • Studs pre-installed, with lug nuts and thread locker included

Spacer thickness and clearance

Thickness is the main variable when choosing a spacer, because it sets how far the wheel moves outward. A thicker spacer adds more track width but also more leverage on the hub and bearings. Before buying, measure the space between the back of the wheel and the brake caliper, then decide how much room is needed for the tire to stay clear of the fender.

Clearance is easiest to judge with the wheel mounted and the suspension at rest. Turn the wheel by hand and watch for contact with calipers, brake lines or the fender edge. Recheck after a few short drives, since settling can shift the tire slightly closer to suspension parts.

  • Measure caliper clearance before buying
  • Turn the wheel by hand to check rubbing
  • Recheck clearance after short drives
  • Account for tire width when choosing thickness

Specifications

Brand Spidertrax Offroad
Model code WHS010K
UPC 34421840096
Material 6061T6 aluminum
Finish Anodized black
Thickness 1.5 in
Bolt circle 5 on 5
Quantity Sold as a pair
Wheel studs 10 standard, pre-installed
Lug nuts 10

Vehicle fitment

They fit front and rear axles for the 2007-Present Jeep Wrangler JK, 2006-Present Commander XK, 2005-2010 Jeep Grand Cherokee WK and 1999-2004 Grand Cherokee WJ. Check the 5 on 5 bolt circle and 1.5 in thickness against your axle first, then confirm your model year and trim.

Installation notes

The studs come pre-installed and a package of thread locker is included. Confirm the torque setting for the studs and lug nuts before tightening.

What’s included

Two wheel spacers, 10 pre-installed standard wheel studs, 10 lug nuts, and a package of thread locker.

SKU: SPIWHS010K Category:

Specification

Shipping weight 8.70 lbs
Package dimensions 7.00 × 7.00 × 4.60 in
brands

Questions & Answers

Do the WHS010K spacers fit a 2007 Jeep Wrangler JK?

Yes, the Wrangler JK is covered for front and rear axles. Check your year, model and trim against the vehicle before ordering, and compare the 5 on 5 bolt circle with your wheels.

Are the WHS010K spacers hub centric?

Yes. Each spacer is wheel and hub centric, a fit that suits the named axles. Compare the hub and wheel against your vehicle before ordering.

How many studs and lug nuts are included with the WHS010K?

Each kit includes 10 standard wheel studs pre-installed, 10 lug nuts and a package of thread locker, along with 2 wheel spacers.

How do I check clearance after adding spacers?

Turn the wheel by hand with the nuts snug and look for contact with brake calipers, brake lines or the fender edge. Then drive slowly and check again, because the tire can settle closer to suspension parts.
