Spidertrax Offroad Wheel Spacers (Anodized Blue) – WHS001

Spidertrax Offroad

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Spidertrax Offroad WHS001 anodized blue spacers, 1 inch thick
  • 5 on 5.5 bolt pattern with 6061T6 aluminum
  • Pair of spacers with 10 pre-installed Suzuki Samurai OEM metric wheel studs
  • Includes 10 metric lugnuts and Loctite
  • Some Suzuki models are named, but only two carry model years

Description

Overview

The Spidertrax Offroad WHS001 is a pair of anodized blue, 1 inch thick aluminum wheel spacers for Suzuki 4x4s with a 5 on 5.5 bolt pattern. Spidertrax says they are an easy way to space out front and rear Suzuki wheels.

The anodizing is a double process for added corrosion resistance, and the spacers are made in the USA. They are made for Samurai, Sidekick, Vitara, Grand Vitara (99-05), XL-7 (99-05), X-90 and Tracker models, so confirm the year and trim for any model that lacks a year range.

Key features

  • Double anodized dark blue finish for corrosion resistance
  • 1 inch thickness
  • 6061T6 aluminum construction
  • 5 on 5.5 bolt pattern
  • Two spacers with pre-installed Suzuki Samurai OEM metric wheel studs
  • Made in the USA

Spacers and the Suzuki hub

Spacers on older Suzuki 4x4s mostly change tire position and stance, so they affect clearance more than anything else. With the wheel pushed outward, the tire may rub on the fender lip or sit closer to steering and brake parts. Measure the gap between the tire and fender at the top and the back, then check again at full lock to see how much room is left.

Aluminum spacers are lighter than steel, but they still depend on clean seating and correct stud length. Clean the hub face and the spacer faces before fitting, and make sure nothing sits between them. Torque the nuts evenly and recheck after the first few drives, since spacers can settle. Look for cracks, deep corrosion or loose studs during routine service.

Specifications

Brand Spidertrax Offroad
Part number WHS001
UPC 920242491561
Type Spacer
Thickness 1 inch
Material Aluminum, 6061T6
Finish Anodized blue (dark blue), double anodized
Bolt pattern 5 on 5.5
Quantity 2 spacers
Origin Made in the USA

Vehicle fitment

Spidertrax names several Suzuki 4×4 models, but only the Grand Vitara and XL-7 entries carry model years (99-05). Samurai, Sidekick, Vitara, X-90 and Tracker are named without years, so their fitment is not confirmed.

Confirm your vehicle’s year, model and trim before ordering. Models named without years are not confirmed.

Installation notes

The studs are pre-installed and Loctite is included, but no application steps are given. Follow the Loctite product label and check clearance around the fender and brake parts with the spacers fitted.

What’s included

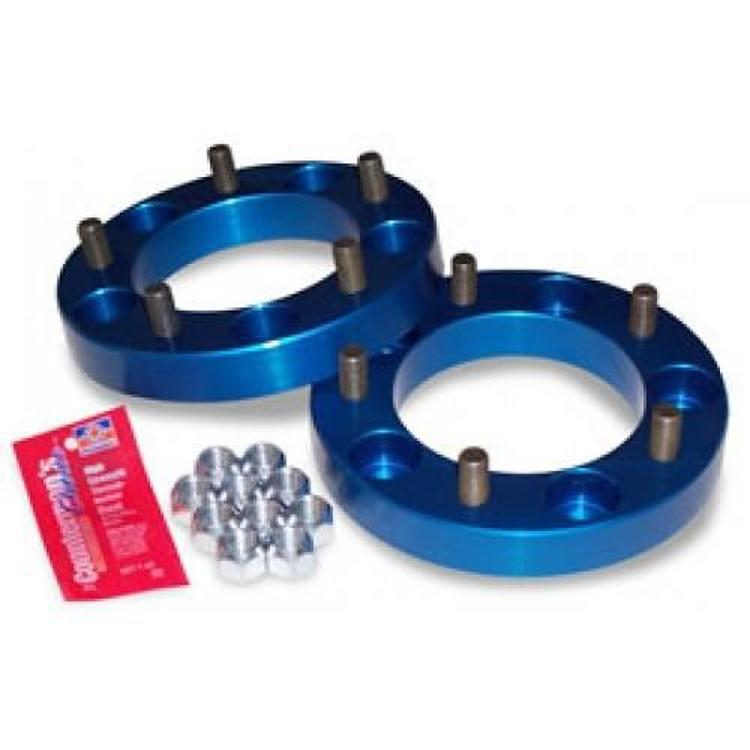

Two wheel spacers, 10 Suzuki Samurai OEM metric wheel studs (pre-installed), 10 metric lugnuts and Loctite.

SKU: SPIWHS001 Category:

Specification

Shipping weight 5.15 lbs
Package dimensions 7.00 × 7.00 × 4.50 in
brands

Questions & Answers

What bolt pattern do the WHS001 spacers use?

The bolt pattern is 5 on 5.5, with 1 inch thick 6061T6 aluminum spacers. Spidertrax says they space out front and rear Suzuki wheels, so measure your hub to confirm the pattern before installing.

Which Suzuki models are these spacers for?

Spidertrax says they work with Samurai, Sidekick, Vitara, Grand Vitara (99-05), XL-7 (99-05), X-90 and Tracker models. Only the Grand Vitara and XL-7 entries carry model years, so confirm your year, model and trim.

What hardware comes with the kit?

Each kit includes 2 wheel spacers, 10 pre-installed Suzuki Samurai OEM metric wheel studs, 10 metric lugnuts and Loctite. The studs come installed, so no separate studs are needed for the spacers.

How do I tell if the spacers need attention?

Watch for vibration, a wheel that feels loose, or tire rub at turns. Check the studs and nuts for movement, and inspect the spacer faces for cracks, galling or corrosion. Retorque and re-inspect after any tire change or rough trail run.
