Overview
The Spidertrax Offroad WHS007 is a pair of 6 on 5.5 inch wheel spacers, 1.25 inch thick, for the front and rear late model Toyota axles. They suit axles that run hub centric wheels and shank style lug nuts.
The spacers are 6061T6 aluminum with a double anodized dark blue finish. They are wheel and hub centric, giving an OEM style fit.
Key features
- Wheel and hub centric for an OEM style fit
- Double anodized dark blue finish
- 6061T6 aluminum construction
- Designed for shank style lug nuts
- Kit includes 12 pre-installed M12x1.5 wheel studs
- Comes as a pair with 12 lug nuts and Loctite
Hub centric fit basics
Hub centric wheels center on the hub itself rather than on the lug studs. A spacer with a matching center bore carries the wheel through the hub, which takes load off the studs. Lug centric designs depend on the studs and nuts to center the wheel, so the two styles should not be swapped without checking the seat and bore.
Shank style lug nuts have a long, round shank that seats inside the wheel. Using a different style can leave the wheel loose or damage the seat. When a spacer is fitted, inspect the lug seats for wear, clean rust and debris off the hub face, and confirm the wheel sits flat before tightening.
- Match the center bore to the hub
- Clean the hub face before mounting
- Use the lug nut style your wheels were built for
- Recheck torque after the first drive
Specifications
| Brand | Spidertrax Offroad |
|---|---|
| Part number | WHS007 |
| UPC | 792334078205 |
| Material | 6061T6 aluminum |
| Finish | Anodized blue |
| Bolt pattern | 6 on 5.5 inch |
| Thickness | 1.25 inch |
| Centering | Wheel and hub centric |
| Stud and nut size | M12x1.5 metric |
| Quantity | 2 spacers, 12 studs (pre-installed), 12 lugnuts, Loctite |
Vehicle fitment
It fits front and rear late model Toyota axles that run hub centric wheels. Confirm the exact year, model and axle type for your vehicle before fitting.
Early model Toyota axles use a different setup and fall outside this fit. Verify your exact year, model and axle type before mounting.
Installation notes
Confirm your wheels use shank style lug nuts, since this kit is built for that style. Check tire and fender clearance after mounting the spacers.

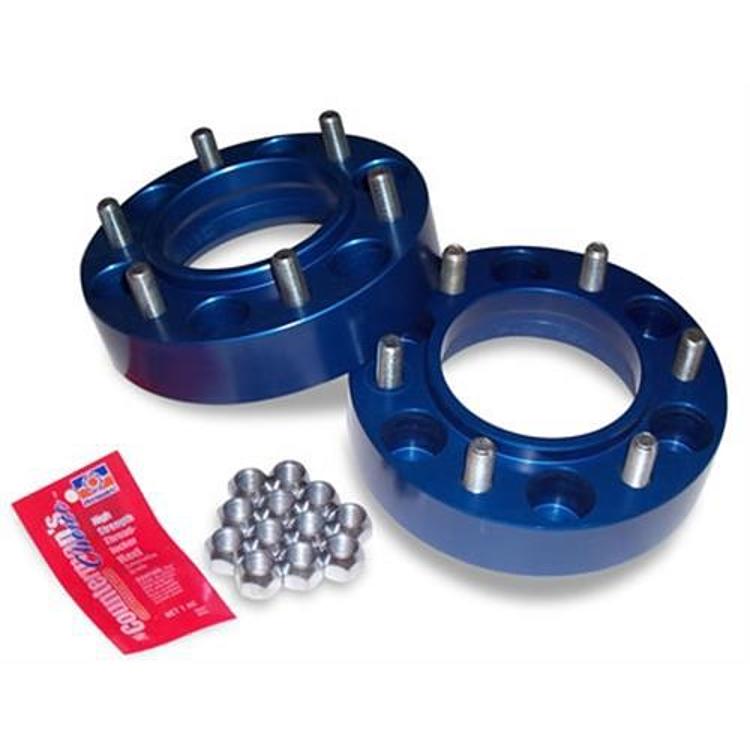

What’s included
Two wheel spacers, 12 metric M12x1.5 wheel studs (pre-installed), 12 M12x1.5 lugnuts and Loctite.
