Spidertrax Offroad Wheel Spacers (Anodized Blue) – WHS025

Spidertrax Offroad

$160.75In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 11:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pair of 1.5 in thick, 6 on 4.5 wheel spacers in anodized blue 6061T6 aluminum
  • Named for 2005-Up Xterra, 2005-Up Frontier and 2005-2012 Pathfinder axles running OE wheels
  • 12 M12x1.25 studs pre-installed, with 12 lug nuts and thread locker
  • Part number WHS025 from Spidertrax Offroad

Description

Overview

The Spidertrax Offroad WHS025 is a pair of blue anodized wheel spacers made from 6061T6 aluminum, 1.5 in thick, with a 6 on 4.5 bolt pattern. They space out the front and rear axles of 2005-Up Xterra, 2005-Up Frontier and 2005-2012 Pathfinder vehicles that run OE wheels.

Each kit comes with 2 wheel spacers, 12 metric M12x1.25 wheel studs pre-installed, 12 M12x1.25 lug nuts and thread locker. The spacers are both wheel and hub centric, and the anodizing is a double process meant to give twice the corrosion resistance.

Key features

  • 6061T6 aluminum construction
  • Blue double anodized finish
  • 1.5 in thickness
  • 6 on 4.5 bolt pattern
  • Wheel and hub centric design
  • Pre-installed studs with lug nuts and thread locker

Checking stud length

Longer studs are often needed once a spacer is added, because the wheel now sits farther out on the hub. A stud that reaches the nut with only a sliver of thread can strip under load, while one that runs too long can bottom out before the nut seats. Count the threads that engage the nut before driving, and make sure each nut reaches full seat.

Start by fitting the wheel with nuts snug and checking clearance at the caliper, brake hose and fender. Tighten the nuts in a star pattern in several passes. Thread locker helps hold the nuts, but it does not replace proper seating or periodic checks.

  • Count thread engagement on each stud
  • Fit the wheel with nuts snug before final tightening
  • Check caliper and brake hose clearance
  • Inspect the nuts again after the first drives

Specifications

Brand Spidertrax Offroad
Model code WHS025
UPC 799543561507
Material 6061T6 aluminum
Finish Anodized blue
Thickness 1.5 in
Bolt pattern 6 on 4.5
Quantity Sold as a pair
Wheel studs 12 metric M12x1.25, pre-installed
Lug nuts 12 M12x1.25

Vehicle fitment

They fit front and rear 2005-Up Xterra, 2005-Up Frontier and 2005-2012 Pathfinder axles that run OE wheels. Measure the 6 on 4.5 pattern and 1.5 in thickness against your hubs first, then confirm your model year and trim.

Installation notes

The studs come pre-installed and thread locker is included. Set the torque for the M12x1.25 studs carefully before driving.

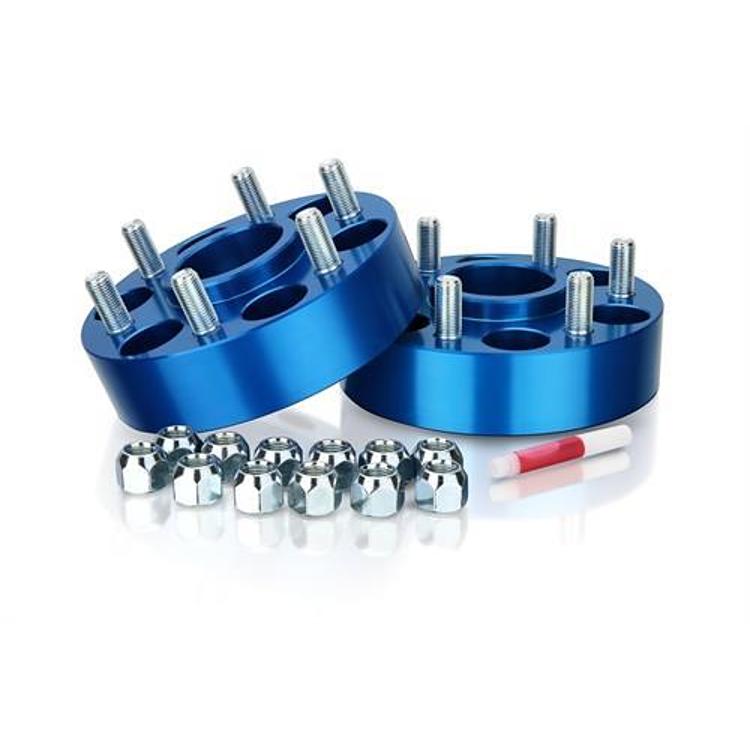

What’s included

Two wheel spacers, 12 pre-installed M12x1.25 studs, 12 M12x1.25 lug nuts, and thread locker.

SKU: SPIWHS025 Category:

Specification

Shipping weight 7.62 lbs
Package dimensions 7.00 × 7.00 × 4.50 in
brands

Questions & Answers

Do the WHS025 spacers fit a 2005 Nissan Xterra?

Yes, it fits front and rear 2005-Up Xterra axles that run OE wheels. Confirm your year, model and trim before ordering, and check the 6 on 4.5 pattern against your wheels.

What is the bolt pattern of the WHS025?

The bolt pattern is 6 on 4.5 in, and the spacers are 1.5 in thick. Both measurements should be compared with your vehicle before purchase.

How many studs and lug nuts come with the WHS025?

Each kit includes 12 metric M12x1.25 wheel studs pre-installed and 12 M12x1.25 lug nuts, plus thread locker and 2 wheel spacers.

Why might spacers need longer studs?

A spacer moves the wheel outward, so the lug studs must still reach far enough into the nut to hold full thread engagement. Measure stud exposure with the spacer fitted and the wheel loosely mounted before driving.
