Overview

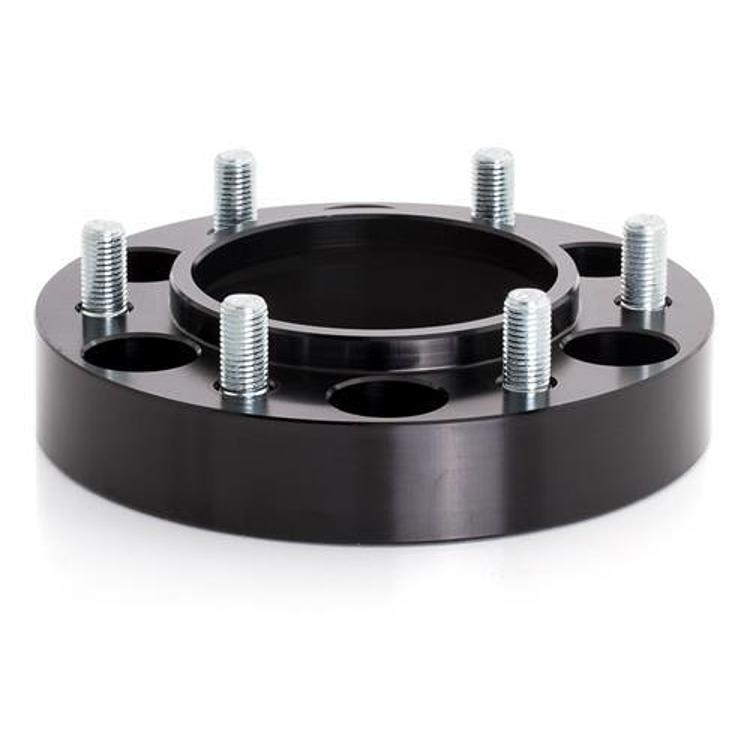

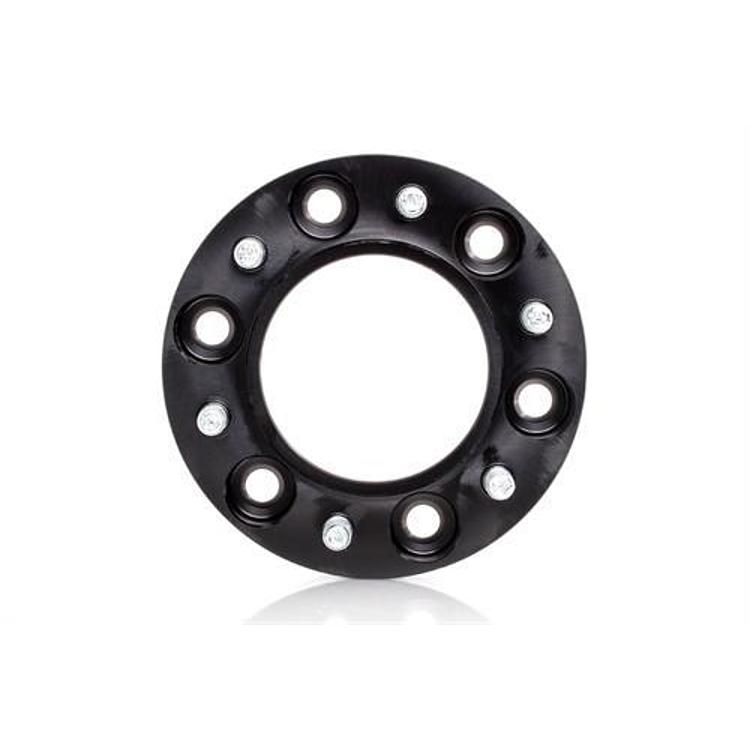

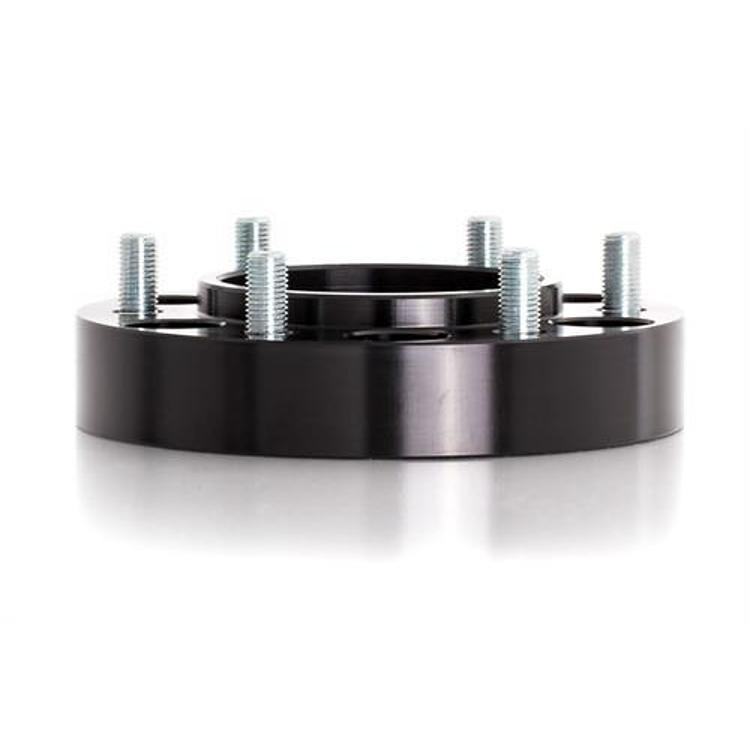

The Spidertrax Offroad Wheel Spacers in black are 1.25 inch thick, hub centric spacers for a 6 on 5.5 bolt pattern, machined from 6061T6 aluminum. They fit front and rear late model Toyota axles that run hub centric wheels with shank style lug nuts.
Each spacer is wheel centric and hub centric, giving a fit close to original equipment. A spacer pushes the wheel outward from the hub, so it changes how the wheel sits on the axle. The kit includes two spacers with the studs and nuts needed to mount them, and the spacers are double anodized in black for corrosion resistance.
Key features
- 1.25 inch thick spacers
- 6 on 5.5 bolt pattern
- Hub centric and wheel centric design
- Double anodized black finish for corrosion resistance
- Made in the United States of America, per the maker
- Includes 12 M12x1.5 wheel studs, pre-installed, and 12 M12x1.5 lug nuts
Shank style lug nuts explained
Shank style lug nuts have a long collar that slides into a matching hole in the wheel, which centers the nut and wheel on the stud. Conical nuts seat against a tapered hole instead. The two styles are not interchangeable, and a nut of the wrong style can look fully tight while the wheel rides loose. Identifying the style on your wheels is the first step before fitting any spacer.
Hub centric spacers rely on the hub bore to center the wheel, so the hub diameter should match the spacer. Look over the studs for bends or thread damage before reuse. Keep the nuts clean, and apply thread locker only to the threads, not the seat, to avoid altering the clamp load.
- Identify the lug nut style before fitting
- Keep the seat surfaces clean and dry
- Inspect studs for bends or damaged threads
- Apply thread locker to threads only
Specifications
| Brand | Spidertrax Offroad |
|---|---|
| UPC | 10245685903 |
| Type | Spacer |
| Bolt pattern | 6 on 5.5 |
| Thickness | 1.25 inch |
| Material | 6061T6 aluminum, double anodized |
| Color | Black |
| Centering | Hub centric and wheel centric |
| Included studs and nuts | 12 M12x1.5 wheel studs (pre-installed), 12 M12x1.5 lug nuts |
| Quantity | 2 spacers |
Vehicle fitment
The intended fit is late model Toyota front and rear axles with hub centric wheels and shank style lug nuts. Make sure your wheels use that setup before ordering.
Other Toyota generations fall outside the late model axles above, so confirm your axle type before ordering.
Installation notes
The wheel studs come pre-installed, and Loctite is included with the kit. Because a spacer moves the wheel outward, confirm stud length and wheel clearance before driving, and recheck lug nut torque after the first drive.
What’s included
Two aluminum wheel spacers, 12 metric M12x1.5 wheel studs (pre-installed), 12 M12x1.5 lug nuts, and Loctite.
