Overview
The Spidertrax Offroad WHS005 is a pair of 6 on 5.5 inch wheel spacers, 1.50 inch thick, for spacing out the front and rear axles on early model Toyotas. Confirm fit by year, model and axle type before ordering.
The spacers are made from 6061T6 aluminum, anodized blue, and are hub centric. Spacing the wheel outward on the hub can help wider tires clear the body.
Key features
- 6 on 5.5 inch bolt pattern with a 1.50 inch thickness
- Blue anodized 6061T6 aluminum body
- Hub centric design
- Fits wheels with conical style lug nuts.
- Made in the United States.
- Kit includes 12 M12x1.5 studs and 12 lug nuts
Clearance and torque checks
Wheel spacers move the wheel outward, which changes the clearance to brake calipers, suspension parts and fenders. Check each of these after mounting, and turn the wheel by hand to look for rubbing. Clearance changes are most noticeable at full steering lock and when the suspension compresses.
Spacers also change the load on the hub and studs, so inspect the stud threads for damage before fitting. Clean the hub face and the spacer seating surface to remove rust or debris. Retorque the lug nuts after the first few drives, since the seats can settle slightly.
- Check brake caliper clearance
- Inspect studs for thread damage
- Keep the hub face clean and free of rust
- Retorque lug nuts after the first few drives
Specifications
| Brand | Spidertrax Offroad |
|---|---|
| Part number | WHS005 |
| UPC | 992004818779 |
| Material | 6061T6 aluminum |
| Finish | Anodized blue |
| Bolt pattern | 6 on 5.5 inch |
| Thickness | 1.50 inch |
| Centering | Hub centric |
| Stud and nut size | M12x1.5 metric |
| Quantity | 2 spacers, comes as a pair, with 12 studs and 12 lug nuts |
Vehicle fitment
These spacers fit early model Toyota axles. Confirm your year, model and axle type before fitting.
Confirm your vehicle’s year, model and trim before ordering, especially for late model Toyota axles.
Installation notes
Confirm your wheel seat type before fitting, since these use conical style lug nuts. Spacers push the wheel outward, so check tire and fender clearance once mounted.
What’s included

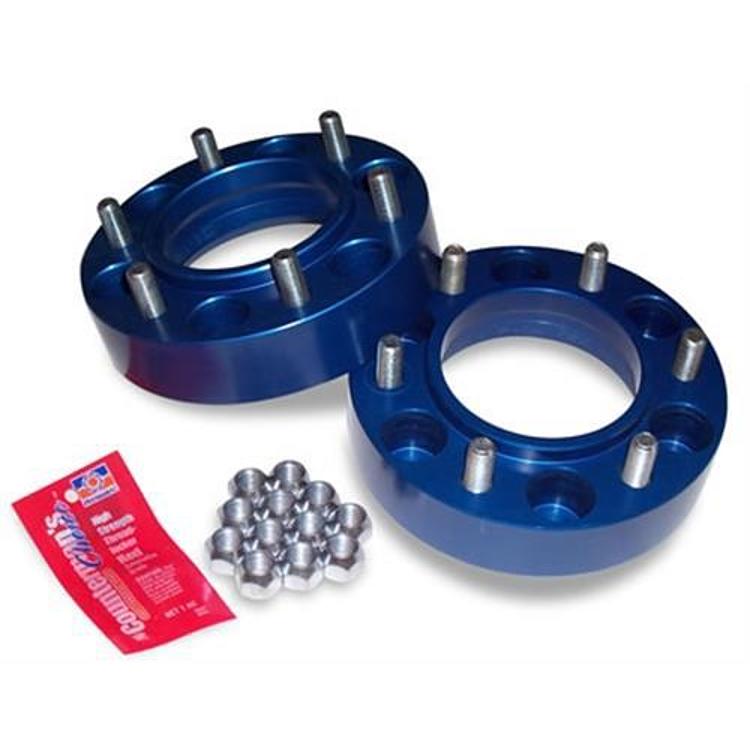

Two wheel spacers, 12 metric M12x1.5 wheel studs (pre-installed), 12 M12x1.5 lug nuts and Loctite.
