Overview

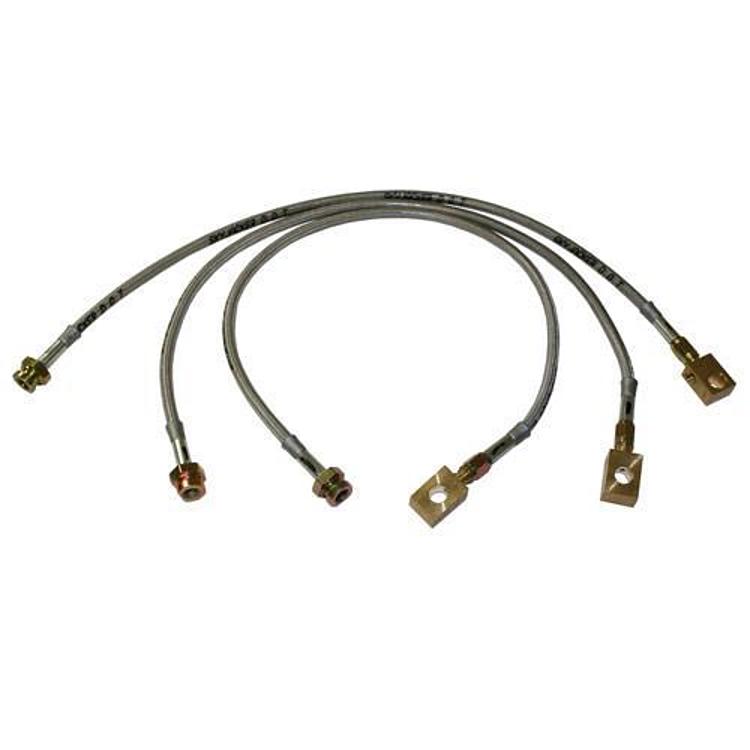

The Skyjacker FBL13 is a pair of front stainless steel braided brake lines for lifted vehicles, with a 6 Inch – 8 Inch lift height range. It has DOT certification and European T.U.V. approval, a polyurethane outer coating and heavy duty off-road brass fittings. It is a direct fit for lifted vehicles at 6 Inches Plus.
Key features
- Stainless steel braided construction
- Heavy duty off-road brass fittings
- Outer extruded polyurethane coating
- DOT certified and European T.U.V. approved
- Street legal in 50 states.
Brake line routing after a lift
Lifting a truck lengthens the distance between the frame and the wheels, so the brake lines need enough slack to flex through full suspension travel. Stainless braided lines resist abrasion better than rubber, but they still need clearance from exhaust parts, sharp edges and moving linkage. Routing that keeps the line away from heat and rubbing is part of a safe installation.
After replacing brake lines, the system must be bled to remove air and the pedal checked for firmness before driving. Inspect each fitting for seepage once the pressure is restored, and recheck clip positions after the first off-road outing, when flex is greatest.
- Keep clear of exhaust heat
- Check clips after the first trail run
- Inspect fittings for seepage
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | FBL13 |
| UPC | 803696130545 |
| Product type | Front brake line |
| Quantity | Pair |
| Position | Front |
| Lift height | 6 Inch – 8 Inch |
| Construction | Stainless steel braided |
| Fittings | Heavy duty off-road brass |
| Outer coating | Extruded polyurethane |
| Certification | DOT certified; European T.U.V. approved |
| Application | Direct fit, lifted 6 Inches Plus |
| Warranty | Limited lifetime |
Vehicle fitment
Check fit against your vehicle’s year, model and lift before buying.
Installation notes
Brake line work affects hydraulic pressure, so have the lines installed and the brakes bled by a qualified technician.
What’s included
A pair of front brake lines. Have fluid and hardware ready before starting work.
