Overview

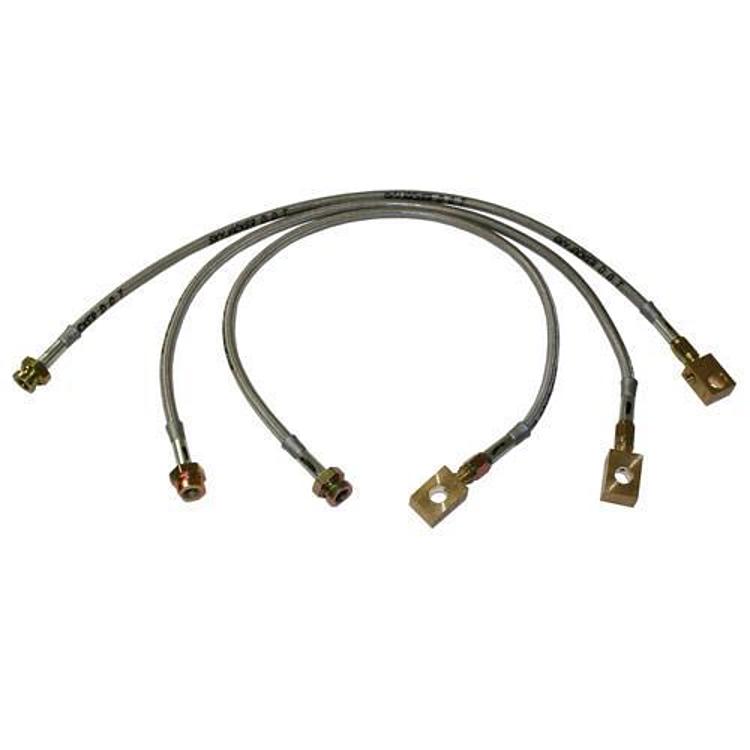

The Skyjacker FBL30 is a pair of front stainless steel brake lines for the 1984–1995 Toyota 4Runner and the 1980–1995 Toyota Pickup, sized for 3 to 7 inches of lift.
The lines use a braided stainless steel construction with heavy-duty off-road brass fittings and an extruded polyurethane outer coating. Skyjacker states they are DOT certified and approved by the European T.U.V.
Key features
- Front position, supplied as a pair
- Lift range of 3 inches to 7 inches
- Braided stainless steel with polyurethane outer coating
- Brass fittings rated by Skyjacker as heavy-duty for off-road use
- DOT certified and European T.U.V. approved
- Limited lifetime warranty
Why stainless brake lines
Factory rubber brake hoses are not designed for the extra length and flex that come with a suspension lift. Braided stainless lines resist swelling under pressure, so the pedal feel stays firmer and more consistent when the axle moves up and down on the trail. Routing matters, so the line should clear the frame, axle and steering parts through full travel.
Check the lines regularly for chafing, leaks at the fittings and wear on the outer coating. Brake fluid should be checked at the same time, and the system should be bled after any line is replaced. A pair of front lines is commonly replaced together so both sides match.
- Inspect fittings for seepage
- Check clearance at full steering lock
- Bleed the brakes after replacement
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | FBL30 |
| UPC | 803696130781 |
| Type | Braided stainless steel brake lines |
| Position | Front |
| Quantity | Pair |
| Lift height | 3 inches to 7 inches |
| Fittings | Heavy-duty off-road brass |
| Outer coating | Extruded polyurethane |
| Approvals | DOT certified, European T.U.V. approved |
| Fitment type | Direct fit |
| Warranty | Limited lifetime |
Vehicle fitment
It is a direct fit for the 1984–1995 Toyota 4Runner and the 1980–1995 Toyota Pickup.
Other Toyota models, such as the Land Cruiser and Tacoma, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
