Overview

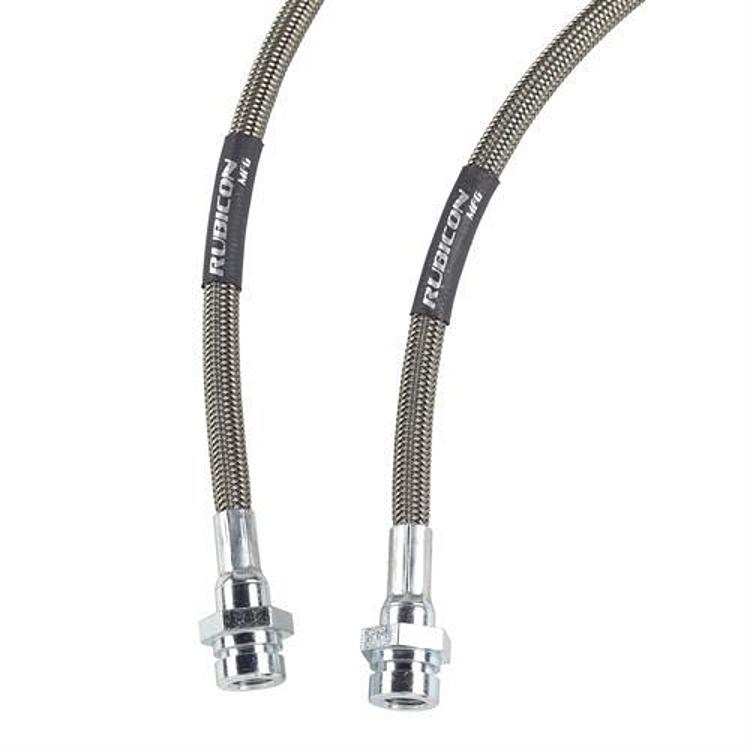

The Rubicon Express 22 inch front brake line set is a pair of front lines, each 22 inches long. They have a woven stainless steel outer shell that protects the rubber and kevlar casing housing around a Teflon inner hose.
The set covers lifted applications from 4 to 6 inches. Mounting brackets come with the set where they are needed, and the lines are built to DOT specifications.
Key features
- 22-inch front length
- Woven stainless steel outer shell
- Rubber and kevlar casing
- Teflon inner hose
- Sold as a pair
- Built to DOT specifications
Front lines and steering travel
Front brake lines move with the steering and the suspension, so they see more flex than rear lines. On a lifted front end, the arc of travel grows, which makes routing and bracket placement important. Both lines of a pair should be checked for the same clearance, since one line that rubs will wear before the other.
Woven stainless steel resists abrasion, but the rubber and kevlar casing still needs regular checks. Look for chafing near the steering components, kinks after a hard turn and weeping at the fittings. When a line is replaced, bleed the system and confirm the new run has the same clearance as the old one.
- Check both lines at full left and right lock
- Look for kinks or chafing near the steering components
- Replace the pair if one line shows wear and the other is original
Specifications
| Brand | Rubicon Express |
|---|---|
| UPC | 614901438635 |
| Length | 22 inches |
| Position | Front |
| Lift range | 4 to 6 inches |
| Sold as | A pair |
Vehicle fitment
Confirm fit for your vehicle’s year, model, trim and lift height before ordering a 22-inch front set, since the length must suit your suspension travel.
Installation notes
Bleed the system after the lines are installed, and make sure both front lines clear the tires and suspension at full travel.
What’s included

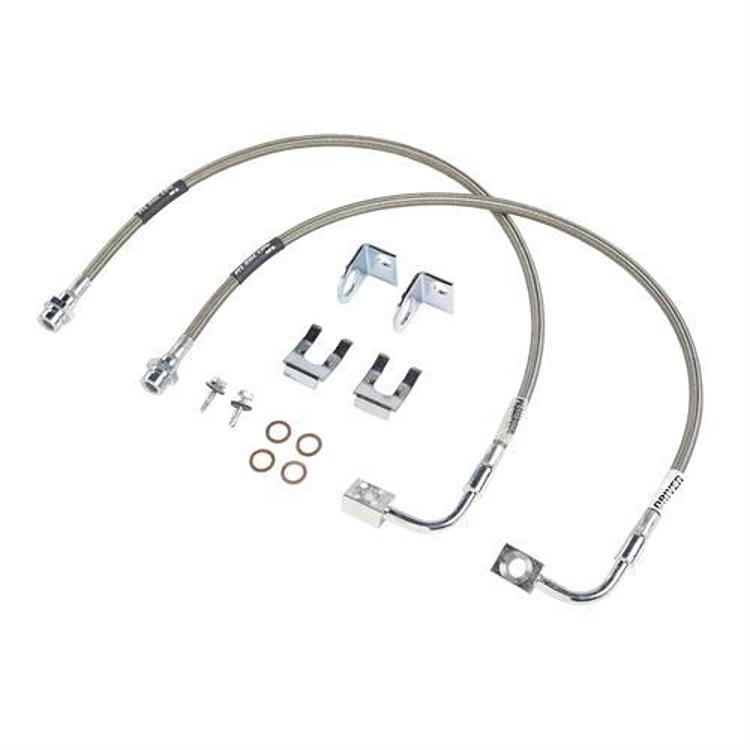

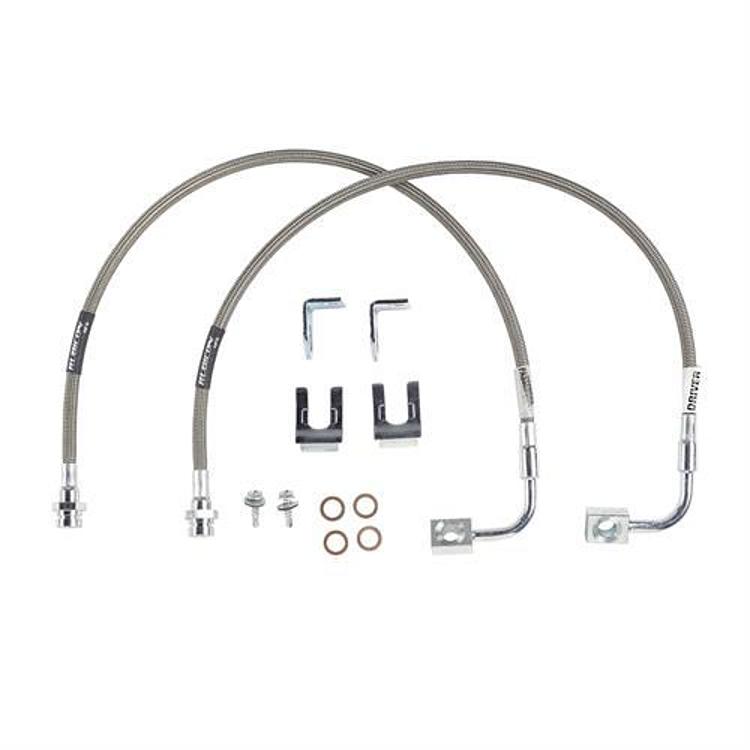

A pair of 22-inch front brake lines and any brackets needed.
