Overview
The Rubicon Express RE1550 is a 22-inch front brake line set for several older Jeep models. The lines have a woven stainless steel outer shell that protects the rubber and kevlar casing around a Teflon inner hose.
The set is 22 inches long, is stainless steel, and covers lifted applications from 4 to 6 inches. Mounting brackets are included where necessary, and the lines are built to DOT specifications.
Key features
- 22-inch front length
- Woven stainless steel outer shell
- Rubber and kevlar casing
- Teflon inner hose
- Mounting brackets where necessary
- Built to DOT specifications
Older Jeep brake line upkeep
Older Jeep models often have brake lines that have been in service for many years, so their rubber sections can harden or crack even when the fluid system seems fine. A front line set replaces those aging parts at the same time, which keeps the system consistent. Mounting points on the frame and axle also collect rust, and that corrosion can hide a weak bracket.
When the lines are open for replacement, inspect the rest of the front system as well. Look at the fittings, the hoses that join the lines and the mounting clips. Clean any rust from the bracket points before reinstalling, and make sure the lines are routed clear of moving parts and the tires at full turn.
- Look for cracks or hardening in rubber sections
- Check frame brackets for rust and loose mounts
- Confirm full steering lock clears the lines
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE1550 |
| UPC | 614901438628 |
| Length | 22 inches |
| Position | Front |
| Material | Stainless steel |
| Lift range | 4 to 6 inches |
Vehicle fitment
Based on the title, this front set is for the Jeep TJ (1997 to 2006), LJ (2004 to 2006), XJ (1984 to 2001), Comanche MJ (1986 to 1992), ZJ (1993 to 1998) and CJ7 for 1982 to 1986.
The fitment is based on the title’s model list and year range for the CJ. Other Jeep models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Bleed the system after the lines are fitted, and confirm the 22-inch lines clear the suspension at full travel.

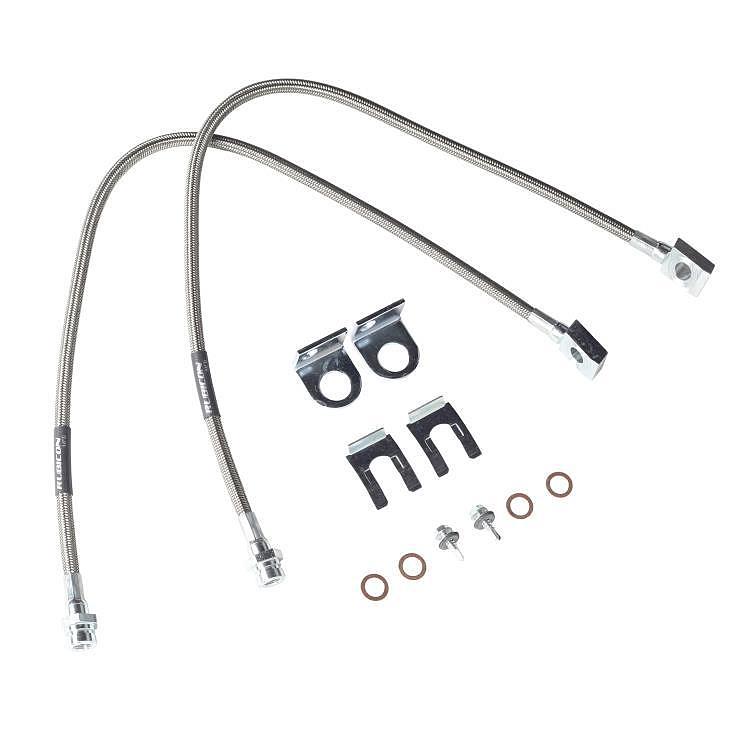

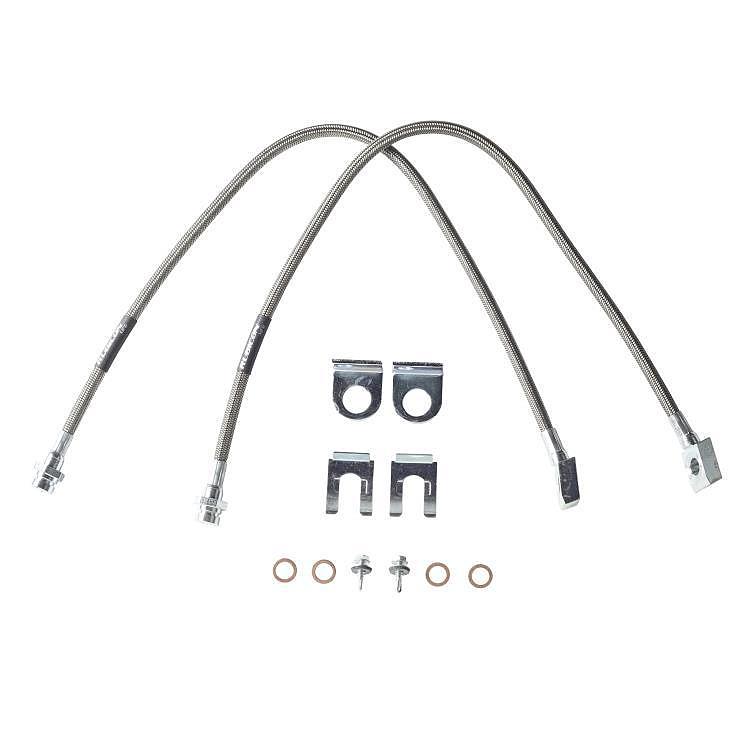

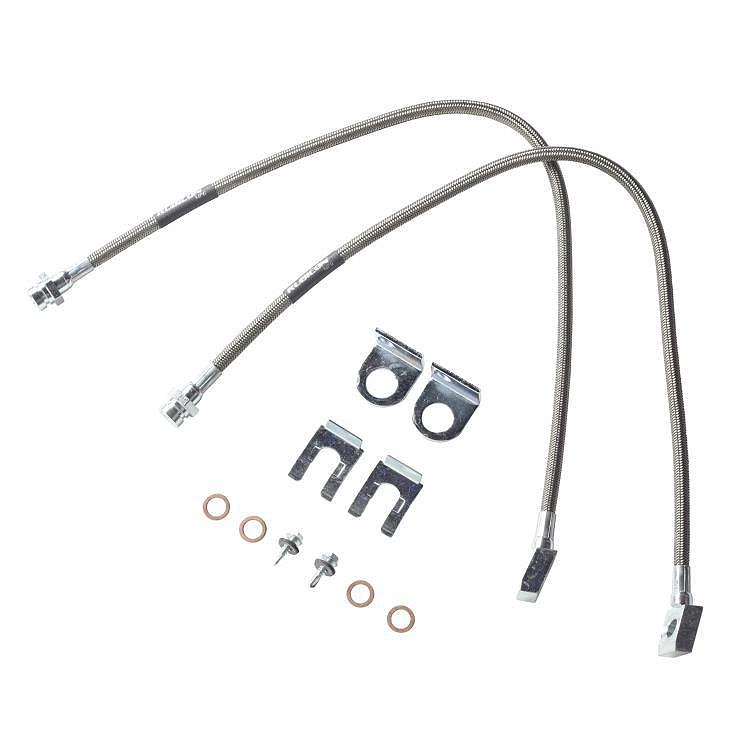

What’s included
A 22-inch front brake line set and any brackets needed.
