Rubicon Express 3.5 Inch Extreme Duty Radius Front/Rear 4-Link Long Arm Lift Kit with Fox Performance Resi Shocks- JKR443FPR

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch extreme duty radius 4-link long arm lift kit, JKR443FPR
  • Chromoly upper and lower control arms
  • Adjustable control arms with Super-Flex spherical ball joints
  • Pt-Meg Super-Ride bushings

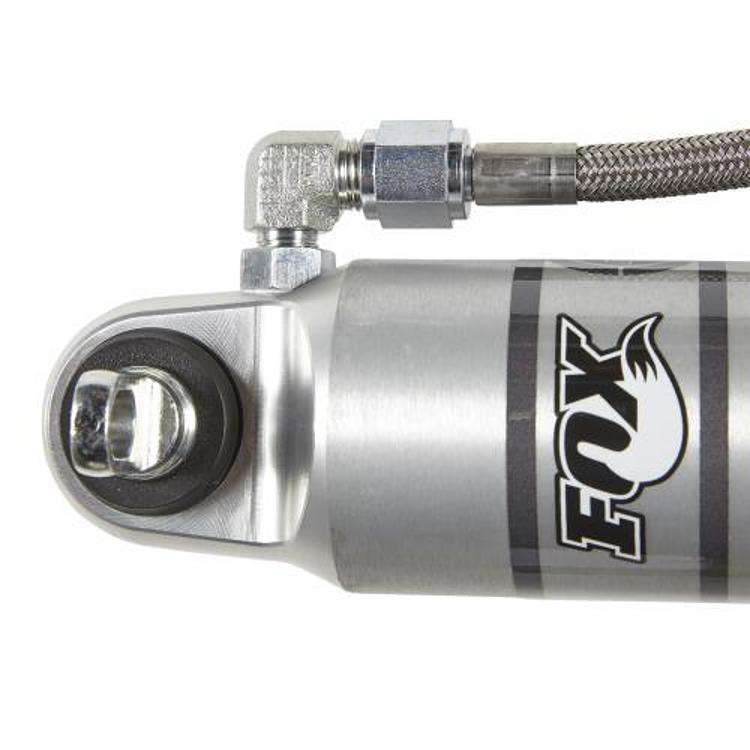

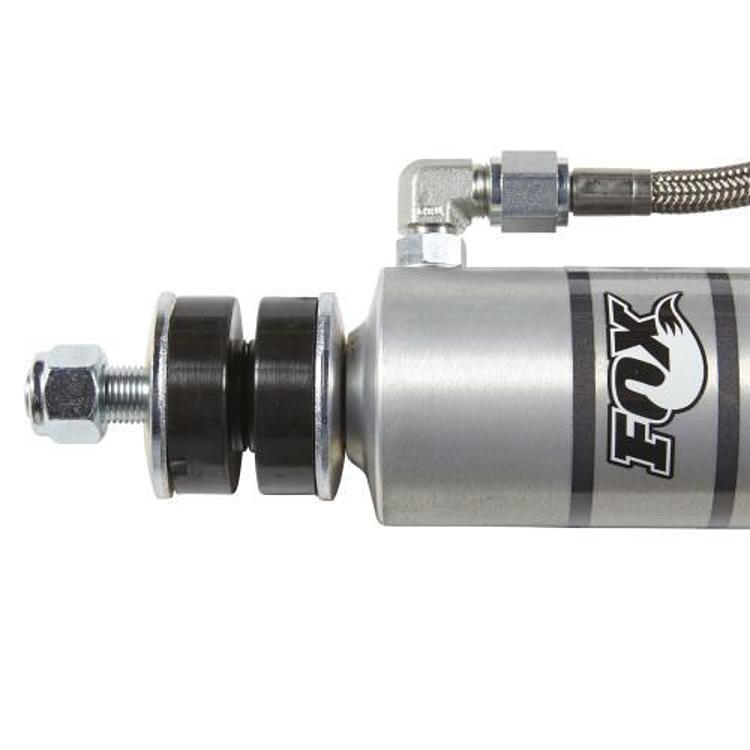

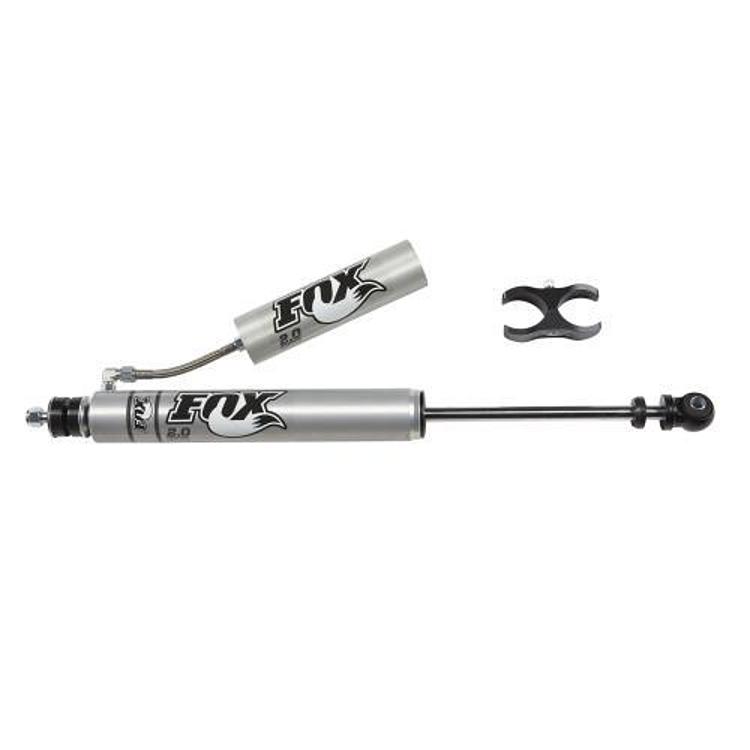

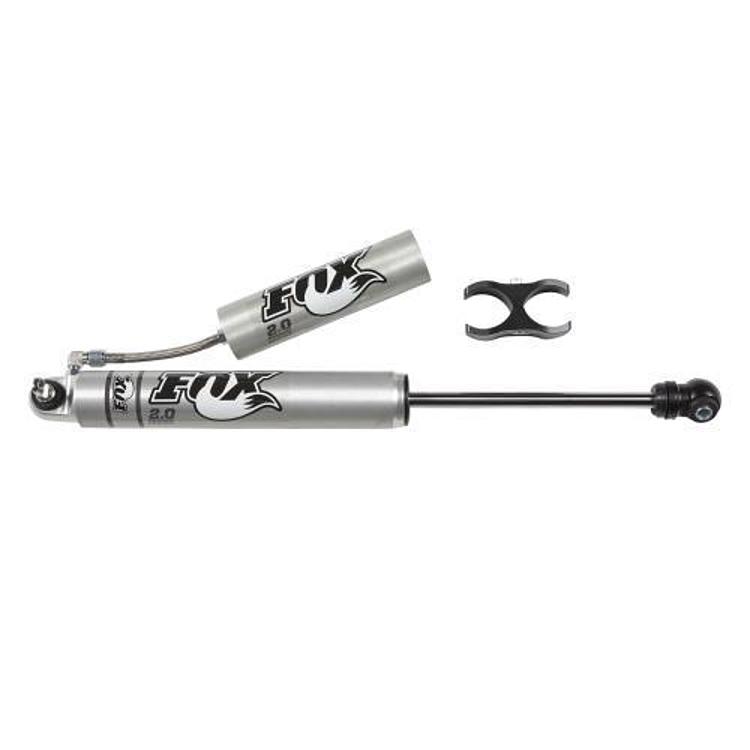

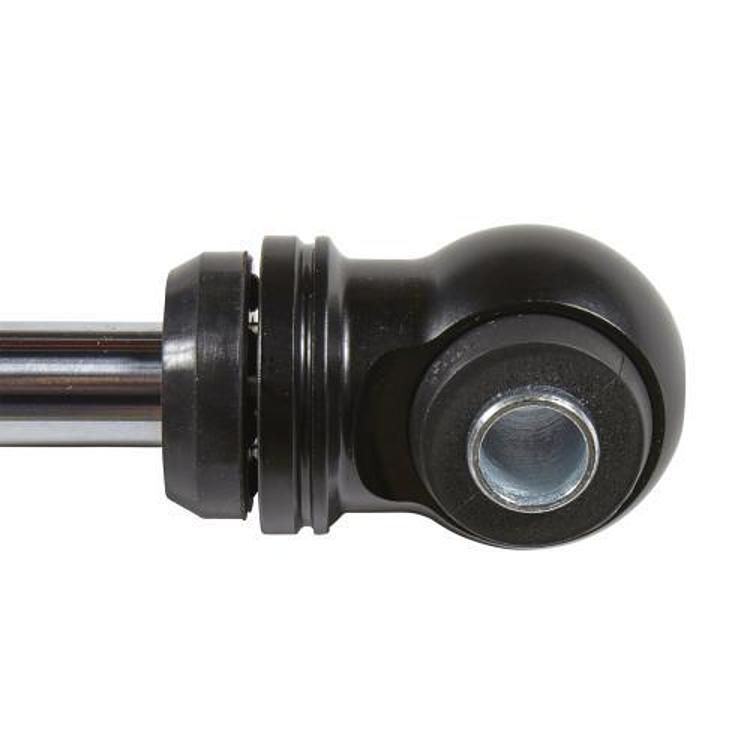

  • Front and rear Fox Performance Resi shocks
  • Full width transmission crossmember, no welding required

Description

Overview

The Rubicon Express JKR443FPR is a 3.5 inch extreme duty lift kit for the Jeep Wrangler JK. It uses a radius front and rear 4-link long arm system designed for the most popular JK suspension systems.

The control arms are chromoly and adjustable, with Super-Flex spherical ball joints and Super-Ride bushings. A full width transmission crossmember is part of the kit, and it installs without welding.

Front and rear Fox Performance Resi shocks are included. The FOX Performance Series shocks are covered by the FOX warranty and are not eligible for the Rubicon Express Advantage Warranty.

Key features

  • Radius front and rear 4-link long arm system
  • Chromoly upper and lower control arms
  • Adjustable control arms
  • Super-Flex spherical ball joints
  • Super-Ride bushings
  • Front and rear Fox Performance Resi shocks
  • Full width transmission crossmember
  • No welding required

Long arm geometry and driveline

Long arms change how the axle moves, controlling wheel travel through a link geometry that differs from a stock leaf or coil setup. On a radius 4-link, the arms carry braking and acceleration forces, so the mounts and bushings take more load than they would on stock parts. Inspect the bushings and mounts for cracking or play after rough trail use, since they are the first place wear shows up.

Because the axle location changes, driveline angles need attention. Check the pinion angle and the drive shaft after the install, and confirm the exhaust clears the new arm positions. Steering components and shock mounts are often checked alongside long arms, and they should be verified for fit before the first drive.

  • Torque all arm fasteners after the first drive
  • Check driveline angles at the axle and transfer case
  • Confirm exhaust clearance at full axle travel

Specifications

Brand Rubicon Express
Part number JKR443FPR
Lift height 3.5 inch
Lift height range 2.5 to 3.5 inches
Suspension type Extreme duty radius front and rear 4-link long arm
Control arm material Chromoly
Ball joints Super-Flex spherical
Bushings Super-Ride
Shocks Fox Performance Resi, front and rear
Crossmember Full width transmission
Welding None required
Warranty FOX warranty on the shocks

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler (JK). Make sure year, model and trim match your vehicle before you order.

The JL, the Gladiator, and the older TJ and LJ are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

For 2012 and later trucks, an exhaust modification or a front drive shaft may be required. Long arm kits change the axle location and driveline angles, so have both checked after installation.

What’s included

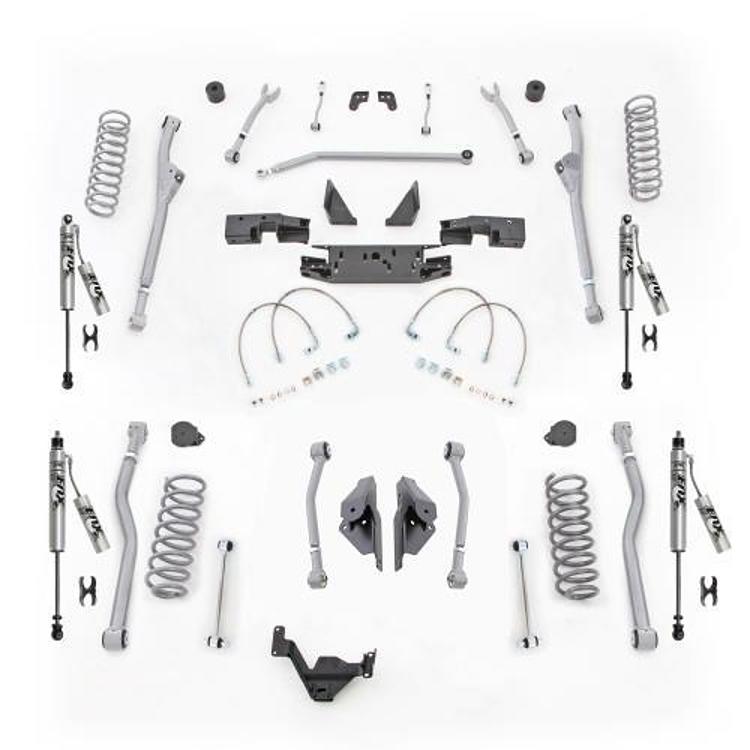

Chromoly upper and lower control arms, the radius arms or radius arm brackets, the full width transmission crossmember, Super-Flex spherical ball joints, Super-Ride bushings and front and rear Fox Performance Resi shocks.

SKU: R/EJKR443FPR Category:

Specification

Shipping weight 300.05 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JKR443FPR fit a Jeep Wrangler JK?

Yes. It fits the 2007–2018 Jeep Wrangler (JK), which is the JK generation this radius 4-link long arm system is built for. Confirm the year and model before ordering.

Does this kit need welding?

No welding is required for installation, and a full width transmission crossmember is part of the package. Plan the install around the crossmember and arm brackets before you start.

What control arm material is used?

The upper and lower control arms are chromoly, and they are adjustable with Super-Flex spherical ball joints. The control arms are part of the radius long arm system.

How do I know when the arm bushings need replacing?

Look for clunking over bumps, wandering on the highway, or visible cracks and tears in the rubber. Bushings that move on the mount or show separation should be replaced, and checking them at regular service intervals catches wear early.
