Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link and Mono Tube Shocks – RE7515M

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7515M 5.5 inch Extreme-Duty long arm lift kit with rear Tri-Link and mono tube shocks
  • Listed fit: 2003–2006 Jeep Wrangler TJ
  • Chromoly long arms, Builder Ball misalignment joint and tuned lift springs
  • Mono tube shocks included; lift range 5 to 6.99 inches

Description

Overview

The Rubicon Express RE7515M is a 5.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link and mono tube shocks for the 2003–2006 Jeep Wrangler TJ. The lift height range is 5 to 6.99 inches.

The kit replaces the stock suspension arms with longer control arms. Rubicon Express designed it as a complete suspension replacement that improves lifted geometry, adding stability on and off road over a standard short arm lift.

The rear Tri-Link replaces the rear track bar, letting the axle move without a side bar. It adds anti-squat for steep climbs, and the Builder Ball misalignment joint works with it.

Key features

  • 5.5 inch lift with a listed range of 5 to 6.99 inches
  • Chromoly long arms built from 4130 chromoly tubing
  • Rear Tri-Link that replaces the rear track bar
  • Builder Ball misalignment joint, rated for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Mono tube shocks included
  • Tuned lift springs and stainless steel brake lines

Mono tube shock considerations

Mono tube shocks use a single tube with a separate gas chamber, which is why they are often chosen for steady damping during repeated hard use. On a long travel lifted Jeep, that steadier feel can help on long washboard stretches where heat builds in the shock.

Monitor the shocks after the first few trail trips. Look for fluid on the shaft, loose or cracked mounting eyes and bushings that have worn out. Keep the shock mounts clean and check that travel is not limited by the bump stops or brake lines.

When the stock setup is replaced, shock length and mount position must match the new arms and Tri-Link. Do not reuse worn hardware from the old suspension.

  • Check shock eyes for cracks
  • Replace worn bushings in matched pairs

Specifications

Brand Rubicon Express
Part number RE7515M
UPC 614901452969
Lift height range 5 to 6.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing
Shocks included Yes, mono tube
Fitment Direct fit

Vehicle fitment

It fits the 2003–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara and Sport models.

Fit covers 2003–2006 TJ models only. Compare model year and trim with your own Jeep before ordering.

Installation notes

A 5 to 6.99 inch lift changes alignment and driveline angles, so both need checking once installed. The kit bolts on to factory Dana 35 and Dana 44 rear axles.

What’s included

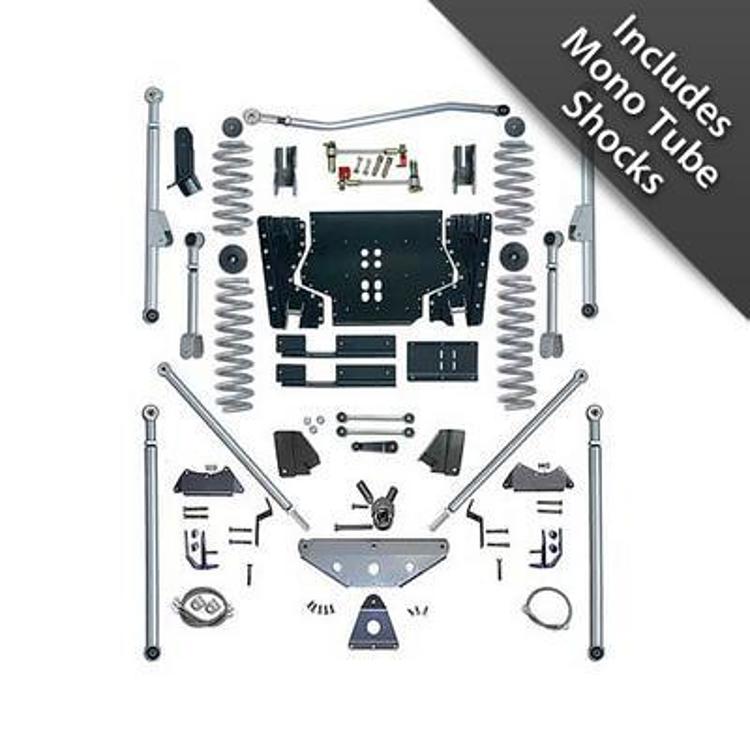

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, mono tube shocks, tuned lift springs, PT-Meg Super-Ride bushings, stainless steel brake lines and a three-piece belly pan.

SKU: R/ERE7515M Category:

Specification

Shipping weight 427.95 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7515M include shocks?

Yes. Mono tube shocks are included with the long arm kit, so the shock replacement is part of the same kit as the control arms and the 5 to 6.99 inch springs.

Does the RE7515M fit a 2003 Jeep Wrangler TJ?

Yes. It fits 2003 to 2006 Wrangler TJ models, including SE, Sahara and Sport trims. Confirm the body style before ordering.

Does the RE7515M replace the rear track bar?

Yes. The rear Tri-Link takes the place of the track bar, and the Builder Ball is the misalignment joint used with it.

How do I tell when mono tube shocks need replacing?

Look for fluid leaking down the shaft, clunking over bumps or a bouncy ride that does not settle. Check the mounting eyes for cracks and the bushings for wear. Replace worn shocks in pairs so both sides of the axle keep even damping.
