Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar – No Shocks – RE7214

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch long arm lift, no shocks, 3 to 4.99 inches of range
  • Fits 2003–2006 Jeep Wrangler TJ
  • Chromoly arms with tuned lift springs
  • Rear track bar included

Description

Overview

The Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar, No Shocks (part number RE7214), is a long arm suspension lift for the 2003–2006 Jeep Wrangler TJ. The stated lift height range is 3 to 4.99 inches, and shock absorbers are not included.

The long arm design replaces the factory arms with longer control arms, which improves lifted geometry. That geometry adds stability on and off road, and the extended arms are built for trail use.

Shock absorbers are not part of this kit, so choose a shock sized for the 3 to 4.99 inch range. Tuned lift springs and a rear track bar are included. Check whether new brake lines are needed before the long arms are installed.

Key features

  • Chromoly long arms
  • PT-Meg Super-Ride bushings
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Tuned lift springs

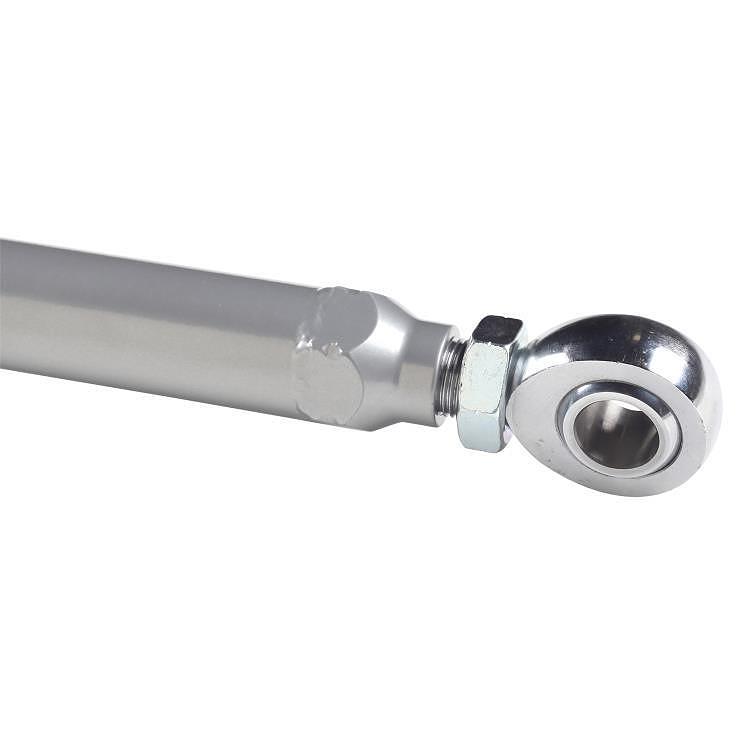

  • Rear track bar included
  • Three-piece belly pan for transfer case and transmission access

Choosing shocks for this lift

A long arm lift moves the axle on longer control arms, so the geometry at both ends of the vehicle changes once the kit is in. Shock length and damping matter more after a lift because the wheels travel through a different range. When picking shocks for this range, look for units built for the height you run and for your tire size. Mismatched shocks can bottom out or limit droop, so measure the old units before ordering.

Long arms, springs and the track bar are often replaced together, because the track bar bracket and the alignment depend on the new arm position. After installation, recheck the bolts once the vehicle has been driven a short distance, and have the alignment set by a shop that works on lifted trucks. Watch the shock mounts and the bushings for wear over time, especially on trail-driven Wranglers.

  • Shock length matched to the lift height
  • Brake line length checked after the install
  • Bushing and ball joint wear inspected each season

Specifications

Brand Rubicon Express
Part number RE7214
Lift height range 3 to 4.99 inches
Suspension type Extreme-Duty long arm
Rear lift method Coil springs
Shock absorbers Not included
Fitment type Direct fit

Vehicle fitment

This kit installs on 2003–2006 Jeep Wrangler (TJ) models, across the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.

The 1997–2002 TJ and the LJ Unlimited are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Since no shocks are supplied, the shocks should be selected for the 3 to 4.99 inch range before the install. The long arms replace the factory arms, so the alignment should be set afterward. Check the shock mounts and the track bar bracket fit before the arms are fully tightened.

What’s included

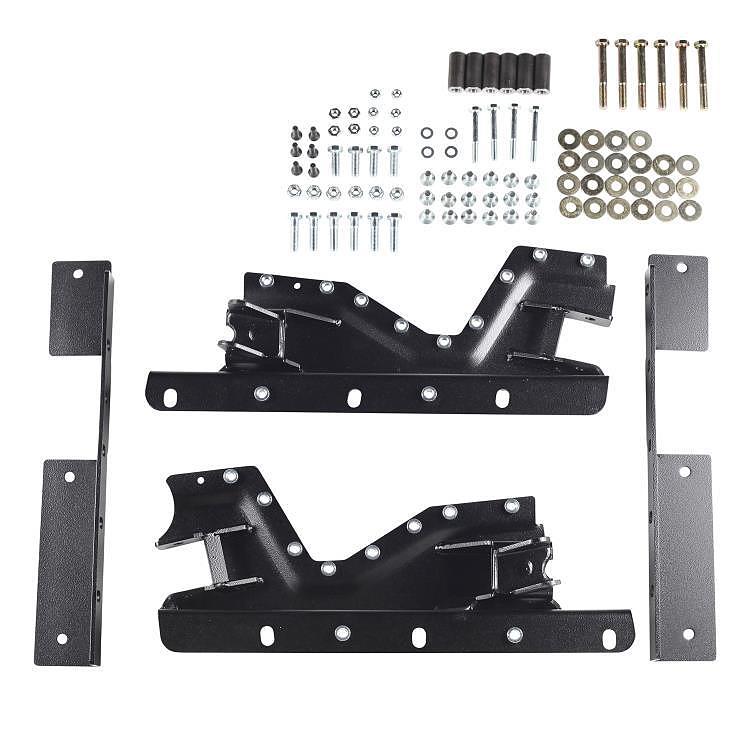

Tuned lift springs, chromoly long arms, PT-Meg bushings and Super-Flex spherical ball joints, a rear track bar and a three-piece belly pan.

Not included: shock absorbers.

SKU: R/ERE7214 Category:

Specification

Shipping weight 363.90 lbs
Package dimensions 48.00 × 24.80 × 24.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rubicon Express RE7214 include shocks?

No. Shock absorbers are not included with the RE7214, so a shock matched to the 3 to 4.99 inch lift range must be bought separately before installing the kit.

Will the RE7214 fit a 2005 Jeep Wrangler TJ?

Yes. The RE7214 fits 2003–2006 Jeep Wrangler TJ models, so a 2005 model is covered. Confirm your vehicle's year, model and trim before ordering.

Does the RE7214 come with brake lines?

Before installing the long arms, check whether new brake lines are needed, since the kit's contents do not cover them and the ride height changes.

How can I tell if the shocks need replacing after the lift?

Look for fluid leaks, dented shock bodies, and a bouncy ride over washboard or after hard trail use. Worn shocks can also cause uneven tire wear and reduced control. If any of these signs appear, replace the pair so both sides match.
