Overview
The Rubicon Express RE7143FP is a Super-Flex short arm lift kit for the Jeep Wrangler JK, supplied with front and rear Fox Performance shocks. Rubicon Express designed the system for both on-road and off-road use.
The arms are adjustable at the upper position and fixed at the lower position. Serviceable Super-Flex spherical ball joints and new Super-Ride bushings make up the arm joints, and the listed lift height range is 2.5 to 3.5 inches.
The FOX Performance shocks are covered by the FOX warranty and are not eligible for the Rubicon Express Advantage Warranty.
Key features
- Short arm system
- Adjustable upper control arms
- Fixed lower control arms
- Serviceable Super-Flex spherical ball joints
- New Super-Ride bushings
- Front and rear Fox Performance shocks
Short arm joint care
Short arm systems replace the stock control arms with shorter units that hold the axle in a new position. Because the arms carry steering and braking loads, their joints and bushings matter as much as the springs. Looking after the arm joints is the simplest way to keep a short arm setup feeling precise.
Serviceable spherical ball joints can be greased and replaced without replacing the full arm, which helps keep long-term costs manageable. Check the boots for splits, feel for play by hand and listen for clunks over bumps. Uneven tire wear along the inside or outside edge often points to a geometry problem that needs checking.
Upper arms with adjustment points allow caster and alignment changes, so set them carefully and recheck the alignment once the arms are installed. Bushings that wear out early can make steering wander, so inspect them at regular service intervals. Keep a written log of settings for each service.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7143FP |
| Suspension type | Super-Flex short arm |
| Lift height range | 2.5 to 3.5 inches |
| Upper control arms | Adjustable |
| Lower control arms | Fixed |
| Ball joints | Serviceable Super-Flex spherical |
| Bushings | New Super-Ride |
| Shocks | Fox Performance, front and rear |
| Rear lift | Short arm with coil springs |
| Warranty | FOX warranty on the shocks |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK), the JK range this kit is built for.
It is not a fit for the JL, the Gladiator, the TJ or the LJ. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
For 2012 and later trucks, an exhaust modification or a front drive shaft may be required. Have the alignment checked after the adjustable upper arms are set.
What’s included

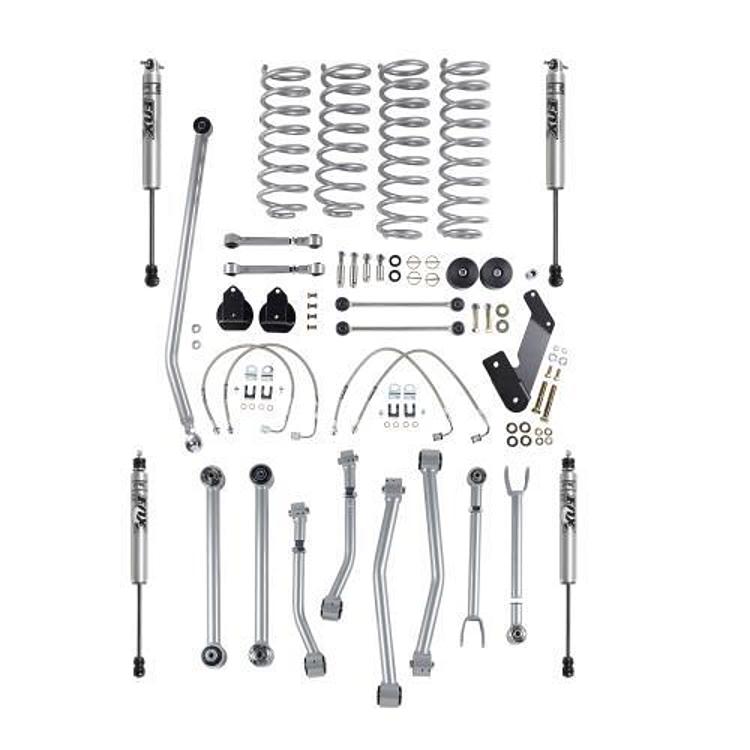

A short arm suspension system with adjustable upper control arms, fixed lower control arms, Super-Flex spherical ball joints, new Super-Ride bushings and front and rear Fox Performance shocks.
