Rubicon Express 2.5″ Super-Ride Lift Kit with FOX Performance Shocks – JL7100FP

Rubicon Express

Shop Jeep Wrangler JL Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 4-door 2018–2026 Jeep Wrangler Unlimited (JL) models.
  • 2.5-inch Super-Ride short arm lift with FOX Performance shocks
  • Front lower arms of 1.75-inch 4130 chromoly
  • Extended sway bar end links and bump stops
  • Part number R/EJL7100FP (JL7100FP)

Description

Overview

The Rubicon Express JL7100FP is a 2.5-inch Super-Ride lift kit with FOX Performance shocks for the 2018–2026 Jeep Wrangler Unlimited JL. It is a direct fit for the 4-door Moab, Rubicon, Sahara, Sport and Sport S trims.

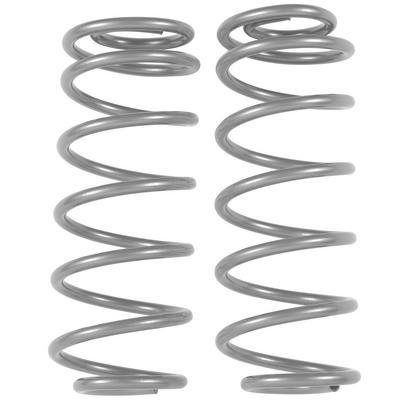

The kit is a short arm system with 1.75-inch diameter 4130 chromoly Super-Ride front lower arms, extended sway bar end links and extended bump stops. Coil spring rates are tuned for bump compliance and load handling.

The lift height range is 0 to 3.5 inches. The system clears 35-inch tires on a loaded non-Rubicon model and 37-inch tires on Rubicon models, and the FOX Performance shocks are included at the front and rear.

Key features

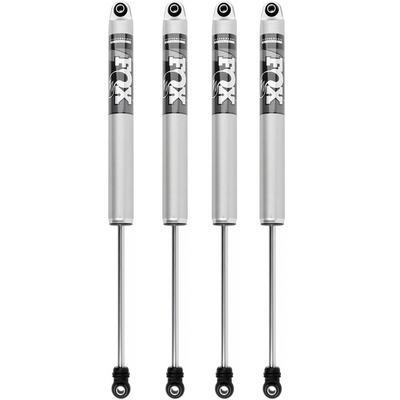

  • FOX Performance Series shocks at the front and rear, included

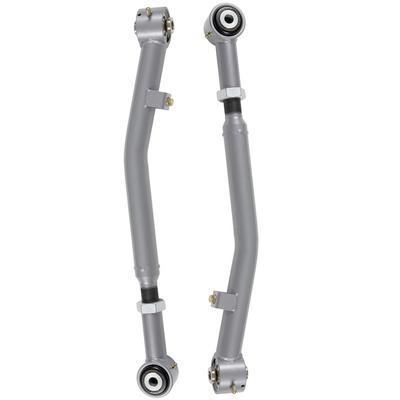

  • 1.75-inch diameter 4130 chromoly Super-Ride front lower arms

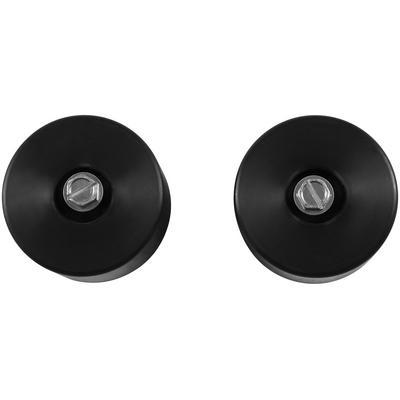

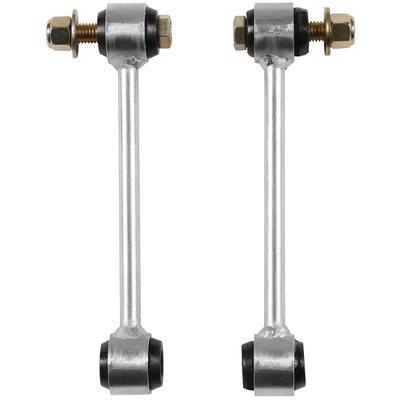

  • Extended sway bar end links and extended bump stops

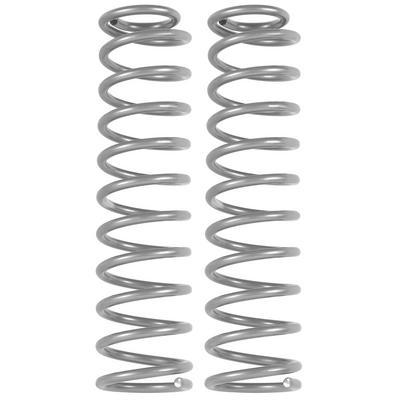

  • Coil spring rates tuned for bump compliance and load handling
  • Clearance for 35-inch tires on loaded non-Rubicon models and 37-inch tires on Rubicon models

Short arm geometry and tires

A short arm lift changes the front suspension geometry by moving the lower control arm mounting, which affects caster, camber and steering feel. Super-Ride arms are built to keep the axle controlled at higher ride heights. Larger tires add rotating mass and change gearing, so the feel of the truck shifts once the kit is fitted.

FOX shocks are tuned to suit a higher ride height, but they still depend on correct installation and length. Check the bump stops and sway bar end links for wear at the same time, and align the front end once the kit is set. Driveline angles should be measured after the install, since the lift can increase them.

  • Check the lower arm bushings at service
  • Re-check the steering stops after alignment
  • Inspect the shock mounts for cracking

Specifications

Brand Rubicon Express
Part number R/EJL7100FP (JL7100FP)
Kit type 2.5-inch Super-Ride short arm lift kit
Lift height range 0 to 3.5 inches
Tire size 35 inches
Front shocks FOX Performance
Rear shocks FOX Performance
Rear lift method Coil springs
Rear lift component Coil spring
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

It fits the 2018–2026 Jeep Wrangler Unlimited (JL) Moab, Rubicon, Sahara, Sport and Sport S trims, all 4-door models.

The 2-door Wrangler and earlier Wrangler generations are not on this list, nor are the Gladiator models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The FOX shocks and the short arm system change the suspension geometry, so the alignment and the driveline angles should be checked after the install.

What’s included

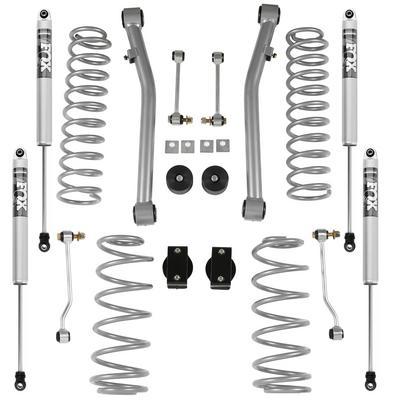

The kit includes the FOX Performance Series shocks at the front and rear, the Super-Ride front lower arms, the sway bar end links and the extended bump stops.

The FOX Performance Series shocks are covered by the FOX warranty and do not qualify for the Rubicon Express Advantage Warranty.

SKU: R/EJL7100FP Categories: ,

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2018–2026Unlimited Moab (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rubicon Express JL7100FP fit a 2021 Jeep Wrangler Unlimited Sahara?

Yes. The 2018–2026 Jeep Wrangler Unlimited Sahara fits in the 4-door trim, which covers 2021 trucks. The 2-door Wrangler is not a fit for this kit, so confirm the body style before ordering.

Are the FOX shocks covered by the Rubicon Express warranty?

No. The FOX Performance Series shocks are covered by the FOX warranty and do not qualify for the Rubicon Express Advantage Warranty. Keep the FOX warranty paperwork with the shocks for any future claim.

What tire size does the kit clear?

The kit clears 35-inch tires on a loaded non-Rubicon model and 37-inch tires on Rubicon models, so the tire choice depends on the trim. Check the clearance against the tire you plan to fit before buying.

How often should the FOX shocks be serviced?

FOX shocks are generally inspected at regular service intervals, along with the rest of the suspension. Look for oil leaks, worn bushings and a bouncy ride. Worn shocks should be replaced or serviced as needed to keep the ride controlled on rough trails.

Do short arm lifts need the alignment checked?

Yes. Changing the lower arms moves the front axle geometry, so the alignment should be set once the kit is installed. A correct alignment protects the tires and keeps the steering centered, especially with larger tires fitted.
