Overview

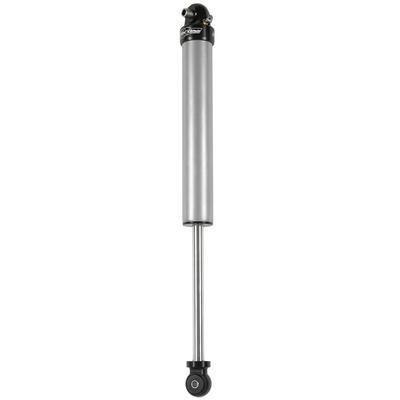

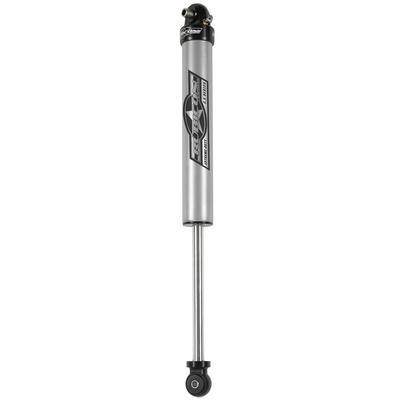

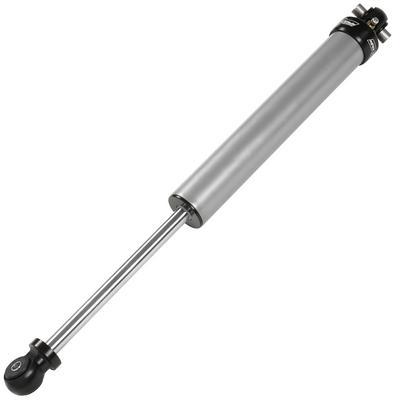

The Rubicon Express RXJ902 is a rear 2.5-inch Extreme-Duty monotube shock for the 2018–2026 Jeep Wrangler JL, in two-door and four-door models. It carries part number R/ERXJ902 and is designed for a 2.5-inch lift. The fitment covers the same JL trims as the front RXJ901 shock. Check your trim before ordering, since two-door and four-door trims are covered separately. The body and shaft materials match the front RXJ901 shock.
The shock is tuned to each application. Its 2.5-inch body with a full bore piston is matched to the spring rates, which supports ride quality and suspension travel. It is built for rough terrain without giving up high-speed stability or comfort.

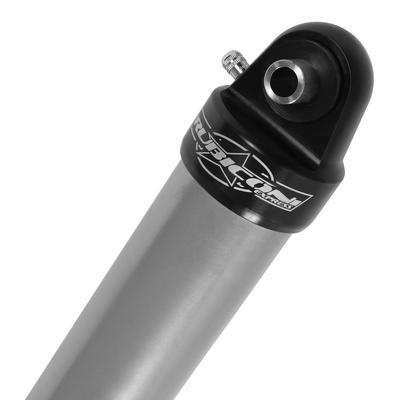

The shock has a hydraulic rebound cut-off to eliminate harsh top-out. Its components are 6061-T6 billet aluminum with black anodizing, and the shaft is a 7/8-inch OD hardened chrome rod. A non-reservoir floating piston separates nitrogen and oil to eliminate cavitation, and a wiper seal prevents contamination. The shaft has triple seal redundancy, and the powder-coat finish is durable. Rubicon Express backs the shock with its advantage lifetime warranty.
Key features
- Rear position for the Wrangler JL
- Designed for two-door and four-door models
- 2.5-inch body with a full bore piston
- Hydraulic rebound cut-off
- 6061-T6 billet aluminum, black anodized

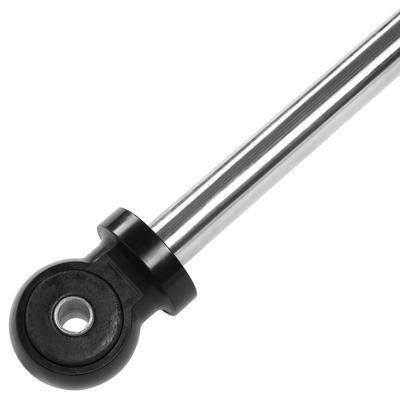

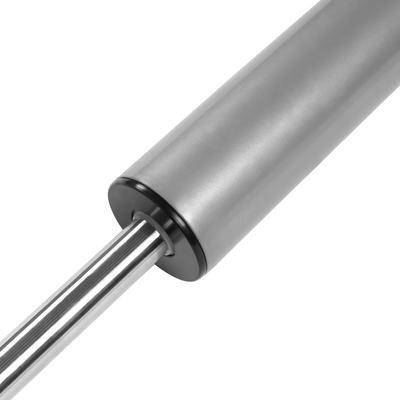

- 7/8-inch OD hardened chrome shaft
- Non-reservoir floating piston and wiper seal
- Triple shaft seal redundancy
Shock tuning and ride
A monotube shock keeps the oil and gas in one tube, which helps it dissipate heat and resist fade on long descents and rough trails. The rear shock controls how the axle settles and rebounds after a bump, so its damping shapes both the ride on pavement and the control on loose surfaces.
Rear shocks are usually replaced in pairs on the same axle, so the damping feels consistent from side to side. When the rear shocks are changed, check the upper and lower mounts, the bushings and the bump stops, since a worn mount can make a new shock feel harsh or noisy.
Shock damping is matched to spring rate and lift height. Changing the lift, the tire size or the vehicle load can shift how the shock behaves, so revisit the choice if the vehicle is significantly changed. Inspect the shaft and seals for oil residue after each trip, and check that the shock is not bottoming out on hard landings.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RXJ902, also R/ERXJ902 |
| Series | 2.5 Monotube |
| Body diameter | 2.5 inches |
| Position | Rear |
| Lift | With a 2.5-inch lift |
| Shock type | Monotube, hydraulic |
| Body | 6061-T6 billet aluminum, black anodized |
| Shaft | 7/8-inch OD hardened chrome |
| Warranty | Advantage lifetime warranty. |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2018–2026 Jeep Wrangler JL models, including two-door Rubicon, Sport, Sport S and Willys trims, and four-door Unlimited Rubicon, Unlimited Sahara, Unlimited Sport and Unlimited Willys trims.
Wrangler JK and other Jeep models fall outside this fit. Confirm the year, model and trim against your vehicle before ordering.
What’s included
One rear monotube shock absorber.
