Rubicon Express 2.5″ Extreme-Duty Monotube Rear Shocks – RXJ907P

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear 2.5-inch Extreme-Duty monotube shock for 2020–2026 Jeep Gladiator
  • Eyelet top and bottom mounts; hydraulic
  • Hard-anodized aluminum body; 17-4 stainless shaft

Description

Overview

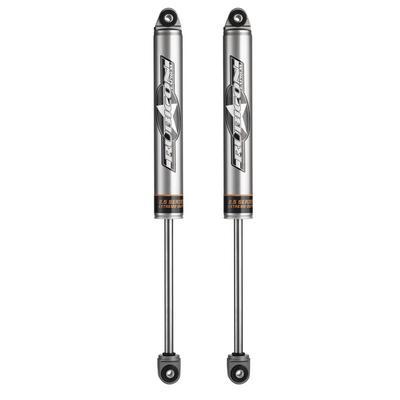

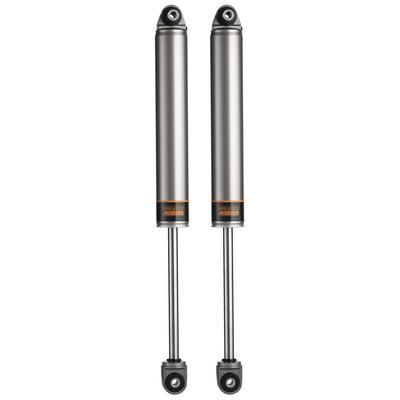

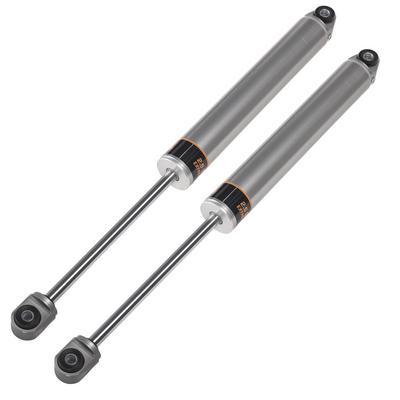

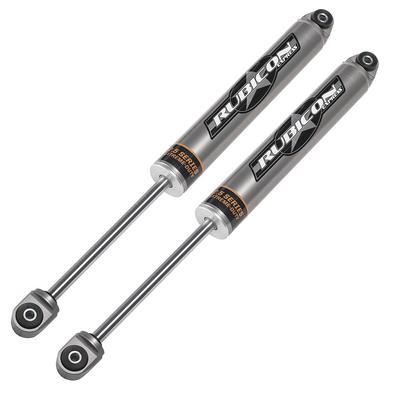

The Rubicon Express RXJ907P is a rear 2.5-inch Extreme-Duty monotube shock for the 2020–2026 Jeep Gladiator, sold under the R/ERXJ907P part number. It covers the Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S trims.

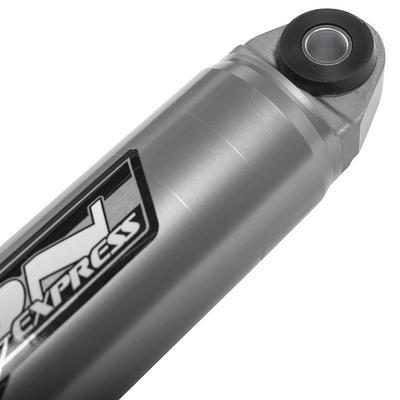

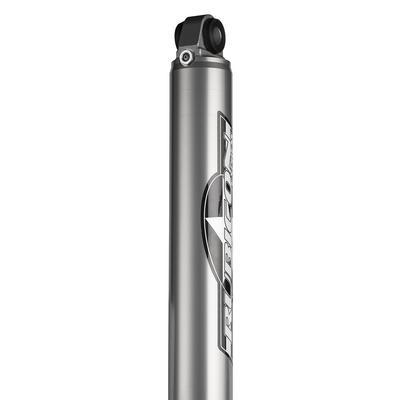

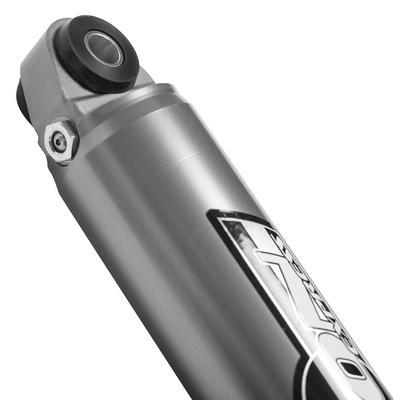

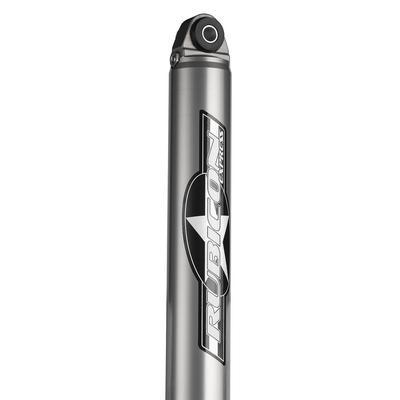

The shock uses a 2.5-inch monotube body that is hard-anodized from thick-wall impact forging. The aluminum body releases heat quickly and resists the rust that steel bodies can develop. Hard anodizing reduces friction and bore wear, helping the bore stay in good condition over time.

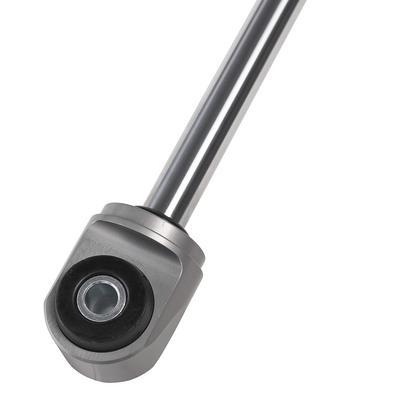

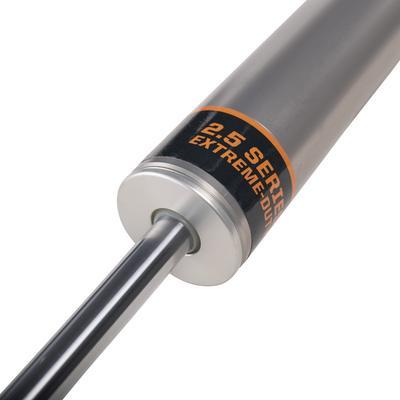

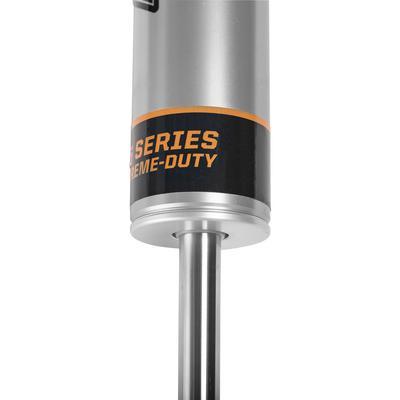

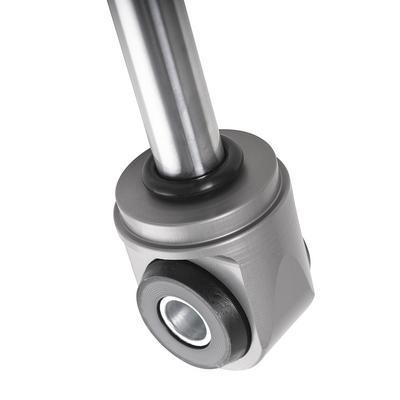

The shaft is a chrome-plated 17-4 stainless precipitation-hardened rod. Thick-wall steel sleeves sit inside cross-linked urethane bushings that add durability. Each part number is tuned for its vehicle, so this rear shock is matched to the Gladiator application covered by its fitment.

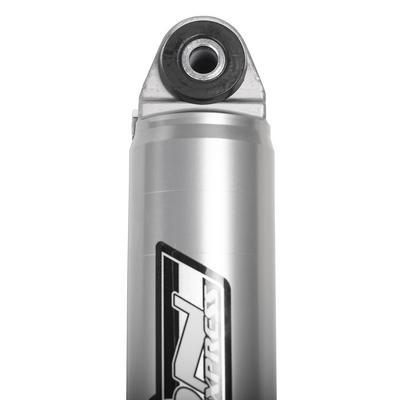

The shock is hydraulic, with eyelet top and bottom mounts. Rubicon Express treats the tuning as the reason for its ride quality. The part number covers the rear position only, so front shocks are a separate part with their own number.

Key features

  • 2.5-inch monotube body
  • Hard-anodized, impact-forged aluminum body
  • Chrome-plated 17-4 stainless shaft
  • Steel sleeves inside cross-linked urethane bushings
  • Eyelet top and bottom mounts
  • Hydraulic damping
  • Vehicle-specific tuning

Keeping the rear end sorted

Hydraulic shocks turn the up-and-down motion of the axle into heat as oil passes through the valving. A shock that runs hot for long periods can lose some damping, which is one reason aluminum bodies help move heat away. Rear shocks also carry the vehicle load at rest, so they are a common place to notice sag when springs or bump stops wear.

Routine checks are simple. Look for an oil film on the shaft or body, listen for knocking at the eyelets, and confirm the mounting hardware is tight. Inspect shocks after rough trail use or any hard impact, since a bent shaft or damaged seal can lead to leaks. When one rear shock is worn, replacing the pair keeps the rear end balanced.

Specifications

Brand Rubicon Express
Part number RXJ907P (R/ERXJ907P)
Series Extreme-Duty Monotube
Body diameter 2.5 inches
Position Rear
Top mount Eyelet
Bottom mount Eyelet
Shock type Monotube, hydraulic
Body Hard-anodized aluminum
Shaft 17-4 stainless, chrome plated
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2020–2026 Jeep Gladiator, including the Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S trims.

Wrangler models and Gladiator years outside 2020–2026 are not covered here. Compare your year, model and trim against this application first.

What’s included

One rear shock absorber.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–2026Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RXJ907P fit a 2022 Jeep Gladiator Mojave?

Yes. The 2020–2026 Gladiator range includes 2022, and the Mojave trim is covered for that model year. Confirm fit for your vehicle's year, model and trim before ordering.

Is this shock for the front or the rear?

It is the rear shock, with eyelet mounts at the top and bottom of the body. It is a hydraulic monotube design, and only the rear position is covered, so front shocks are a separate part.

What shaft material is used?

The shaft is chrome-plated 17-4 stainless steel, and the body is hard-anodized aluminum. The shock is hydraulic, with a monotube design. Its thick-wall steel sleeves sit inside urethane bushings for durability.

How do I know a rear shock is worn?

Common signs are oil on the body, a bouncy ride after bumps, uneven rear tire wear and clunking at the eyelets. Inspect all four corners together, since a worn shock on one side can change how the vehicle handles.
