Overview

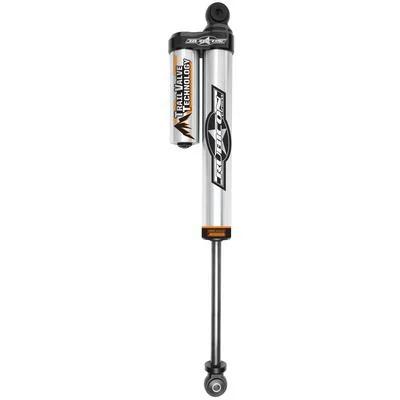

The Rubicon Express RXP901 is a front 2.5-inch piggyback reservoir shock for 2.5 to 3.5-inch lifts. It is sold under the R/ERXP901 part number and uses a monotube body with an external reservoir. It covers the 2020–2026 Jeep Gladiator, the 2018 Jeep Wrangler JK and the 2018–2026 Jeep Wrangler JL.
The piggyback design is built to outperform a traditional twin tube hydraulic shock. The vehicle-specific ride tuning was developed through dyno and real-world testing, and multi-stage valving balances ride quality with handling.
The powder-coated monotube body is nitrogen gas charged, which helps prevent cavitation during compression and rebound. The external reservoir adds fluid capacity and helps the shock shed heat, which reduces shock fade. The shock has eyelet mounts at the top and bottom.
Key features
- 2.5-inch body diameter
- Piggyback external reservoir
- Nitrogen-charged, powder-coated monotube body
- Multi-stage valving tuned to the vehicle
- Eyelet top and bottom mounts
- Designed for 2.5 to 3.5-inch lifts
Piggyback reservoir basics
A piggyback reservoir gives the shock room to hold extra fluid and gas, so the damping has more capacity to stay consistent when the shock heats up. That matters on a front axle, where steering loads and braking add to the work the shock does. A reservoir hose and its mount need to clear the tire, steering components and frame at full lock, so route the reservoir before tightening anything.
Before installation, compare the reservoir position with the other front components, and make sure the hose is free of kinks. Replace front shocks as a pair so both sides respond the same way. Inspect the reservoir body for dents and oil seepage after any trail trip, since a damaged reservoir can reduce the shock’s ability to manage heat.
- Check reservoir clearance against the tire at full steering lock
- Replace front shocks as a pair
- Inspect the reservoir hose for cracks or chafing
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RXP901 (R/ERXP901) |
| Series | 2.5 piggyback reservoir |
| Body diameter | 2.5 inches |
| Position | Front |
| Lift range | 2.5 to 3.5 inches |
| Shock type | Piggyback monotube, hydraulic, gas charged |
| Top and bottom mount | Eyelet |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2020–2026 Jeep Gladiator, including the Launch Edition, Overland, Rubicon, Sport and Sport S trims. It also fits the 2018 Jeep Wrangler JK, including the two-door Rubicon, Sahara and Sport trims and the four-door Unlimited Rubicon, Unlimited Sahara and Unlimited Sport trims, and the 2018–2026 Jeep Wrangler JL.
Wrangler years outside 2018–2026 and other Jeep models fall outside this application. Check your year, model and trim against the application before ordering.
What’s included
One front piggyback reservoir shock absorber.
