Rubicon Express 2.0 Adjustable Reservoir Monotube Front Shock – RXR713

Rubicon Express

Shop Jeep Wrangler JK Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express 2.0 adjustable reservoir monotube front shock, part number RXR713, for 2007 and later Wrangler JK
  • Remote reservoir that Rubicon Express says doubles fluid capacity; eight stages of compression adjustment
  • Extended length 24.5 inches, collapsed length 15.3 inches; for 2.5 to 3.5 inch lifts
  • JK-specific custom valving; reservoir mounts and -6 hose with 360-degree swivel banjos included

Description

Overview

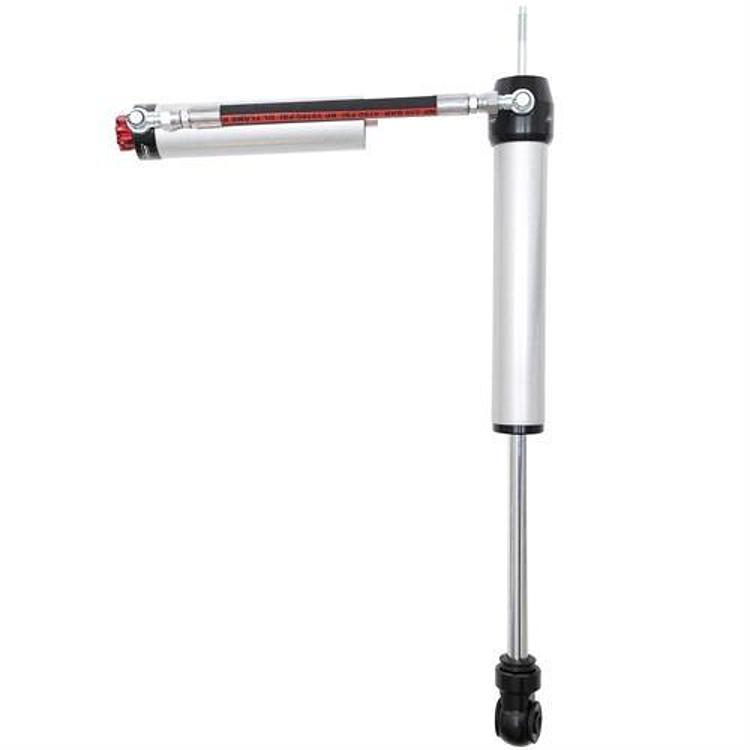

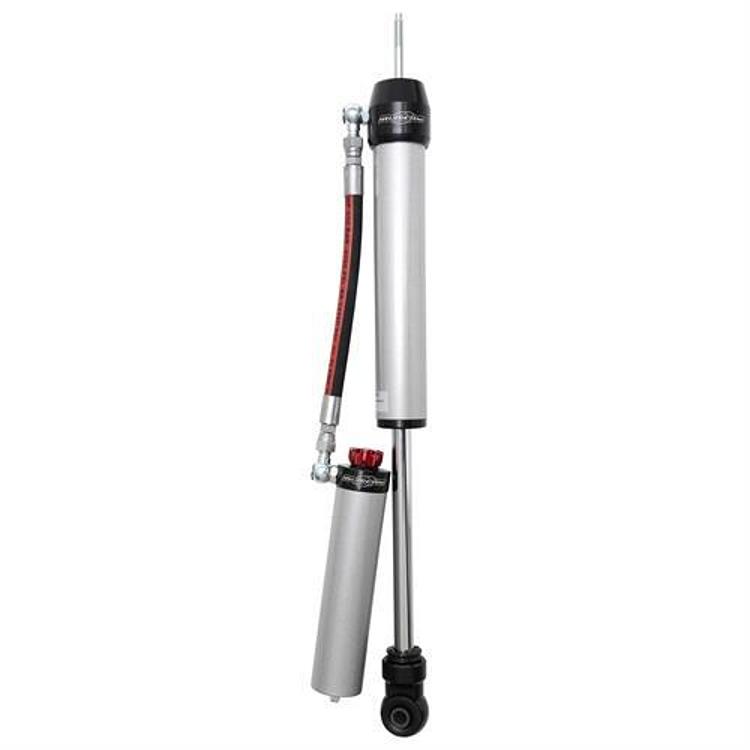

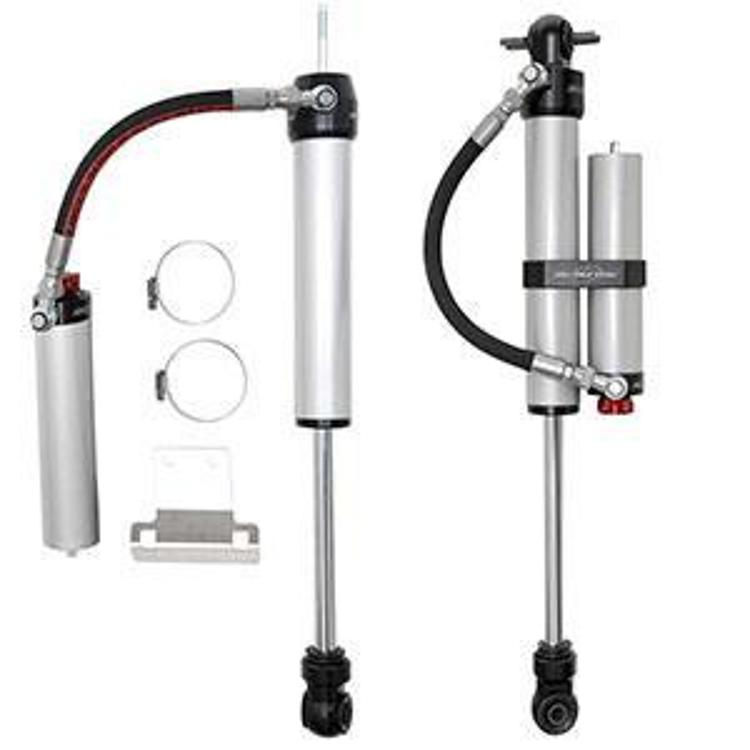

The Rubicon Express 2.0 Adjustable Reservoir Monotube Front Shock, part number RXR713, is a remote reservoir shock for the front of a Jeep Wrangler JK. It fits 2007 and later Wrangler JK models, 2 and 4 door, with a 2.5 to 3.5 inch lift, which covers the 2007-2018 JK model years.

The external reservoir adds fluid capacity to help shed heat. The gas-charged monotube body is tuned to Rubicon Express spring rates and uses JK-specific custom valving with eight stages of compression adjustability.

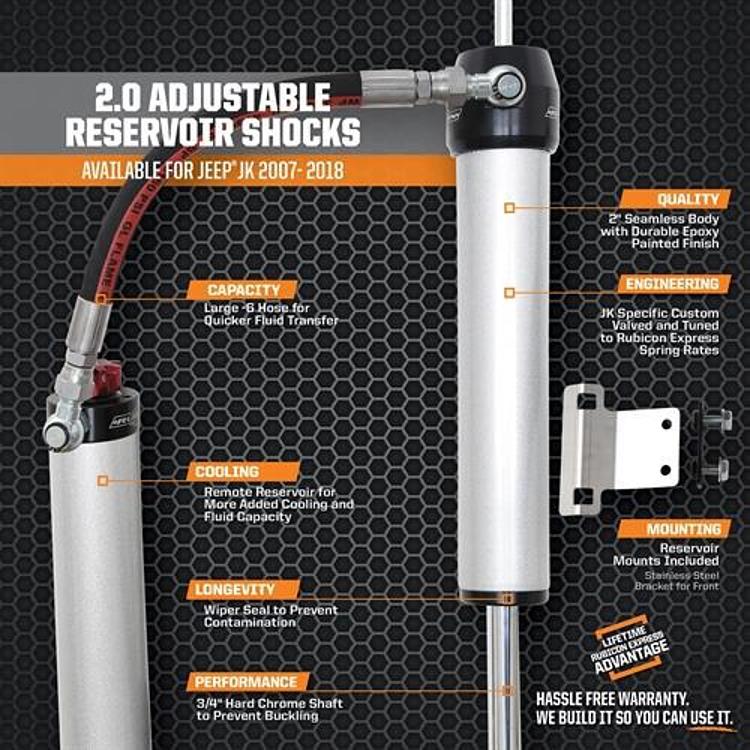

Key features

  • Remote reservoir for added cooling and fluid capacity.

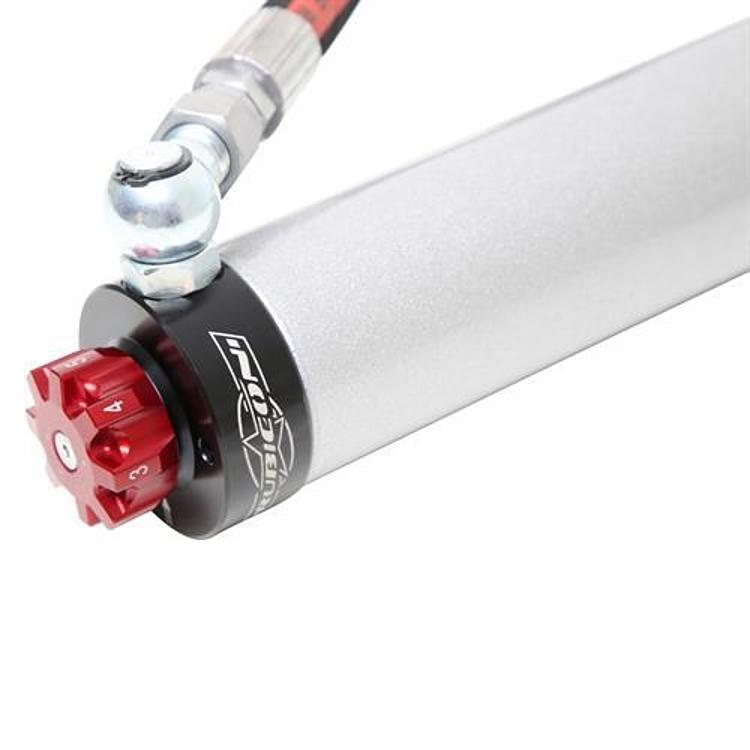

  • Eight stages of compression adjustability
  • JK-specific custom valving
  • Gas-charged 2-inch seamless alloy body with epoxy painted finish

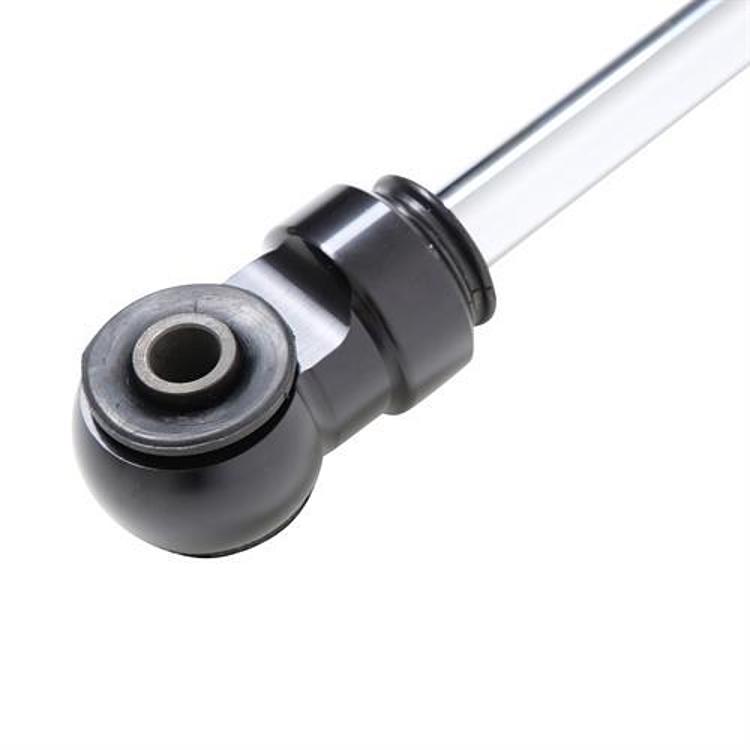

  • Black anodized, CNC machined 6061-T6 ends
  • 3/4-inch hard chrome shaft

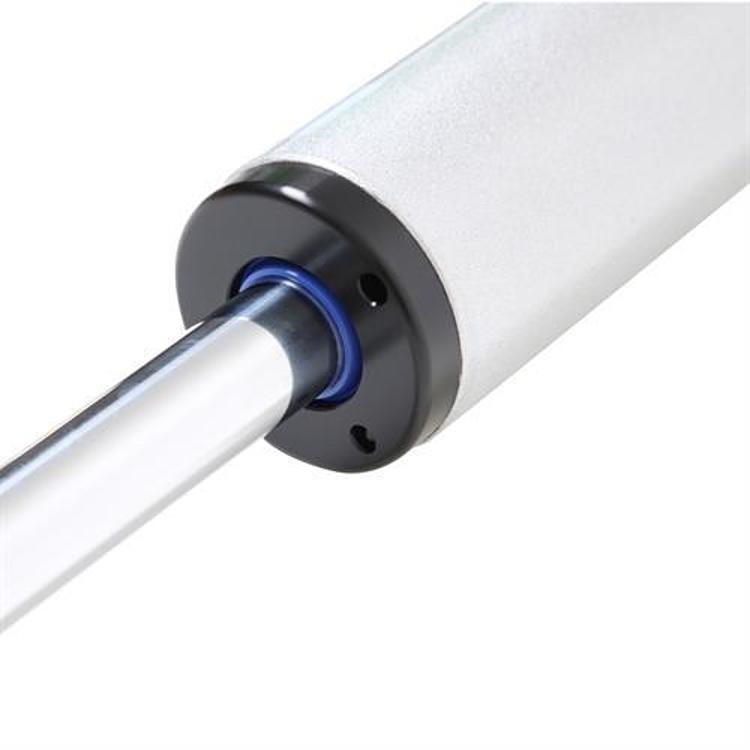

  • Wiper seal to keep contamination out

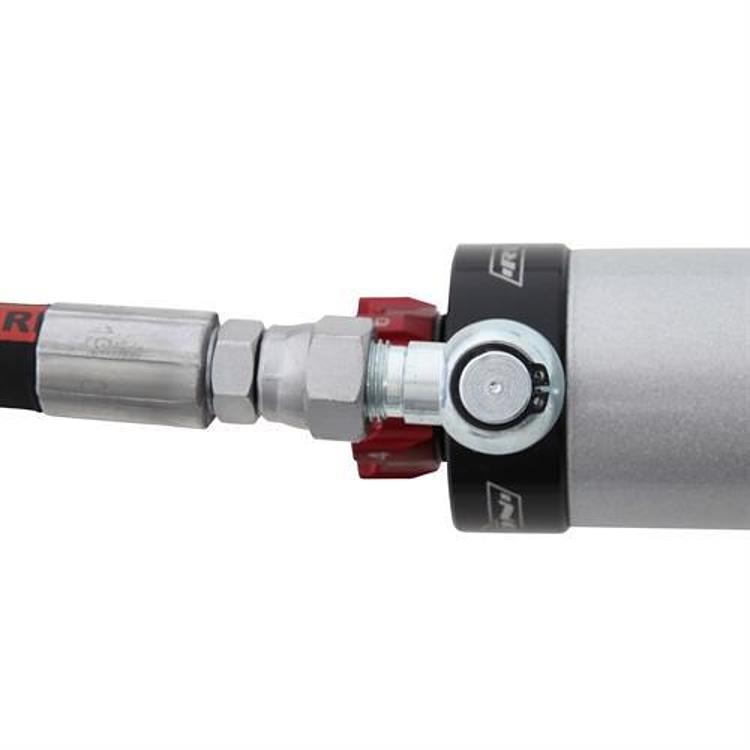

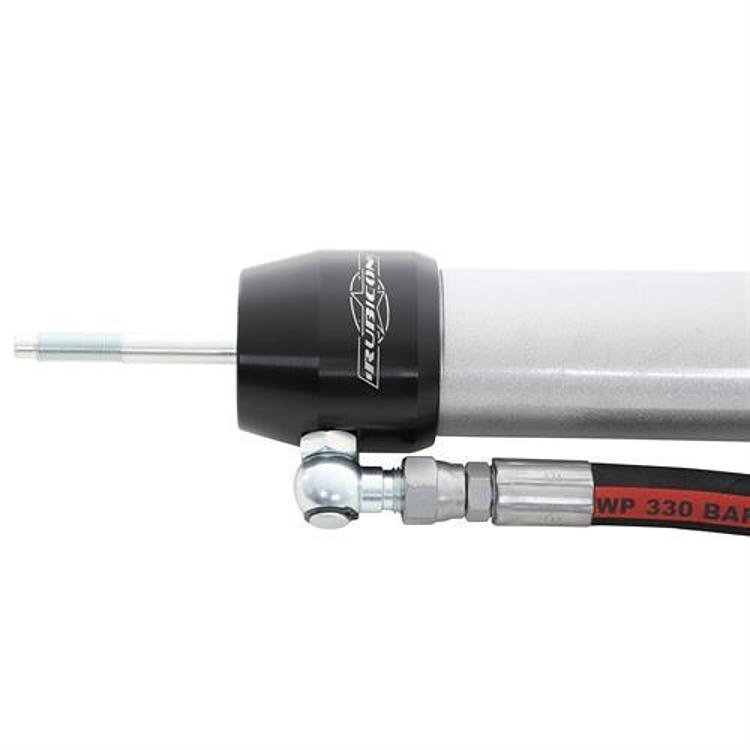

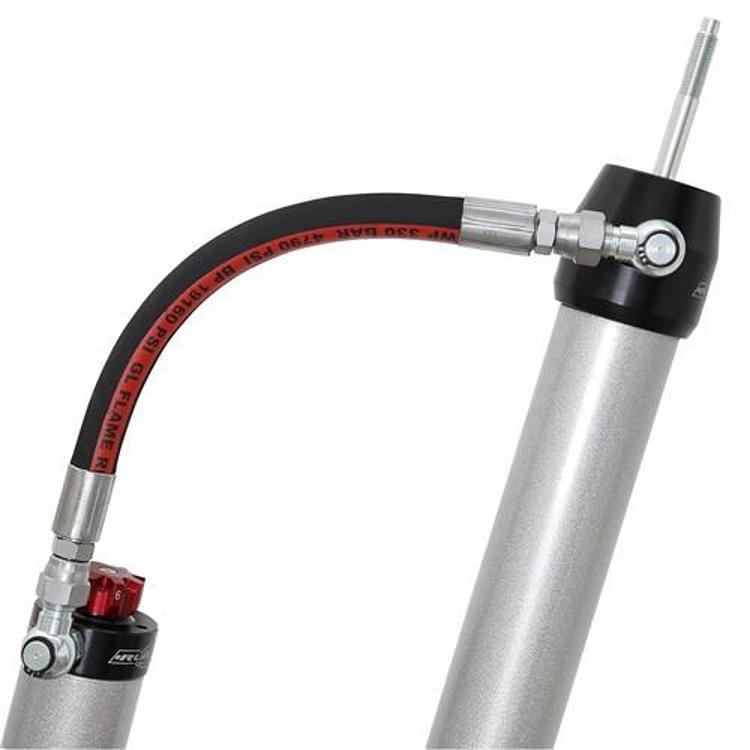

  • Large -6 hose with 360-degree swivel banjos
  • Reservoir mounts included

Before you buy

A remote reservoir shock moves the gas and fluid storage away from the damper body, which gives the oil more room to cool between hard runs. On a Wrangler JK that matters on long grades, sand washes and repeated articulation, when a standard shock can run hot and lose consistent damping. Adjustable compression lets you tune how firmly the front end reacts to rough ground and highway speeds.

Before buying, match the shock to the lift you actually run. Front shocks work with the knuckle and upper mount geometry, so a change in lift or tire size can change the stroke you need. The reservoir also needs clearance and a route for its hose, so check the space near the inner fender before ordering.

  • Measure your current shock installed length before ordering
  • Plan hose routing clear of heat sources and moving parts
  • Inspect bump stops if ride height has changed
  • Check reservoir clearance against the inner fender

Specifications

Brand Rubicon Express
Part number RXR713
UPC 614901238112
Position Front
Shock series 2.0 Adjustable Reservoir
Design Gas-charged monotube with remote reservoir
Extended length 24.5 inches
Collapsed length 15.3 inches

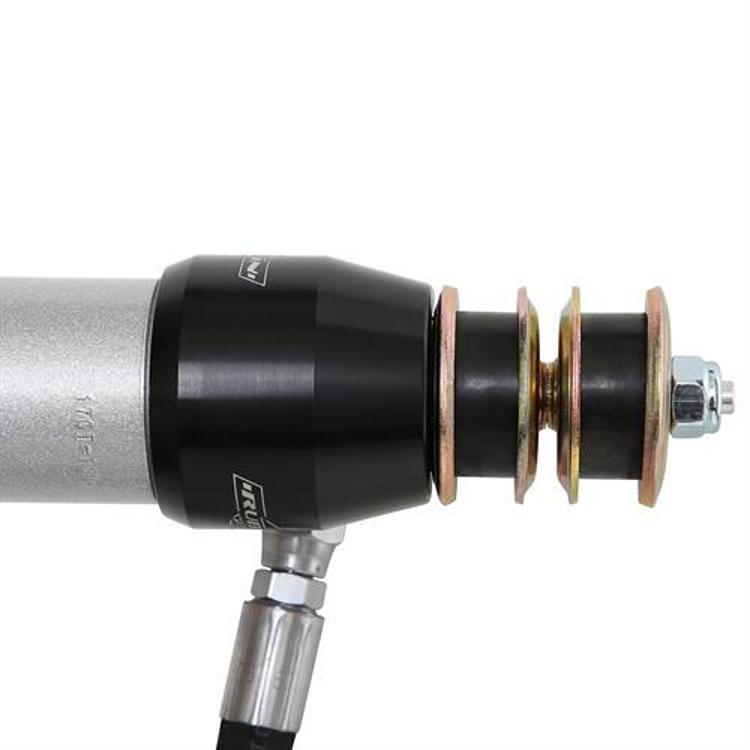

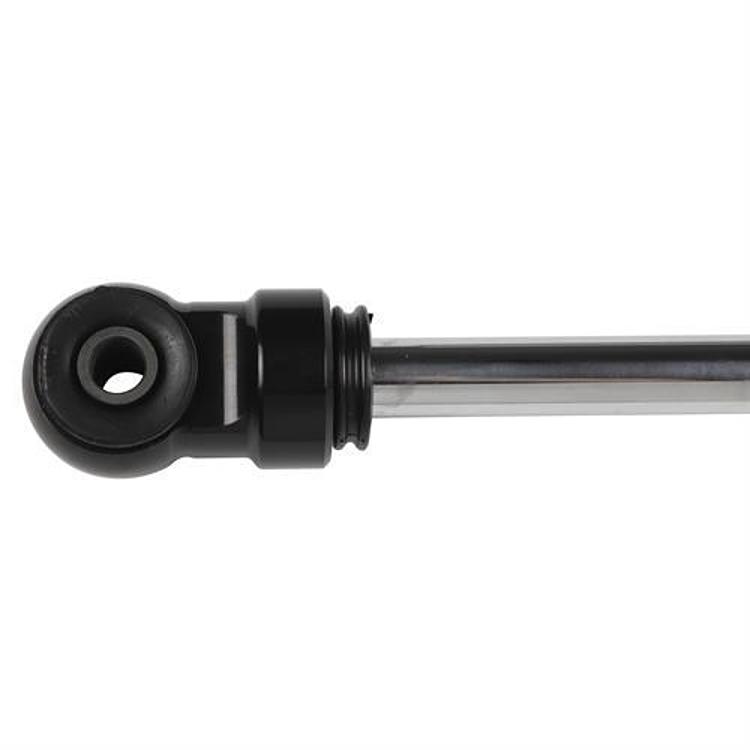

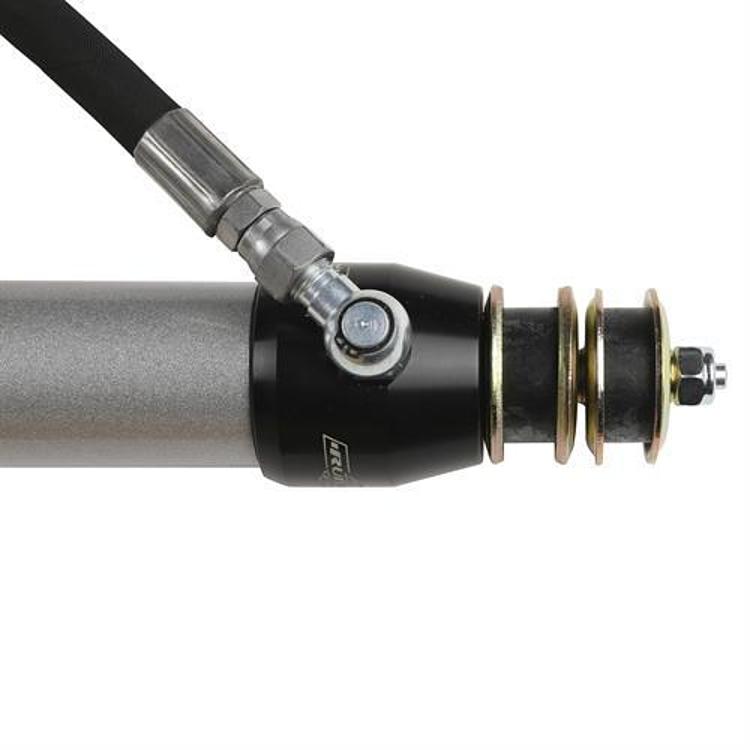

Mount type Stem/loop
Lift range 2.5 to 3.5 inches
Body 2-inch seamless alloy
Shaft 3/4-inch hard chrome
Compression adjustment 8 stages

Vehicle fitment

It is designed for the front of the Jeep Wrangler JK (2007-2018) in 2 and 4 door models with a 2.5 to 3.5 inch lift. The valving is specific to the JK generation, so it is designed for the JK only and not the TJ, YJ or later JL.

Confirm your vehicle’s year, model and trim before ordering. The listed lift range is 2.5 to 3.5 inches, so check the lift height on your vehicle.

Installation notes

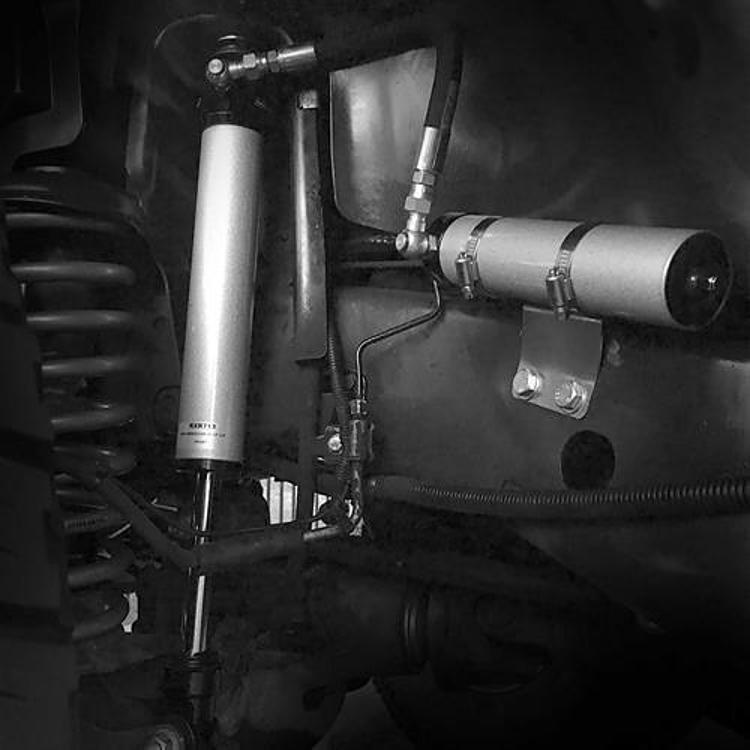

The shock uses a remote reservoir, and the reservoir mounts are included. Confirm the stem and loop mounts match your existing hardware before installing.

What’s included

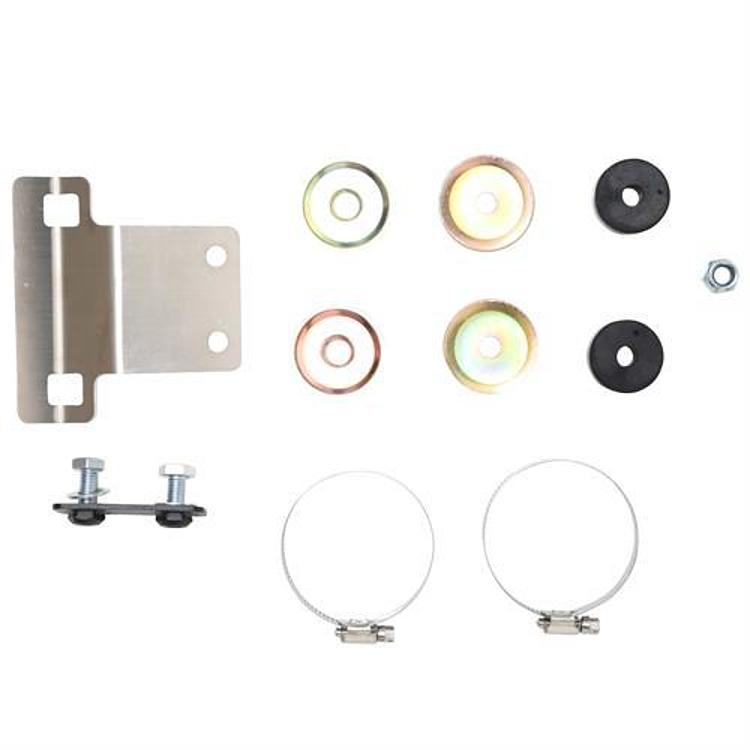

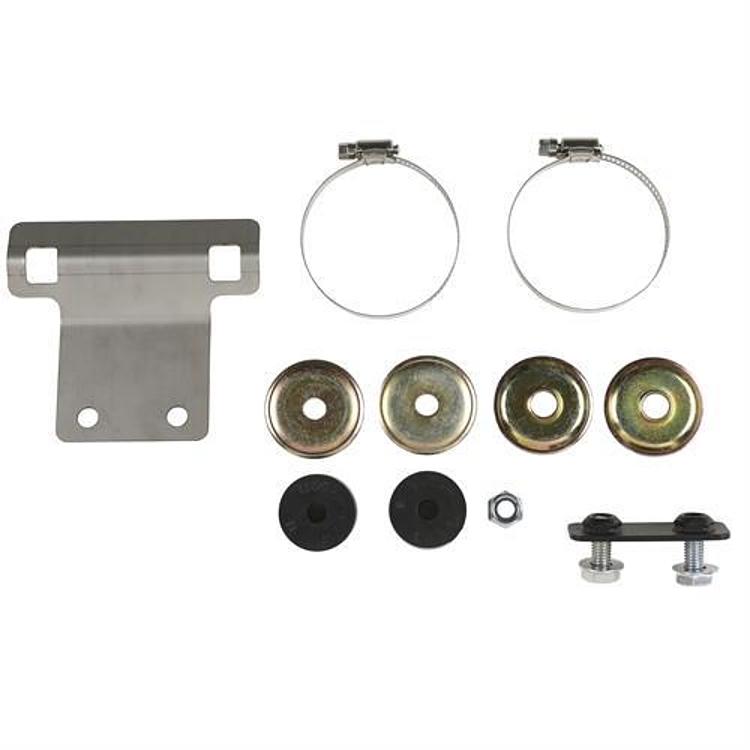

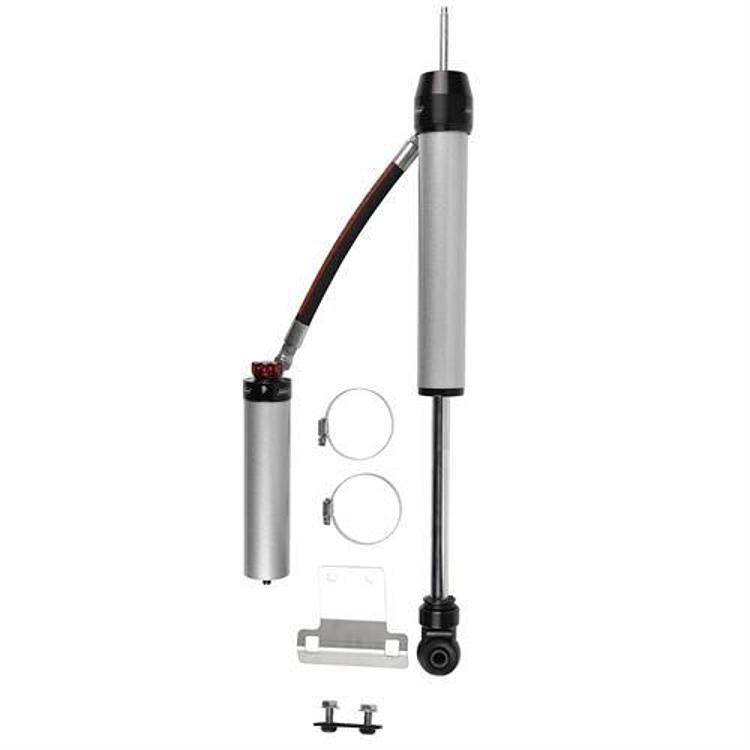

The reservoir mounts and the large -6 hose with 360-degree swivel banjos are included with the shock.

SKU: R/ERXR713 Category:

Specification

Shipping weight 9.00 lbs
Package dimensions 26.00 × 5.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RXR713 fit a 2007 Jeep Wrangler JK?

Yes. It is designed for 2007 and later Wrangler JK models, in both 2 and 4 door versions, with a 2.5 to 3.5 inch lift. Confirm your model year and lift height before installing the shock on your vehicle.

Does this shock have a remote reservoir?

Yes. The external reservoir adds fluid capacity to help shed heat. Reservoir mounts are included, so the reservoir can be placed away from the shock body.

How many compression stages does the RXR713 have?

It has eight stages of compression adjustability. The shock also uses JK-specific custom valving, tuned to Rubicon Express spring rates.

How do I know the front shocks need replacing?

Look for fluid leaks on the body or reservoir, a bouncy ride after bumps, uneven tire wear and a shock that feels loose at the mounts. Check the seals and hardware after trail use, and replace worn front shocks in pairs so both sides respond the same way.

Can the reservoir hose be rerouted after installation?

Yes, but keep the hose clear of exhaust parts, sharp edges and moving suspension components. Secure it with the mounts, and check for rub points after the first few drives. Leave enough slack for the shock to reach full travel without pulling on the fitting.
