Overview

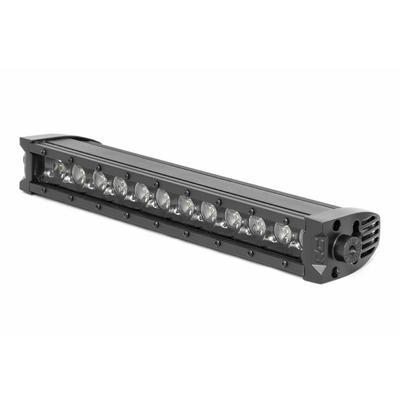

The Rough Country Black Series 12 Inch Cree LED Light Bar with Cool White DRL (part 70712BLDRL) is a single row bar rated at 4800 lumens and 60 watts. Rough Country describes its Black Series single row bars as offering enormous lighting power in a stylish, modern frame, and this 12 inch version adds a DRL section of LEDs.
The DRL section is designed to illuminate in a way similar to the daytime running light option on modern headlights, which Rough Country says adds visibility and an interesting look. The black panel design is meant to blend with black accents such as grilles, wheels, bull bars and steps. The housing is durable die-cast aluminum, and the wiring is a premium, waterproof, flat-wound, braided harness with a three-position switch and an in-line fuse.
Key features
- Single row Cree LED layout
- 4800 lumens at 60 watts
- Cool white DRL section
- Black panel design
- End mounts and adjustable base mounts
- Die-cast aluminum housing
- Braided harness with three-position switch and in-line fuse
Daytime use and wiring
A DRL section on a light bar runs as a separate strip, which is useful for daytime visibility on the road. Whether the strip runs with the main light off depends on how the switch and wiring are set up, so check that before relying on that mode. Local rules for daytime lighting vary, so confirm them before using the strip on public roads.
Braided harnesses resist abrasion, but they still need support where they pass through the body or near the engine bay. Keep the connections dry and check the fuse after installation. Bars mounted on bull bars or grilles can pick up road debris, so clean the lens and inspect the end mounts periodically. Adjustable base mounts can drift during off-road driving, so set the aim again after trail use.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 70712BLDRL |
| Light series | Black Series |
| Length | 12 inch |
| LED row configuration | Single row |
| Output | 4800 lumens; 60 watts |
| DRL | Cool white section of LEDs |
| Mounts | End mounts and adjustable base mounts |
| Wiring | Braided harness, three-position switch, in-line fuse |
| Warranty | 3 year |
Vehicle fitment
This 12 inch bar is universal fit and is not built for one vehicle. The end and base mounts offer several placement options, and the 12 inch length is the main sizing point. Measure the mounting space before drilling.
Installation notes
Set the aim with the adjustable base mounts after the bar is in place. Keep the braided harness routed away from moving parts, and check local rules for DRL and auxiliary lighting on public roads before use.

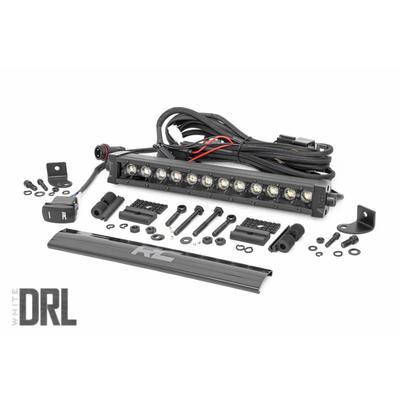

What’s included

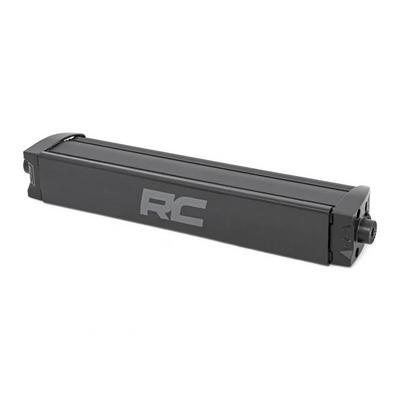

One 12 inch Black Series single row bar with cool white DRL, end mounts and adjustable base mounts, a braided harness with a three-position switch and in-line fuse, and a snap-on cover. The bar is covered by Rough Country’s 3-year warranty.
