Overview

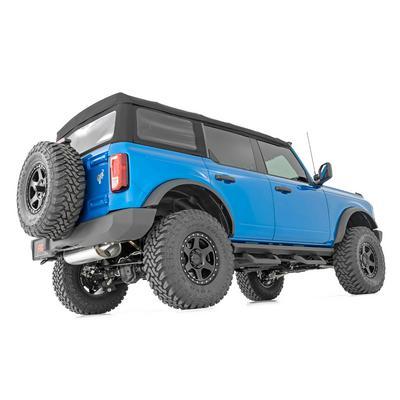

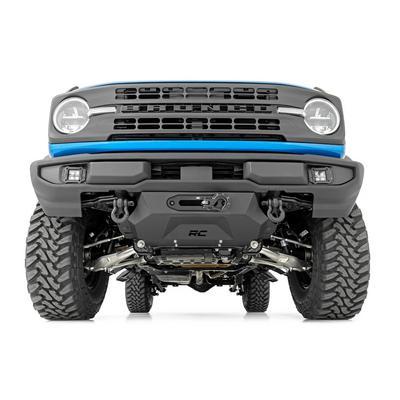

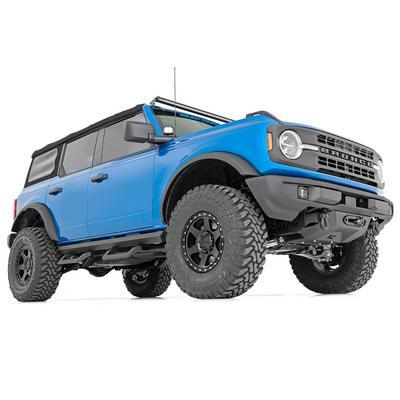

The Rough Country 3.5-inch Ford Bronco suspension lift kit, part number R/C51027, fits the 2021–2026 Ford Bronco in its Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak versions. It adds ground clearance and a level stance by reducing the nose-down factory look.
The kit combines tubular steel upper control arms with differential spacers that reduce CV and ball joint angles. Upper strut spacers provide lift while keeping strength and rigidity, and a rear track bar with brake line relocation keeps the rear geometry close to factory.
The combined setup gives enough clearance to run 35-inch tires with appropriate wheel backspacing.
Upper control arms set the geometry at the top of the front axle, and differential spacers change the angle of the axle relative to the driveline. Those changes are what the brand means by reducing CV and ball joint angles.
A rear track bar keeps the axle centered side to side after the lift, and a brake line relocation keeps the brake line from stretching as the suspension moves.
Key features
- Tubular steel upper control arms
- Differential spacers that reduce CV and ball joint angles
- Upper strut spacers
- Rear track bar and brake line relocation
- Clearance for 35-inch tires with appropriate wheel backspacing
- Listed lift height range of 0 to 3.5 inches
Choosing shocks for a lifted Bronco
Shocks are not included in this kit, so plan on selecting them separately. Shock length and mounting need to match the new suspension height and the upper control arm position, so measure before ordering. Good damping keeps the tires in contact over broken pavement and reduces body motion at highway speed.
Upper control arms and differential spacers change joint angles, and the axle sits differently at the new height. Inspect the CV boots and ball joints during each service, since changed angles can wear them sooner. A brake line relocation should be checked for stretch once the suspension has cycled through its range.
Wheel and tire choice matters at this height. A tire with the right backspacing gives the intended clearance, while a tire that is too wide for the offset can rub at full lock or on compression. Test full steering and compression once installed, and recheck the strut spacers after the first trail runs.
- Measure shock length before choosing
- Inspect CV boots at each service
- Recheck strut spacer bolts after the first trail runs
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C51027 |
| Lift kit | 3.5 inches, stage 1 |
| Upper control arms | Tubular steel |
| Rear lift method | Block or spacer |
| Rear lift component | Spacer |
| Tire size | 35 inches |
| Lift height range | 0 to 3.5 inches |
| Shocks included | No |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2021–2026 Ford Bronco.
Other Ford models and Bronco model years before 2021 are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The install requires minor cutting and a strut compressor, and the brand estimates 3 to 5 hours for the work, including the brake line. Plan on the strut compressor and a set of basic tools before starting.
What’s included

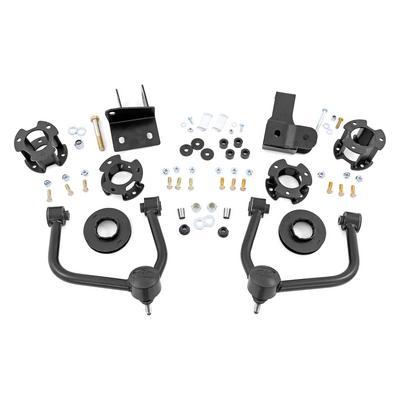

Tubular steel upper control arms, differential spacers, upper strut spacers, a rear track bar and the brake line relocation parts.
Not included: shock absorbers.
