Overview

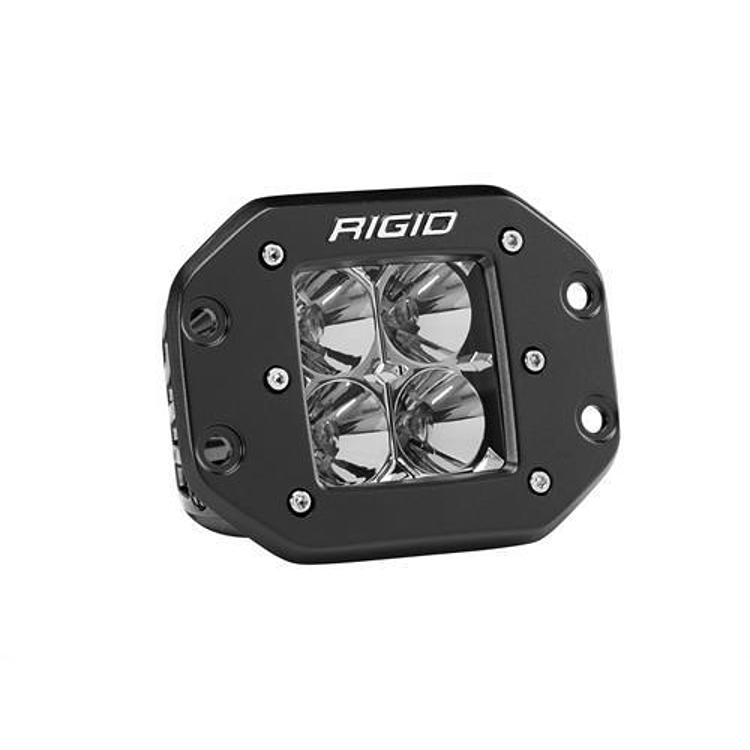

The Rigid Industries D-Series Dually 20 Deg. Flood LED Light is a single 3-inch square light with a 20-degree flood beam for flush mounting. Its hybrid optic and four white LEDs spread light across the area close to the vehicle.
The D-Series is built as a light cube with more cooling surface than an equivalent light. Output is either 1568 or 3096 lumens, depending on the version. The light is sold as a single unit with a clear lens and a black finish.
Key features
- 20-degree flood beam
- Four white LEDs
- Hybrid optic
- Flush mount
- Clear lens with a black finish
- Sold as a single light
Flood light placement
A single flood light covers the ground close to the vehicle, which makes it useful for camp areas, rear work and tight trail sections. Placement on the body should keep the lens clear of mud splash and branches, and the light should sit where the beam is not blocked by a bumper or a roof rack when the vehicle is loaded.
Because there is only one light, its position sets the whole pattern. Mount it near the centerline if you want even coverage, or offset it if the work is on one side of the vehicle. Test the beam at night before fixing the trim, so the final position is one you can live with.
- Keep the lens clear of splash and branches
- Test the beam at night before final placement
- Center the light for even coverage
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774026966 |
| Series | D-Series Dually |
| Light type | LED flood light, sold as a single light |
| Light shape | Square, 3 inches |
| Mounting | Flush |
| Lens color | Clear |
| Beam pattern | 20-degree flood |
| LED count | 4 white LEDs |
| Output | 1568 or 3096 lumens |
| Finish | Black |
Vehicle fitment
Built as a universal light, it is not made for one specific vehicle. The flush mount needs a matching panel opening, and you decide where the single light goes on the vehicle. Confirm fit for your vehicle’s year, model and trim before cutting.
Installation notes
Cut the flush opening to the 3-inch housing and wire the light through a fused circuit. Keep the cable clear of moving parts, and check local rules on driving lights before using the light on a road vehicle.
What’s included
The package is one flush-mount light. Wiring and trim are not part of the package, so plan both before starting.
