Overview

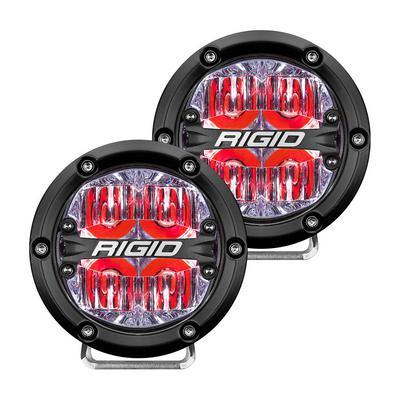

The Rigid Industries 360-Series 4 Inch Driving LED Light with a red backlight (part 36116) is a round driving light sold as a set of two. The 360-Series is an LED family with optimized beam patterns and an aluminum housing. This driving version is rated at 3060 raw lumens and 28 watts per light, with a 44 degree horizontal beam angle.
The red backlight is one of four colors offered across the 360-Series, along with white, blue and amber. Rigid lists 326.85 lux at 10 meters, and beam distances of 361.6 at 0.25 lux and 180.8 at 1 lux. Each light has a blacked-out circuit board and a limited lifetime warranty, and the harness is sold separately. Across the family, Rigid offers 4 inch and 6 inch sizes, four backlight colors and beam patterns from 17 degrees to 60 degrees, so the red backlight version here is one of several options. The lights are sold as a set of two, so a matched pair comes in one order.
Key features
- Driving beam pattern
- Red backlight color
- 3060 raw lumens per light
- 28 watts per light
- 44 degree horizontal beam angle
- Aluminum housing with a blacked-out circuit board
- Limited lifetime warranty
Mounting a matched pair
Two driving lights work best when they are mounted at the same height, angle and spacing, so the combined beam looks even and the pattern does not favor one side. Measure the bar or bracket before drilling, and mark the holes with the lights held in place. Use a level to set the housings square, then tighten the hardware in stages so the lights do not shift as the bolts seat.
Vibration is the most common reason a pair drifts out of alignment. After the first few drives, recheck the mounting bolts, the bracket and the aim. Wire both lights to the same switch and fuse so they turn on together, and inspect the wire grommets for chafing where the harness passes through the body.
- Measure and mark before drilling
- Level both housings before tightening
- Wire both lights to one switch
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 36116 |
| Series | 360-Series |
| Light type | LED, round, surface mount |
| Size | 4 inch |
| Beam pattern | Driving |
| Output | 3060 raw lumens |
| Power | 28 watts |
| Horizontal beam angle | 44 degrees |
| Lux at 10 meters | 326.85 |
| Beam distance | 361.6 at 0.25 lux; 180.8 at 1 lux |
| Backlight | Red |
| Sold as | Set of 2 |
| Warranty | Limited lifetime |
Vehicle fitment
The 360-Series driving light is universal and is not built for one vehicle. The family fits multiple OEM applications, so the mounting location decides the fit. Check clearance for the 4 inch housing before drilling.
Installation notes
The wiring harness is sold separately. Use a fused power feed and check local rules for red and other colored lights before using them on public roads.
What’s included
A set of two 4 inch 360-Series driving lights with a red backlight.
Not included: the wiring harness, which is sold separately.
