Overview

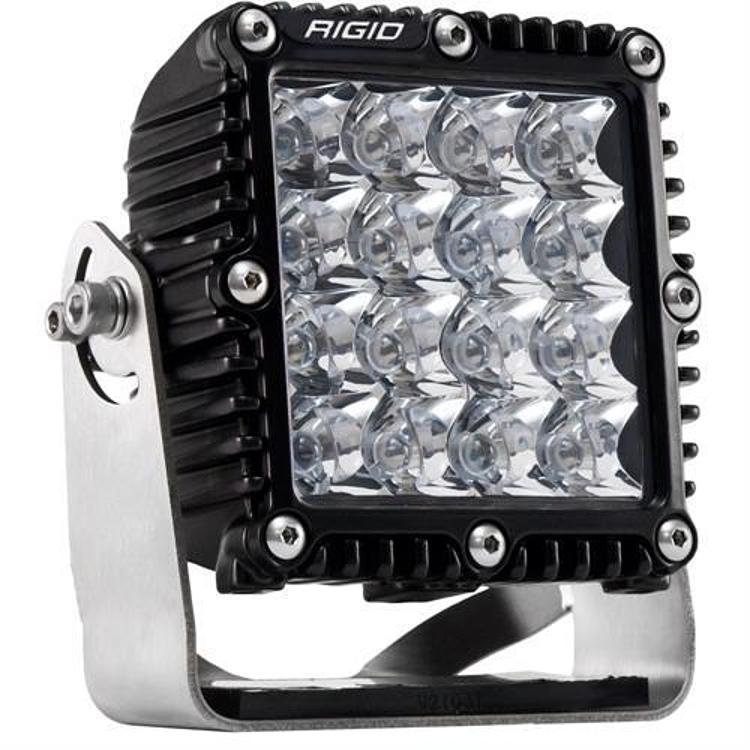

The Rigid Industries Q Series Pro Spot LED Light (part 244213, black) is a 6.7-inch LED spot light rated at 7040 raw lumens from 80 watts. Rigid built the spot version on its Hybrid optics system, combining four Dually / D2 optics into one housing, so the light throws a concentrated beam over long distances. Rigid rates the beam distance at 858m.
The Q Series Pro is built for heavy-duty commercial work, including agriculture, fire and rescue, commercial trucks, marine, off-road and power sports equipment. The spot optic gives a wider beam with less wasted light than many designs while keeping higher center intensity. It suits high-speed driving or any job where reach matters more than width. The light is a stand-alone accessory and is not tied to a particular vehicle.
Key features
- Spot beam pattern for long-distance, concentrated light
- Hybrid optics built from four Dually / D2 optics in one housing

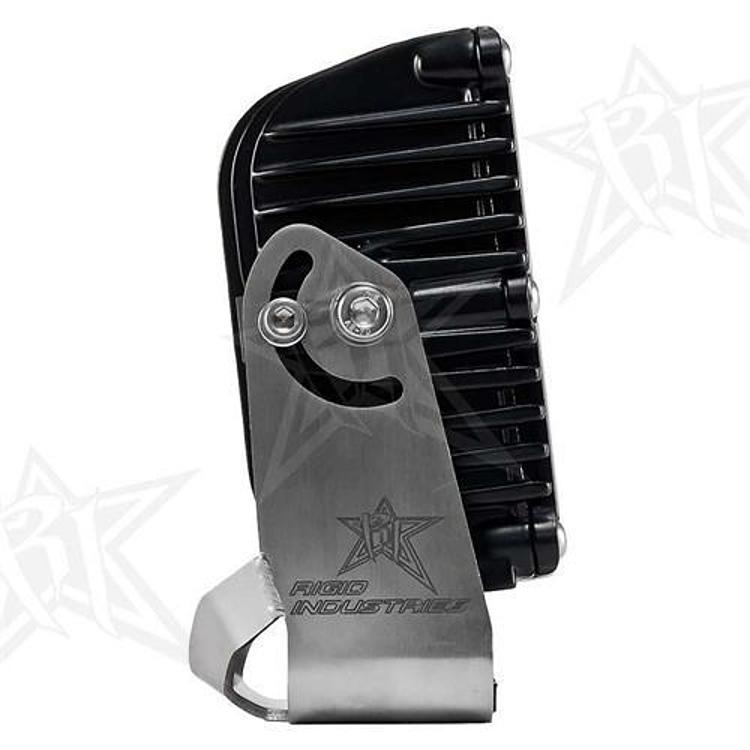

- Vibration isolator and 304 stainless bracket included
- Unbreakable polycarbonate lens
- IP68 certified and MIL810-STDG vibration certified
- Over and under voltage protection
- Rated for a 50,000+ hour lifespan
- Plug and play harness with switch included
Heavy-duty mounting and wiring
A high output spot light on a work vehicle or boat takes constant vibration and weather, so the mounting arrangement matters as much as the light itself. The included bracket and vibration isolator should be installed as a set, and the bracket should be checked for solid contact with the mounting surface. Leaving the isolator out, or fitting it crooked, can pass vibration into the housing and shorten the life of the electronics.
Power wiring deserves the same care. Run the harness through a relay with a fuse sized for the load, and keep the connections sealed against spray and washdown. Clean the lens regularly, since a dirty surface cuts output noticeably on long night jobs. Plan the cable route so the light can be removed for service without pulling on the wire.
- Install the bracket and vibration isolator as a set
- Fuse and relay the power feed
- Clean the lens regularly for full output
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 244213 |
| UPC | 700008505911 |
| Beam pattern | Spot |
| Light source | LED, 16 LEDs |
| Output | 7040 raw lumens |
| Power | 80 watts; 5.80 amp draw |
| Beam distance | 858m |
| Lens | Unbreakable polycarbonate |
| Finish | Black |
| Light shape | Square |

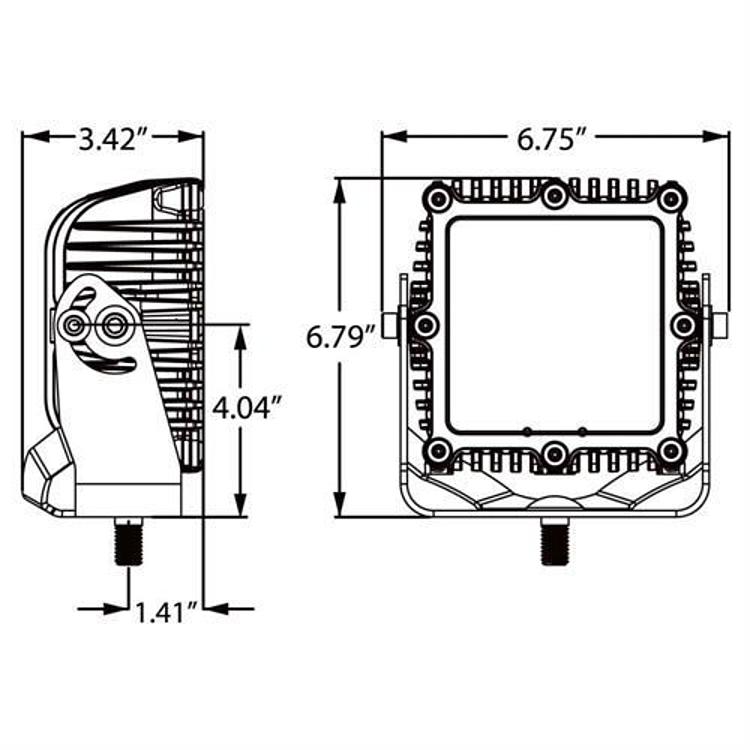

| Size | 6.7 inches; height 6.79 in, width 6.75 in, depth 3.42 in |
| Ratings | IP68; MIL810-STDG vibration certified |
| Lifespan | 50,000+ hours |
| Sold as | Single light |
Vehicle fitment
This is a universal light, not a vehicle-specific part. It is suited to agricultural, rescue, commercial, marine, off-road and power sports applications. Measure the mounting space first: the housing is 6.79 inches tall, 6.75 inches wide and 3.42 inches deep.
Installation notes
The kit includes a plug and play harness with a switch and a mounting bracket with hardware. At a 5.80 amp draw, wire the light through a fused relay, and check local rules before running auxiliary lights on public roads.
What’s included
One Q Series Pro Spot light with a plug and play harness and switch, a mounting bracket with hardware, and a vibration isolator with a 304 stainless bracket. The light is sold individually, so a matched pair needs two purchases.
