Overview

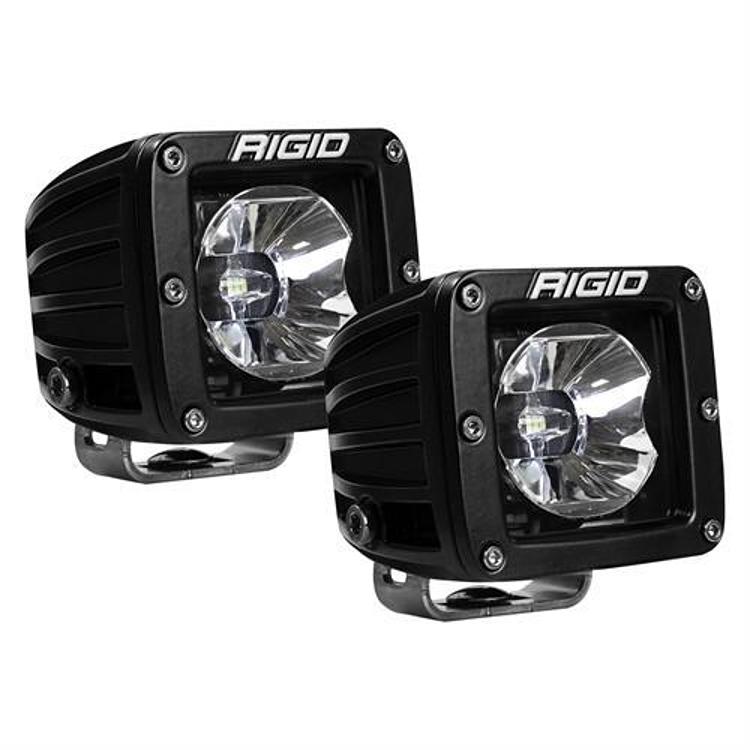

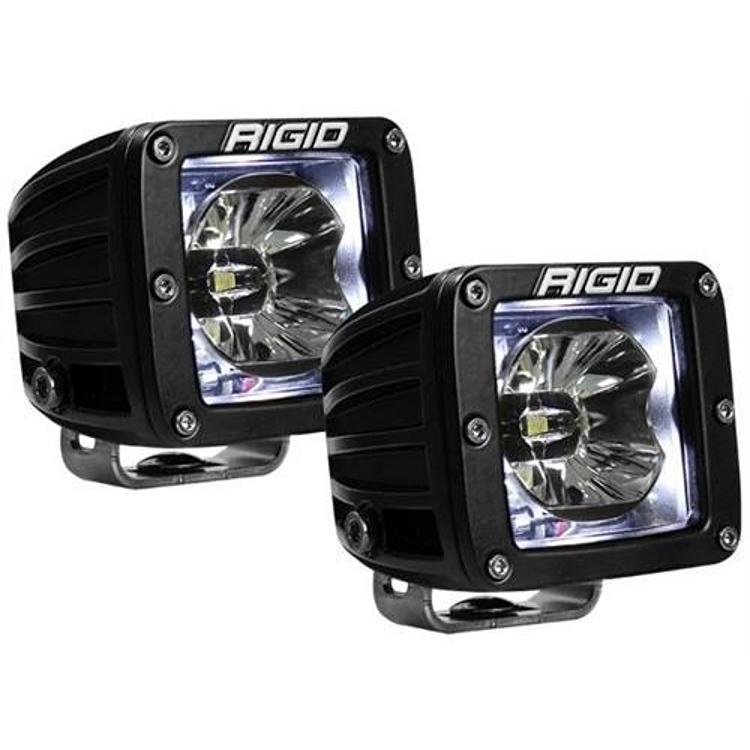

The Radiance White Back-Light Pod, part number 20200, is a 3 inch square black pod with a white back-light that runs separately from the main light. It is a universal pod with no vehicle named for it. The housing uses the same high-grade aluminum alloy as the D-Series lights.
The pod has forward projecting optics for its main light and a white back-light. It is rated at 15 watts, 900 raw lumens and 1 amp draw, with three LEDs. It is IP68 rated, with an alloy housing and heatsink and a high impact polycarbonate lens. It is sold as a pair with mounting brackets included.
Both pods come in each set, so one order covers the pair.
Key features
- White back-light, independently controlled
- Forward projecting optics
- Black exposed printed circuit board
- Alloy housing and heatsink
- IP68 compliant with a high impact polycarbonate lens
Pairing pods with a switch
A back-light pod is most useful when its switch sits where it can be reached without looking, since the light is often used at night or while stopped. A simple rocker or toggle switch in a fused circuit works well, and a separate switch lets the driver run the back-light without the main light. Route the switch wiring so it does not sit on the floor or in a path where feet and cargo can knock it.
White light is a common choice for work and camp use, but local rules on light color and position can differ, so check them before fitting the pods to a vehicle used on public roads. Clean the lens with mild soap and water and avoid harsh solvents, which can cloud the plastic. Inspect the seal around the housing at each service interval to keep the pods weather-resistant.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 20200 |
| UPC | 815711010176 |
| Series | Radiance Pod |
| Back-light | White, independently controlled |
| Housing | 3 inch square, black |
| Mounting | Surface, brackets included |
| Voltage | 9-15 V DC |
| Watts | 15 |
| Amp draw | 1 |
| LEDs | 3 |
| Raw lumens | 900 |
| Waterproof rating | IP68 |
| Beam | Fog |
Vehicle fitment
This universal pod has no year, make or model listed. The surface mount and brackets decide where it can go, so pick a flat spot that suits a 3 inch square housing.
Confirm your vehicle’s year, model and trim before ordering any bracket.
Installation notes
The pod runs on 9 to 15 volts DC and needs a matching fused supply, with a wiring harness fitted to the brackets for a plug in setup.
What’s included
Two Radiance White back-light pods, with mounting brackets.
